Product Model

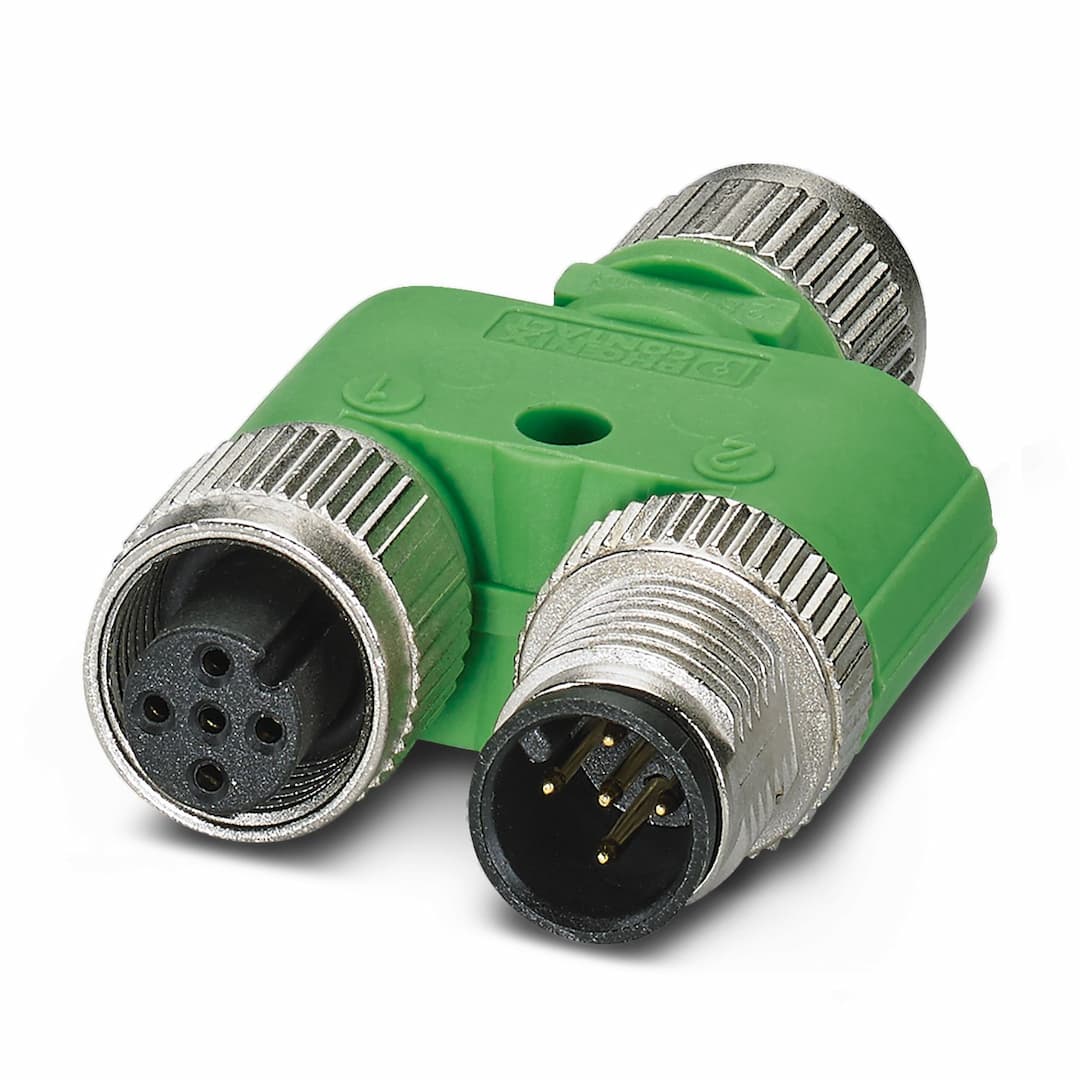

IB L2-M ADAP 1/1 M12
Selling Points
- 1High-Quality M12 Connector: Designed for reliable connections in industrial automation.
- 2IP65/IP67 Protection: Ensures durability in harsh environments.
- 318mm Center Distance: Suitable for molded and unshielded connectors.
- 45-Position A-Coded Connectors: Easy to assemble with QUICKON IDC technology.
- 5Rated Current 4A at 40°C: Supports high current applications with stability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | with center distance of 18 mm, suitable for molded connectors and unshielded connectors that can be assembled with QUICKON IDC terminal block connection technology and a connection range of 0.14 mm² to 0.34 mm² | Product type | Y-distributor |
Number of positions | 5 | No. of cable outlets | 2 |
Shielded | no | Coding | A |
Thread type | M12 | Overvoltage category | II |
Degree of pollution | 3 | Insulation resistance | ≥ 10 GΩ |
Nominal voltage U | 48 V AC
60 V DC | Nominal current I | 4 A |
Status display | no | Status display present | No |
Length | 50.1 mm | Center distance | 18 mm |
Flammability rating according to UL 94 | HB | Seal material | NBR |
Material of grip body | TPU, hardly inflammable, self-extinguishing | Contact material | CuZn |
Contact surface material | Ni/Au | Contact carrier material | TPU GF |
Material for screw connection | Zinc die-cast, nickel-plated | Type | Socket straight M12 |
Coding type | A | Type | Socket straight M12 |
Coding type | A | Type | Plug straight M12 |
Coding type | A | Insertion/withdrawal cycles | ≥ 100 |
Degree of protection | IP65
IP67 | Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
Standard designation | M12 connector | Standards/specifications | IEC 61076-2-101 |
Specifications may be subject to change without notice
