Product Model

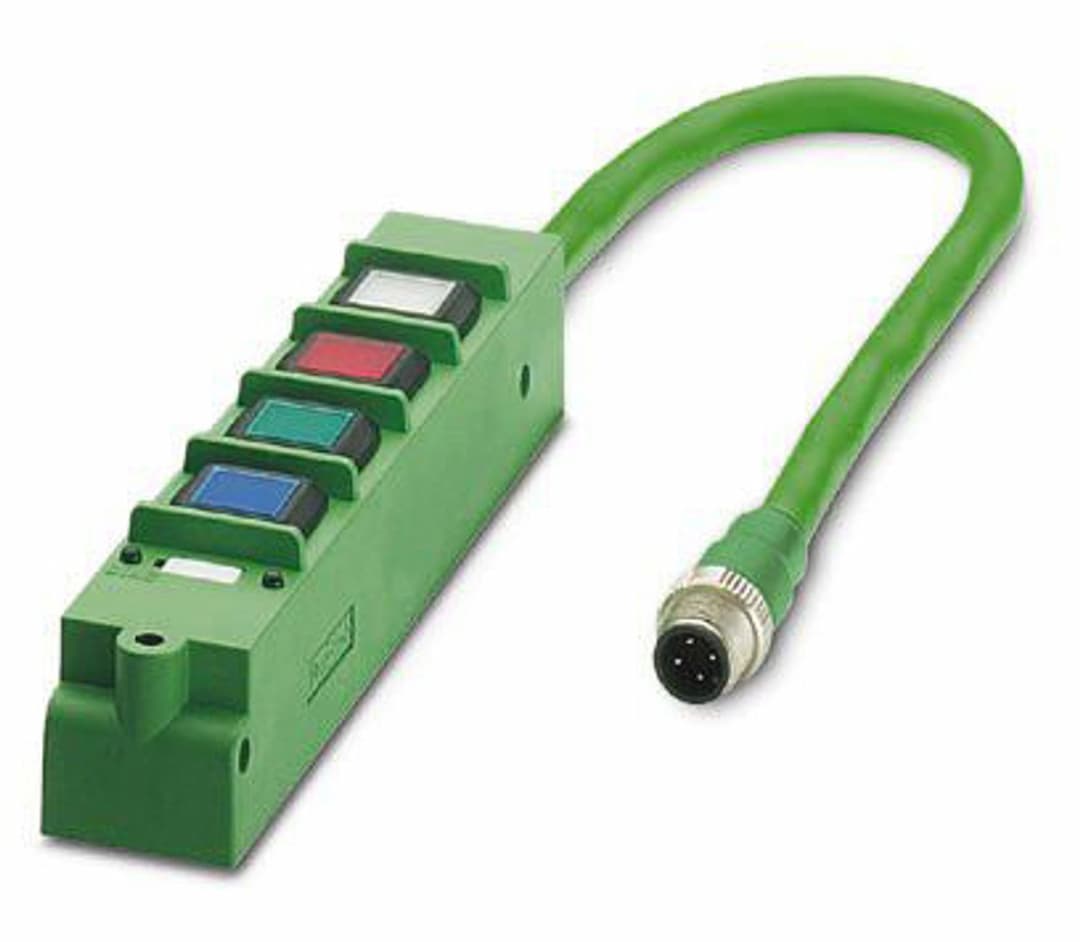

IB L2-M BOX 24 DIO 4/4 BT
Selling Points
- 14 Digital Outputs: Control and monitor your industrial processes with precision.
- 224 VDC Supply: Reliable operation in a wide range of industrial environments.
- 3IP65/67 Protection: Durable and resistant to harsh conditions.
- 4INTERBUS-Loop 2 Connectivity: Seamless integration with existing systems.
- 5Compact Design: Space-efficient for easy installation in control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply voltage | via INTERBUS-Loop 2 | Supply voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ±5 % | Max. current consumption | 100 mA |
Number of inputs | 4 | Number of outputs | 4 |
Connection method | an M12 plug | Width | 26 mm |
Height | 26 mm | Length | 139 mm |
Color | green |
Specifications may be subject to change without notice
