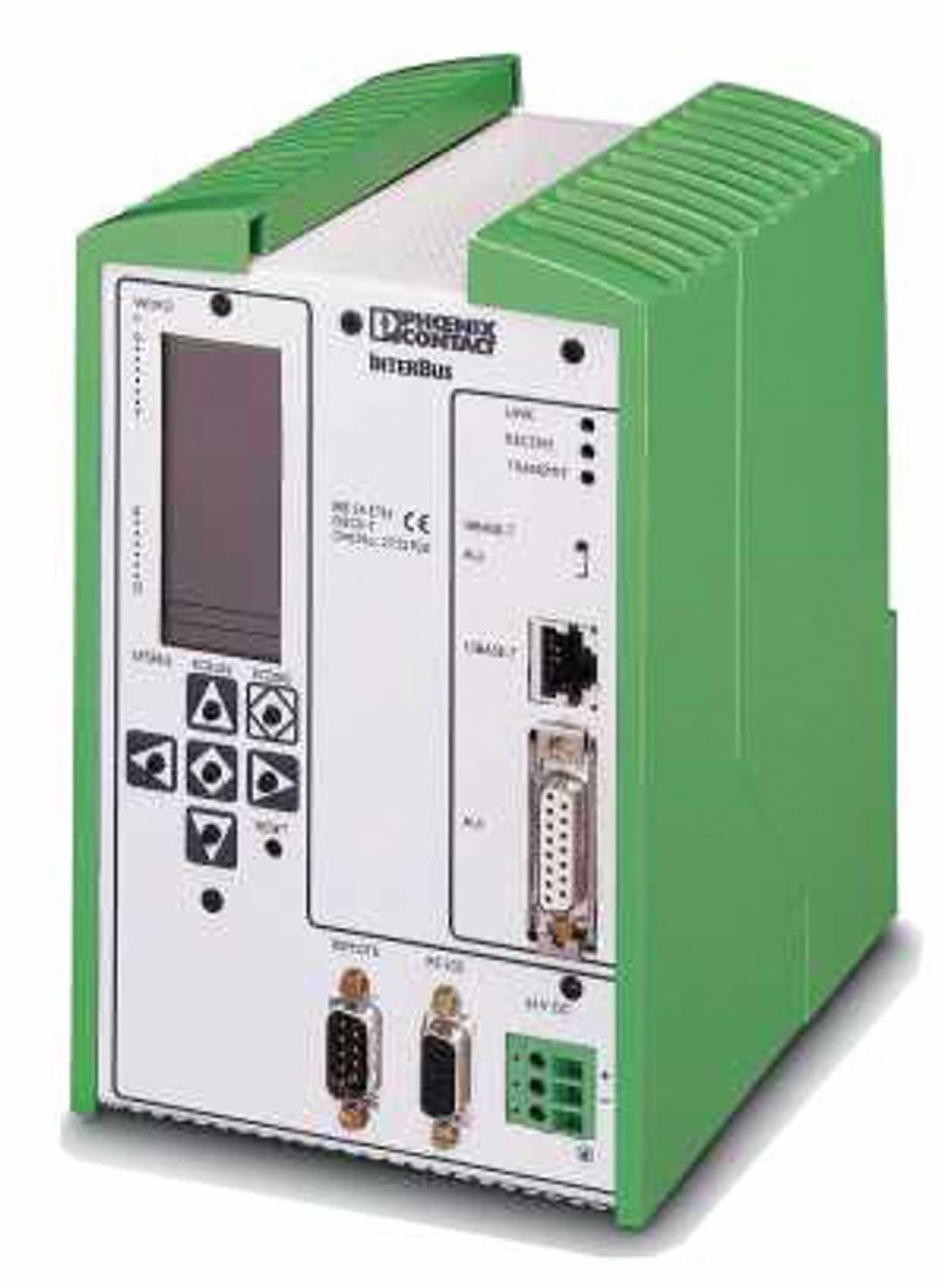

Phoenix Contact IBS 24 ETH DSC/I-T

Selling Points

  • 1Advanced Ethernet Coupler: Supports INTERBUS Ethernet with electrical isolation for secure data transmission.
  • 2High Performance: Generation 4 design ensures reliable and efficient operation in industrial environments.
  • 3Versatile Connectivity: Compatible with RS-232-C and D-SUB connectors, as well as optical fiber via interface converters.
  • 4Robust Design: IP20 degree of protection, suitable for harsh industrial settings.
  • 5Easy Integration: Compatible with PLCs and machine control systems via Ethernet (TCP/IP) and sockets interface.
Product Details
IBS 24 ETH DSC/I-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Type
Stand-Alone
Set comprises
2724148 IBS 24 ETH DSC SYSKIT E 2724135 IBS 24 ETH DSC SYSKIT
Number of devices with parameter channel
max. 126 (512 words)
Designation
LINK, RECEIVE, TRANSMIT
Monitored function
Higher-level network
Optical representation
Status display via LED
Configuration tool
CMD from version 4.5x
Diagnostics tool
DIAG+ from version 1.14
Local diagnostics
LINK, RECEIVE, TRANSMIT Higher-level network Status display via LED FCRUN, FCDBG IEC 61131 runtime system LCD arrows: FCRUN, FCDBG INTERBUS Via four-line LCD
Transmission medium
Copper
Supply voltage
5 V DC
Supply voltage range
20 V DC ... 30 V DC (including ripple)
Power supply connection
DFK screw terminal block
Max. current consumption
1.7 A (at 20 V)
Connection method
9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation
Transmission length
165 mm
Connection method
RS-232-C, D-SUB 9-pos. male connector
Connection method
Computer and control systems via Ethernet with TCP/IP protocol and sockets interface, direct twisted pair connection (10BASE-T) via RJ45 and medium-independent AUI interface, 15-pos. socket (to be connected to Ethernet transceiver via drop cable)
Width
135 mm
Height
165 mm
Depth
170 mm
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 55 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Permissible humidity (operation)
75 % (non-condensing)
Mounting type
DIN rail mounting
