Product Model

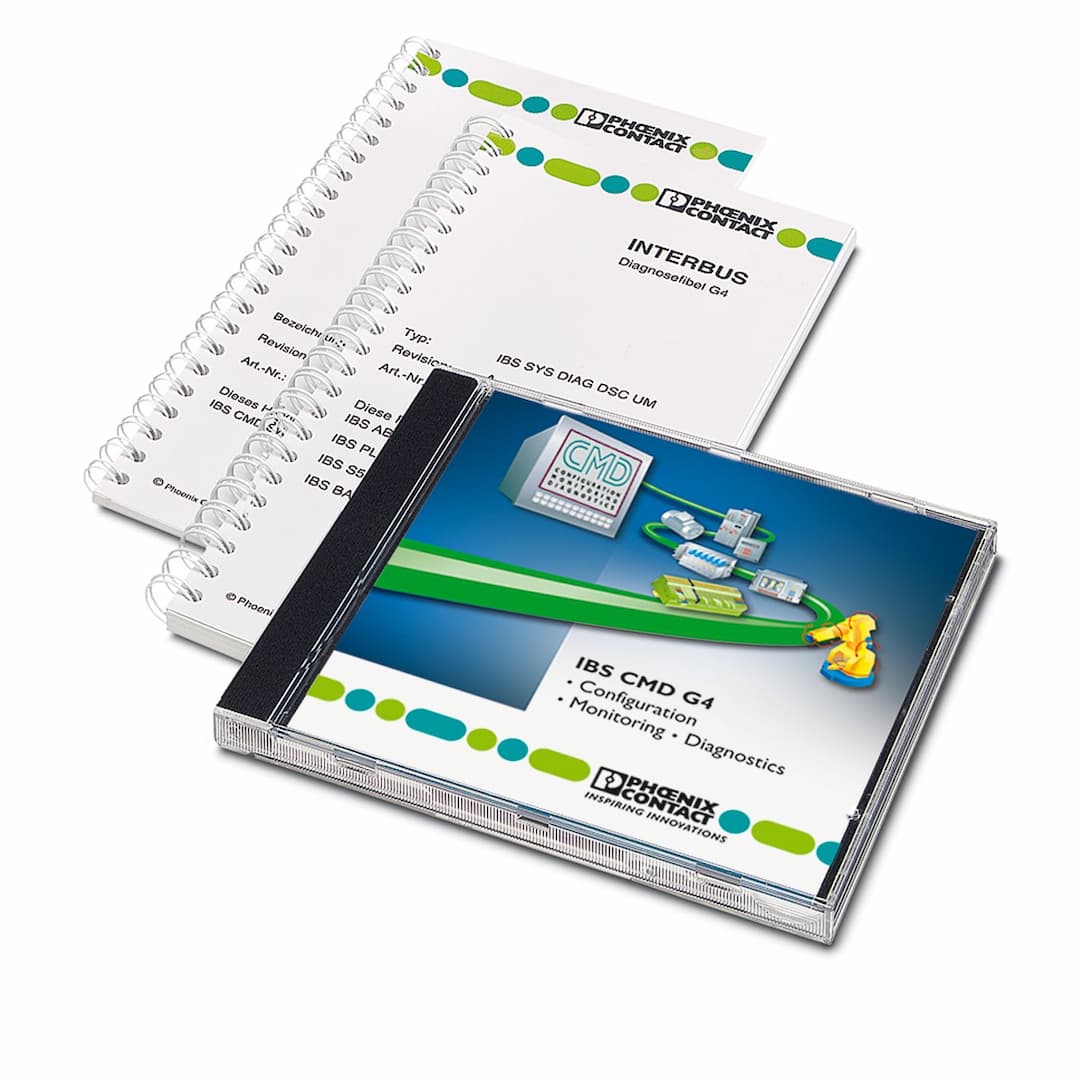

IBS CMD SWT G4 SO 4.50 E
Selling Points
- 1Works seamlessly with INTERBUS Generation 4 systems.
- 2Ensures flexibility in operation and diagnostics.
- 3Supports program expansions and new functions.
- 4Provides detailed information on bus status, error causes, and remedies.
- 5Easy to operate with a familiar interface, making it accessible for all users.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Order information: | CMD is also available in English, French, Spanish, Portuguese (Brazilian). | Product type | Configuration and diagnostics |
Intended use for the software | Configuration
Diagnostics
Data acquisition
Communication
Startup
Maintenance
DIN EN 61131-3 compliant
Security | Type of license | Single-user license |
Basic functions | Executing important commands (start/stop/...)
Reading in the installed bus structure
Detecting/representing error states (plain text from knowledge database)
Saving diagnostics data in flash memory or parameterizing memory of the controller board
Diagnostics of INTERBUS FO paths (transmission quality)
Configuration comparison of Ethernet topologies (parameterized with real topology)
Reading out the Controller Diagnose Archive | Associated hardware | 4th generation INTERBUS controller boards, PROFINET controller (Phoenix Contact only) |
Supported controllers | INTERBUS generation 4 controller boards, PROFINET controller (Phoenix Contact only) | Number of I/O nodes | not relevant |
Operating system | Windows® NT 4.0 SP6
Windows® 2000
Windows® XP | Processor | Min. 80486/ 33 MHz |
Hard disk memory | 62 Mbyte | RAM | > 10 Mbyte |
Interfaces | Free serial interface for online connection | Languages supported | English |
Optical drive | CD-ROM | Screen resolution | SVGA mit min. 800 x 600 |
Specifications may be subject to change without notice
