Product Model

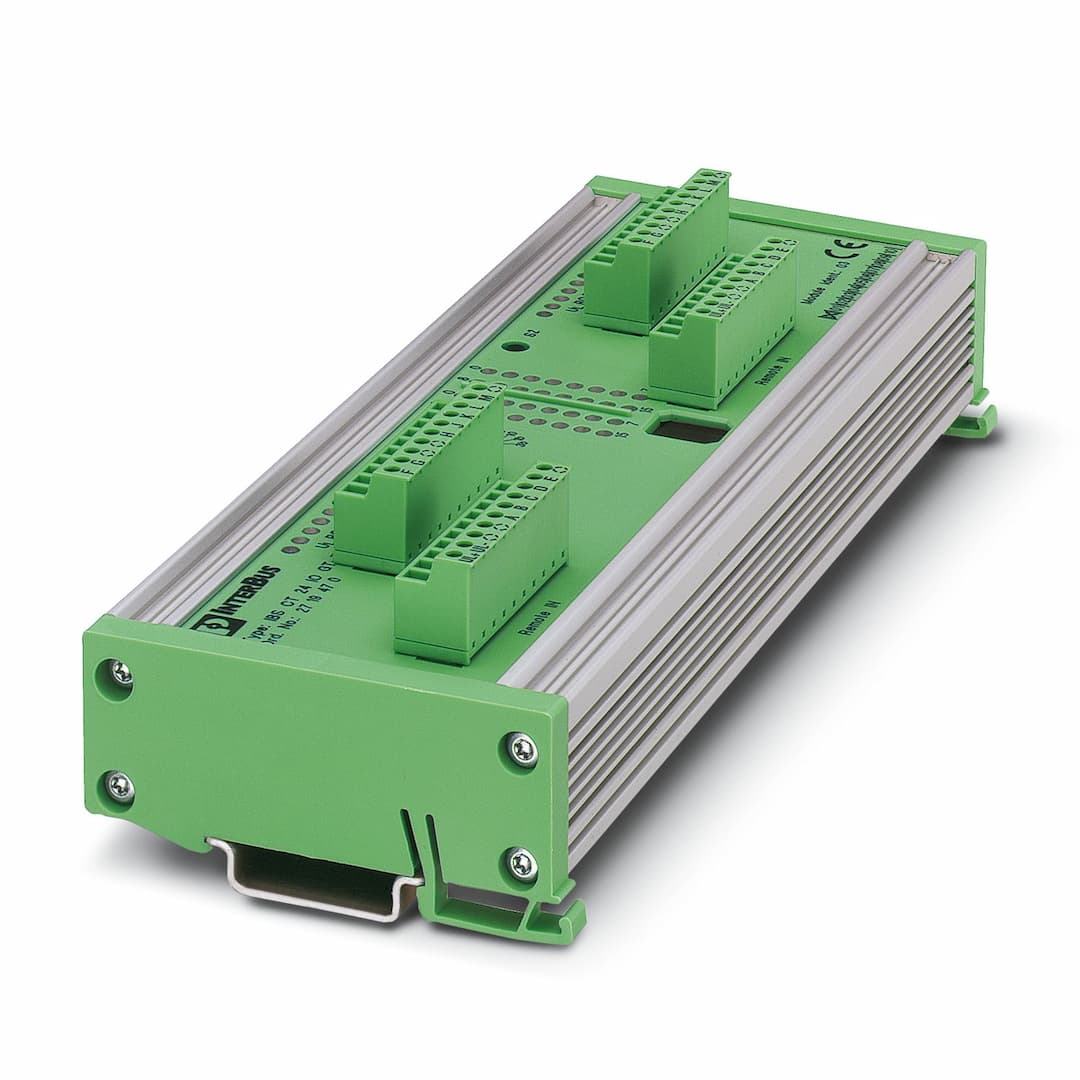

IBS CT 24 IO GT-T/NPF
Selling Points
- 1Ensures safe data transfer between INTERBUS systems with 500 V AC isolation.
- 2Sixteen status LEDs display signal states for easy troubleshooting.
- 3Easy installation in automation enclosures with DIN rail mounts.
- 4Supports 500 kbps transmission speed for fast data transfer.
- 5Provides a redundant supply of 24 V DC power for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Gateways/Proxies | Type | Block design |
Test section | Supply voltage/logics 500 V AC 50 Hz 1 min
Supply voltage/functional ground 500 V AC 50 Hz 1 min
Logic/functional ground 500 V AC 50 Hz 1 min
INTERBUS system 1/INTERBUS system 2 500 V AC 50 Hz 1 min | Protective circuit | Reverse polarity protection; Serial diode
Surge protection (35 V for 0.5 s) |
Power dissipation | 5 W | Supply voltage (DC) | 24 V DC |
Supply voltage range | 20 V DC ... 30 V DC | Residual ripple | 3.6 V |
Typical current consumption | 240 mA | Connection method | 10-pos. MINI-COMBICON connector |
Transmission speed | 500 kbps | Width | 204 mm |
Height | 77 mm | Depth | 37 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 70 °C |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
