Product Model

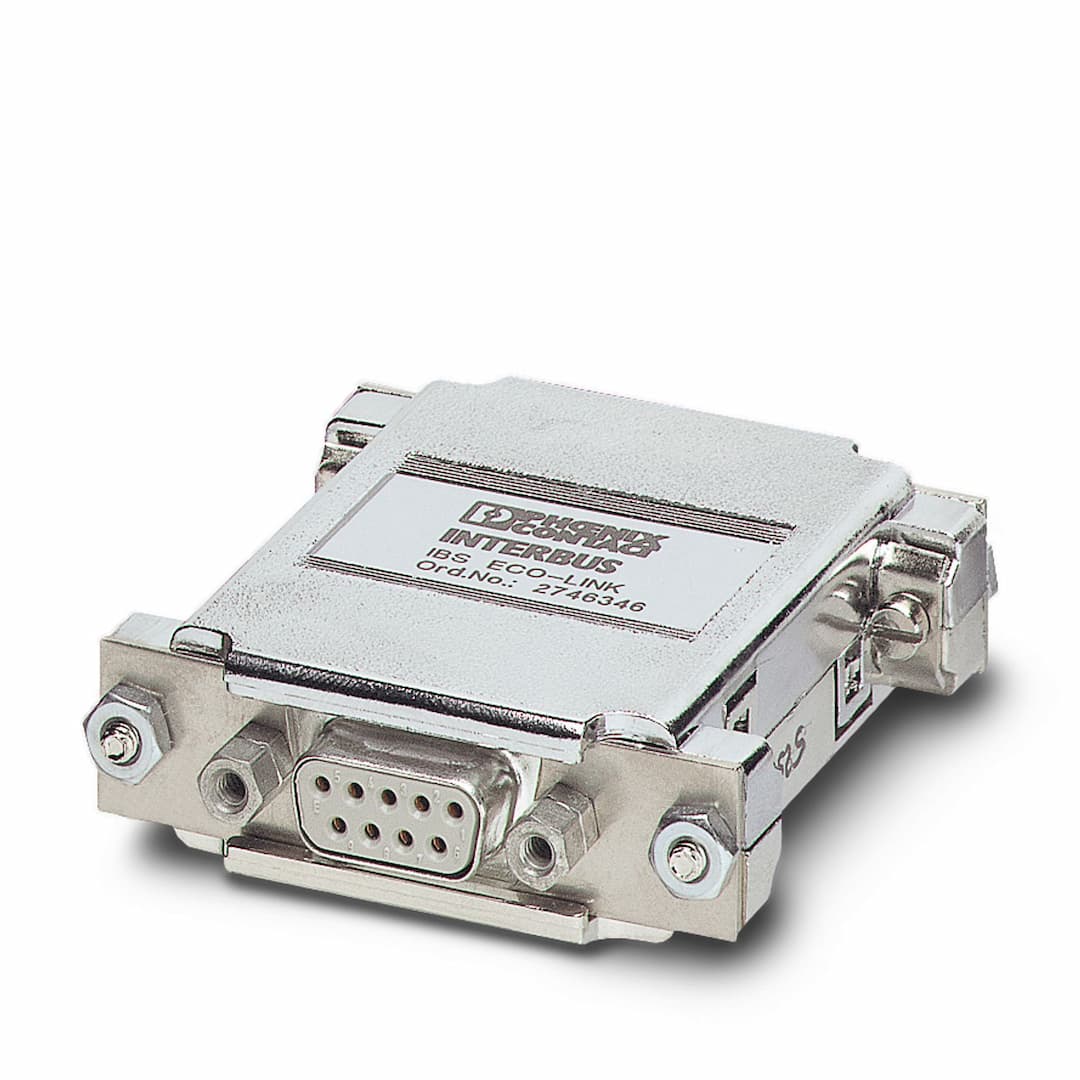

IBS ECO-LINK
Selling Points
- 1Inexpensive Solution: Offers easy handling for simple control tasks at a lower cost.
- 2Immediate Success: Provides almost immediate success with signals of peripherals available in the PC without great effort.
- 3Versatile Application: Suited for startup and servicing purposes, measurement value acquisition, and control of uncomplicated machines and small systems.
- 4Driver Software Included: Comes with driver software for Windows and DOS, along with sample programs and monitors.
- 5Easy Integration: Connected to the serial interface of the PC, making it dependent on the type of processor used and its workload.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Master module | Control system | All computer systems with a serial interface |
Operating system | Windows 2000
Windows 95/98
Windows NT
Windows XP
DOS | Number of parameter data | 62 Byte (in preparation) |
Number of devices with parameter channel | 62 | Type | INTERBUS master |
Optical representation | Operating status LED (power supply, V.24 communication) | Protocol chip | IBS-UART |
Control system | All computer systems with a serial interface | Application interface | ECO-LINK API |
Driver | Windows 2000
Windows 95/98
Windows NT
Windows XP
DOS | Local diagnostics | Operating status LED (power supply, V.24 communication) |
Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 0.55 W |
Supply voltage | 5 V DC 5 % | Power supply connection | 3-pos. circular connector, via external voltage supply |
Typical current consumption | typ. 110 mA (all inputs static, outputs unused) | Number of inputs | 0 |
Input frequency | 0 kHz | Number of pulse direction outputs | 0 |
Limit frequency | 0 kHz | User interface | V.24, 1 start bit, 2 stop bits, 8 data bits, even parity, max. baud rate: 115.2 kbps |
Connection method | Serial interface (V.24), data backup, parity (even) | Transmission speed | max. 115,2 kBit/s |
Connection method | 9-pos. D-SUB socket | Transmission speed | 500 kbps / 2 Mbps2 Mbps (can be switched) |
Connection method | Socket driver, diagnostics LED | Width | 18 mm |
Height | 56 mm | Depth | 65 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % (95 % infrequently, non-condensing) |
Permissible humidity (storage/transport) | 5 % (95% infrequently, no condensation) | Air pressure (operation) | 860 hPa ... 1080 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 860 hPa ... 1080 kPa (up to 3000 m above sea level) | Mounting type | In the host system |
Specifications may be subject to change without notice
