Product Model

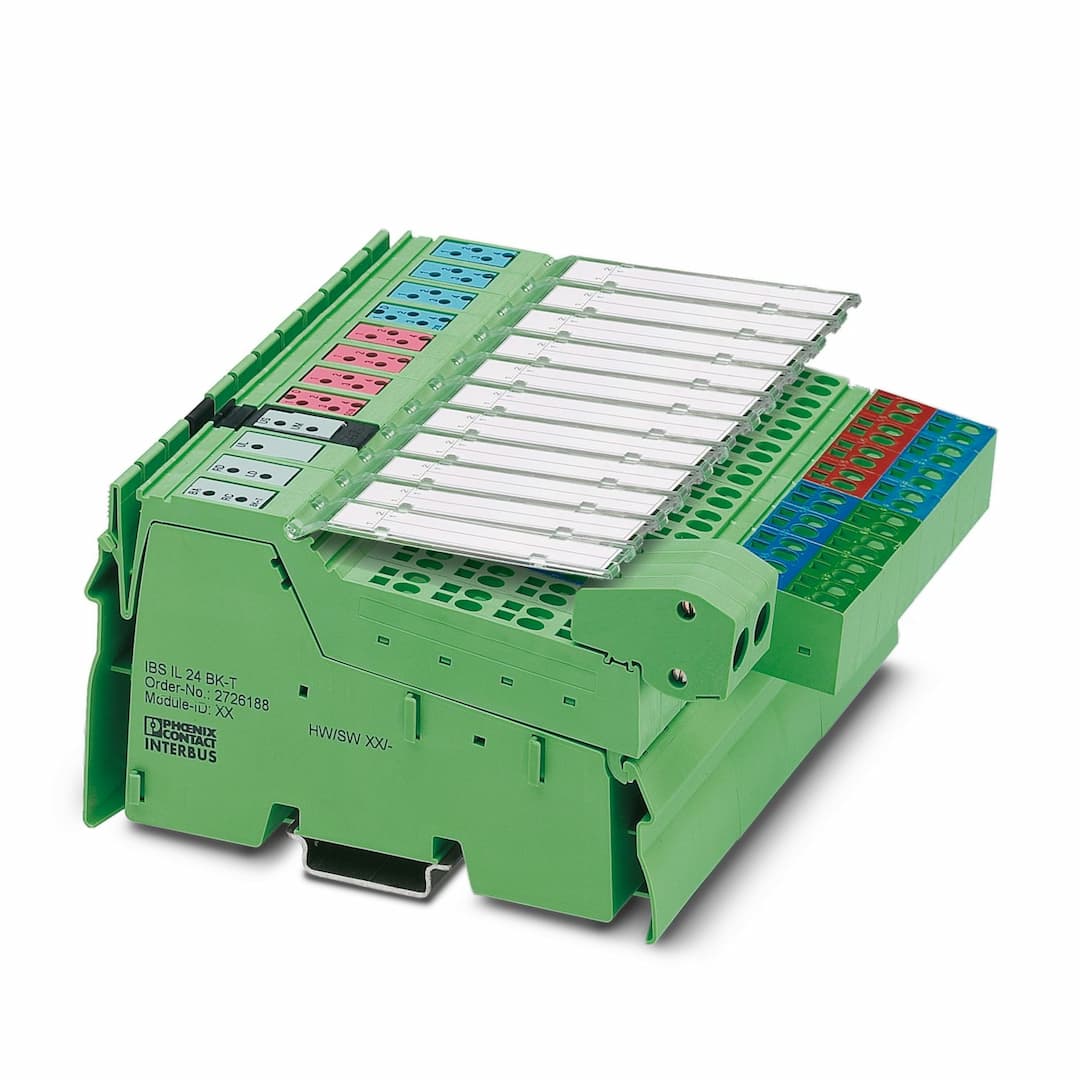

IBS IL 24 BK DIO 16/16/SN
Selling Points
- 1High-Performance Interconnection: Connects 16 digital inputs and outputs with 24 V DC.
- 2Compact Design: Inline shield connector for reliable and space-efficient installation.
- 3Digital Signal Handling: Handles digital signals with precision and reliability.
- 4Industrial Grade: Built for the demands of industrial automation and control systems.
- 5Easy Integration: Compatible with various INTERBUS systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 146.4 mm | Height | 140.5 mm |
Depth | 71.5 mm | Color | green |
No. of channels | 2 | Connection method | Inline shield connector |
Number of positions | 6 | Transmission speed | 500 kbps |
Transmission physics | Copper | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Number of local bus devices that can be connected | 63 (observe total permissible current consumption) |
Number of supported branch terminals with remote bus branch | max. 15 | ID code (hex) | 4 |
Register length | 32 bit | Input name | Digital inputs |
Description of the input | EN 61131-2 type 1 | Number of inputs | max. 16 |
Connection method | Spring-cage connection | Input voltage | 24 V DC |
Output name | Digital outputs | Connection method | Spring-cage connection |
Connection technology | 2-, 3-conductor | Number of outputs | 16 |
Output voltage | 24 V DC | Product type | I/O component |
Product family | Inline | Type | modular |
No. of channels | 32 | Maximum power dissipation for nominal condition | 12 W |
Protective circuit | Reverse polarity protection | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks (24 V DC supply))
typ. 100 mA (without connected Inline I/O terminals) |
Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: 5 V supply, incoming remote bus / 5 V supply outgoing remote bus | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply incoming remote bus / 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, incoming remote bus / 24 V main supply, 24 V segment supply | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply incoming remote bus / functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply outgoing remote bus / communications power (U | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply outgoing remote bus / I/O (U | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply outgoing remote bus / functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply / 24 V main supply, 24 V segment supply | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V main supply, 24 V segment supply/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Permissible humidity (operation) | 95 % (non-condensing) | Permissible humidity (storage/transport) | 95 % (non-condensing) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
