Product Model

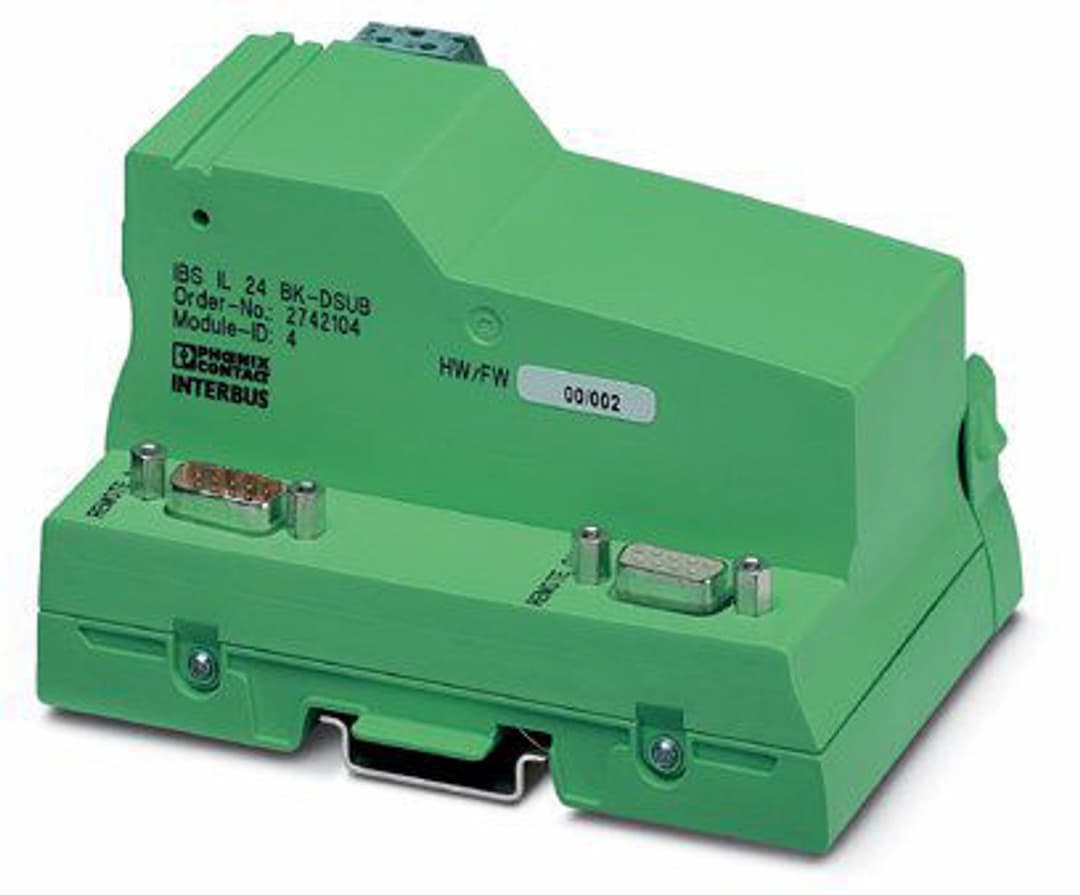

IBS IL 24 BK-DSUB
Selling Points
- 1Connects Inline stations to INTERBUS remote buses.
- 2Provides supply voltages for connected devices.
- 3Ensures reliable data transmission at 500 kbps.
- 4Features electrical isolation for safe operation.
- 5Compliant with environmental regulations like REACh and China RoHS.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Number of devices with parameter channel | 63 |
Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 04 |
ID code (hex) | 04 | Length code (hex) | 00 |
Length code (dec) | 00 | Process data channel | 0 bit |
Input address area | 0 Byte | Output address area | 0 Byte |
Protective circuit | Reverse polarity protection | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks)
typ. 100 mA (without connected Inline I/O terminals) |
Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.09 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.09 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | D-SUB-9 female/D-SUB-9 male |
Transmission speed | 500 kbps | Transmission physics | Copper |
Connection method | Inline data jumper | Connection method | 8-pos. Inline connector |
Width | 85 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
