Product Model

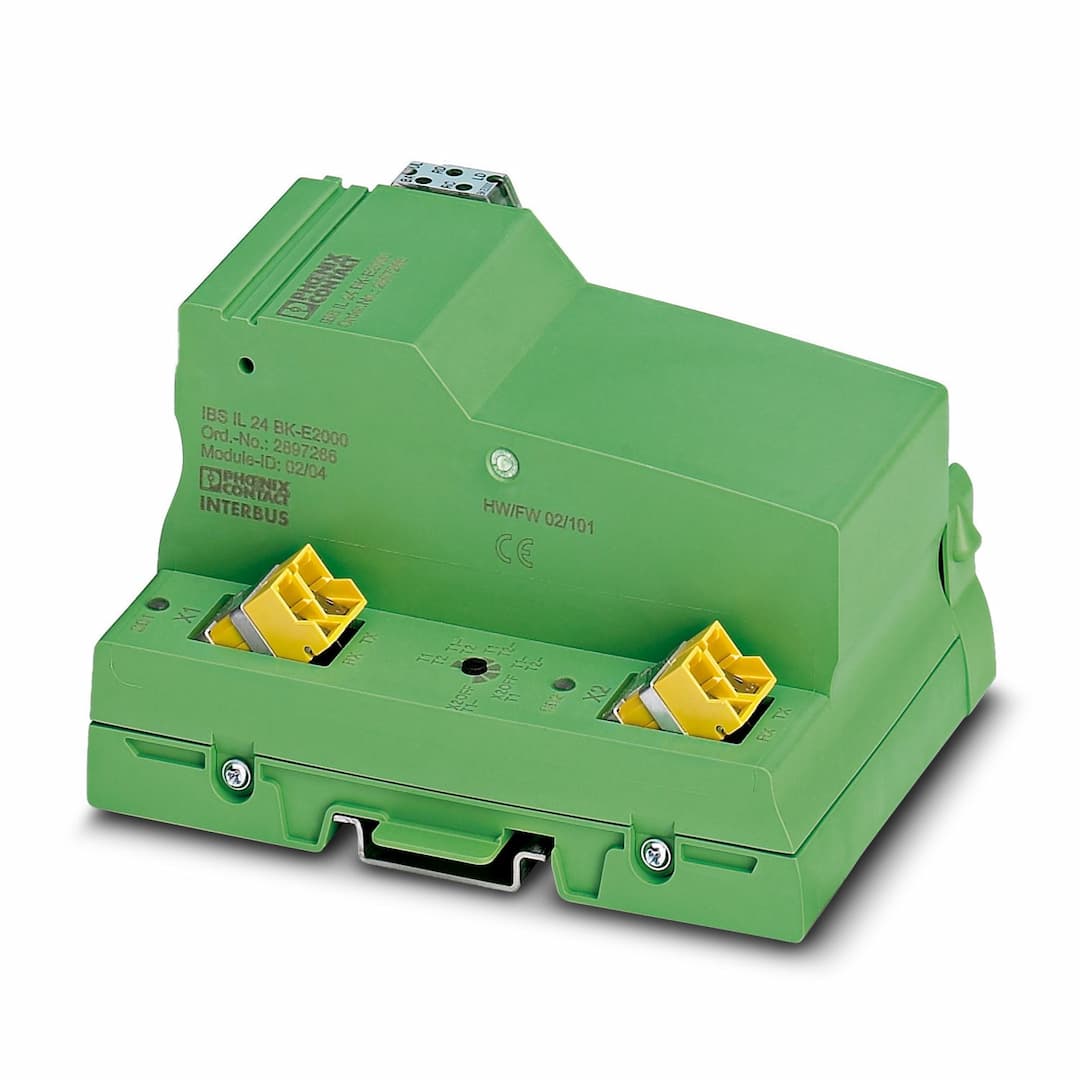

IBS IL 24 BK-E2000-PAC
Selling Points
- 1Connects Inline stations to the INTERBUS remote bus seamlessly.
- 2Enables real-time monitoring of the optical path for enhanced reliability.
- 3Dimensions: 90 mm width, 119.8 mm height, 71.5 mm depth, ensuring space efficiency.
- 4Utilizes E2000 connectors for secure and reliable remote bus connections.
- 5Supports transmission speeds of up to 500 kbps in the local bus.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 90 mm | Height | 119.8 mm |
Depth | 71.5 mm | No. of channels | 2 |
Connection method | E2000 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Number of local bus devices that can be connected | max. 63 |
Number of devices with parameter channel | max. 63 | Number of supported branch terminals with remote bus branch | 0 |
ID code (dec.) | 02 | ID code (hex) | 02 |
Length code (hex) | 01 | Length code (dec) | 01 |
Process data channel | 16 bit | Input address area | 2 Byte |
Output address area | 0 Byte | Register length | 0 bit |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Maximum power dissipation for nominal condition | 23 W | Protective circuit | Reverse polarity protection |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 960 mA (with max. number of connected I/O terminal blocks)
typ. 60 mA (without connected Inline I/O terminals) | Supply voltage | 7.5 V DC ±5 % |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 1000 V DC, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa | Air pressure (storage/transport) | 70 kPa ... 106 kPa |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % |
Permissible humidity (storage/transport) | 10 % ... 95 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
