Product Model

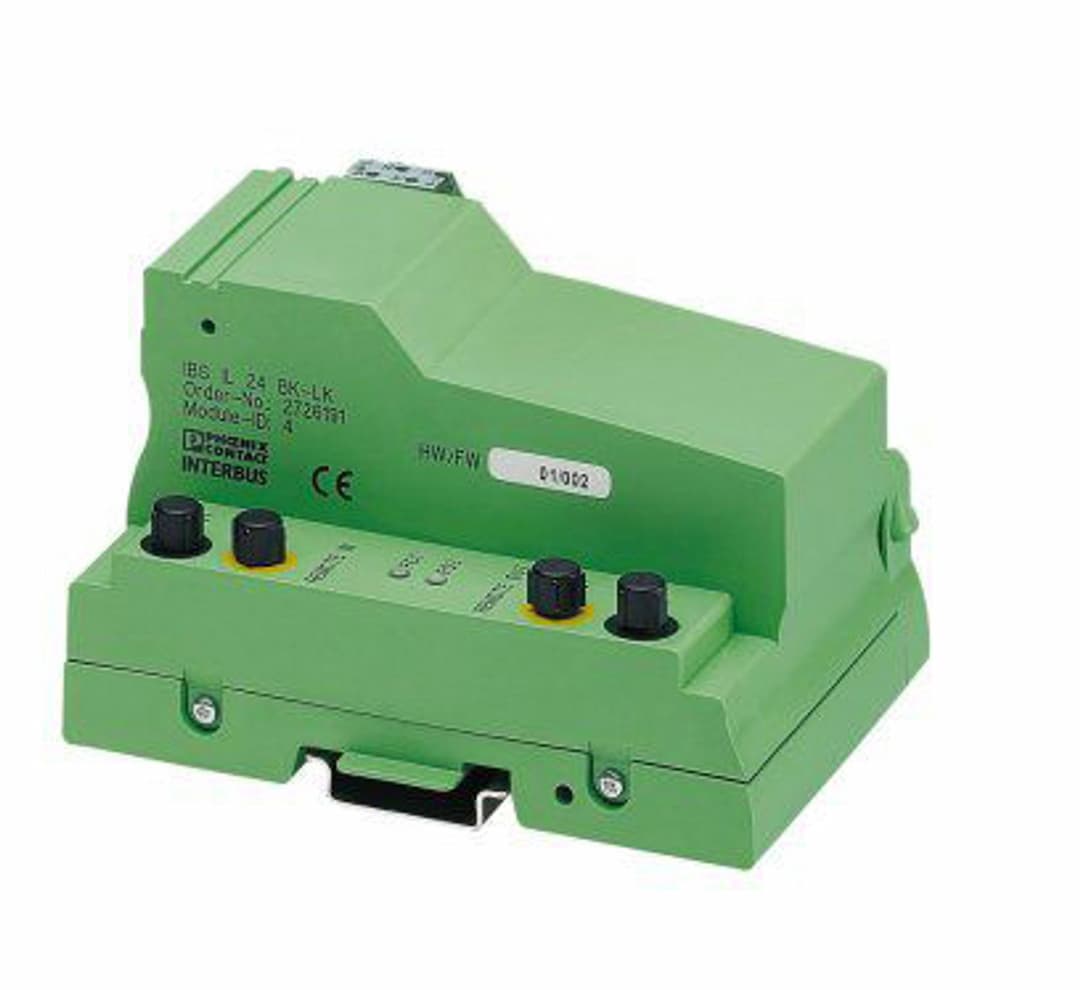

IBS IL 24 BK-LK
Selling Points
- 1High-Speed Fiber Optic Connection: Connects devices at 500 kbps for efficient data transfer.
- 2Robust Design: Built with a durable DIN rail mounting type and IP20 degree of protection for harsh environments.
- 3Compliance with Industry Standards: Meets CUL and UL standards, ensuring safety and reliability.
- 4Optical Path Diagnostics: Includes features for remote bus connections using fiber optic technology.
- 5Versatile Power Supply: Supports 24 V DC supply voltage with a range of 19.2 V DC to 30 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Number of devices with parameter channel | 63 |
Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 04 |
ID code (hex) | 04 | Length code (hex) | 00 |
Length code (dec) | 00 | Process data channel | 0 bit |
Input address area | 0 Byte | Output address area | 0 Byte |
Protective circuit | Reverse polarity protection | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks) |
Supply voltage | 7.5 V DC | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
No. of channels | 2 | Connection method | F-SMA connector |
Number of positions | 2 | Transmission speed | 500 kbps |
Transmission physics | FO | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Connection method | 8-pos. Inline connector |
Width | 85 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Ambient temperature (operation) | -25 °C ... 55 °C | Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
