Product Model

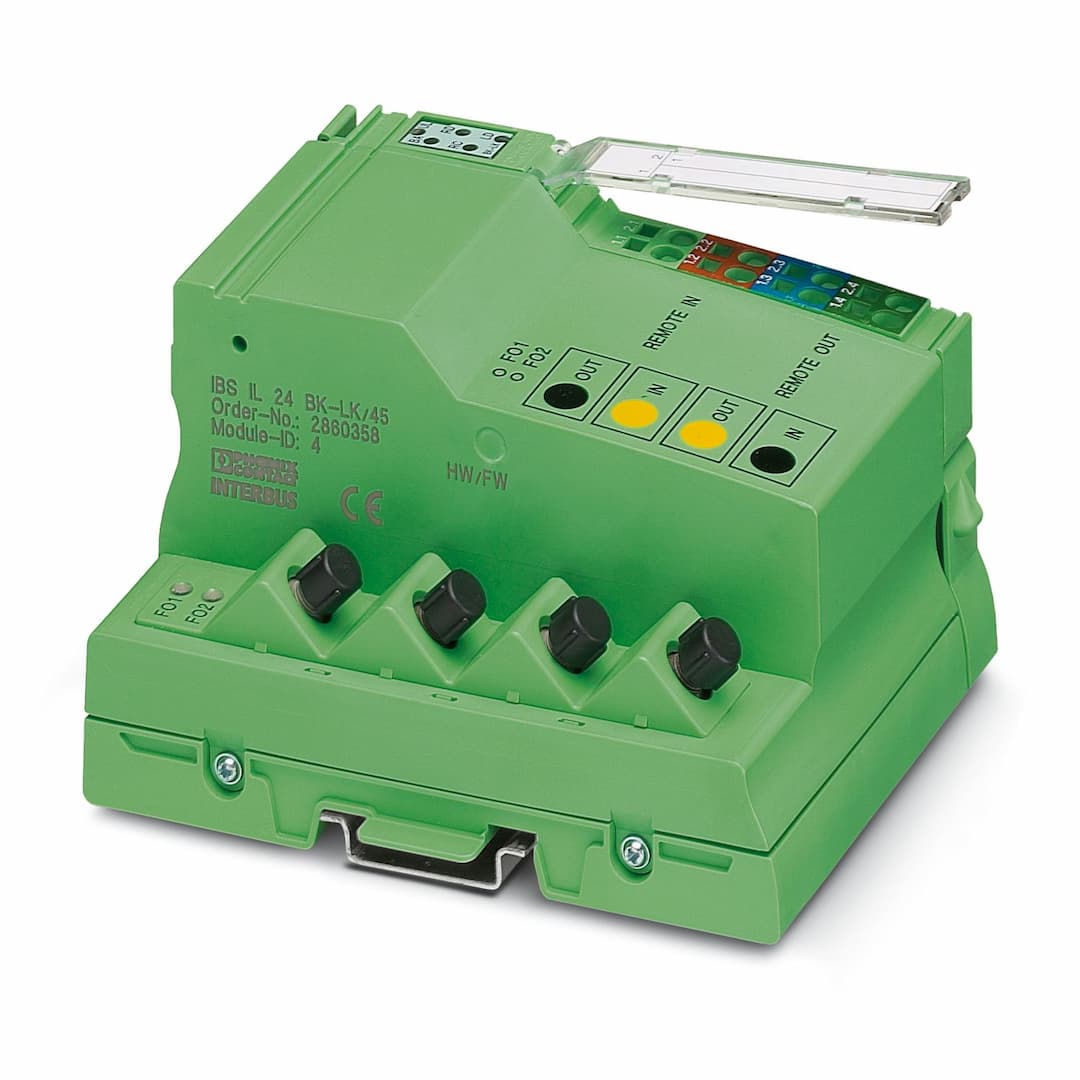

IBS IL 24 BK-LK/45-2MBD-PAC
Selling Points
- 1High-Speed Data Transfer: Supports transmission speeds of up to 2 Mbaud for efficient data transfer.
- 2Fiber Optic Connection: Features a fiber optic connection at an angle of 45° for enhanced connectivity.
- 324 V DC Supply: Operates on a stable 24 V DC supply voltage, ensuring reliable performance.
- 4IP20 Degree of Protection: Offers a degree of protection IP20, suitable for various industrial environments.
- 5Compact Design: Designed with a compact form factor, ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 85 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Number of interfaces | 2 | Connection method | F-SMA connector |
Note on the connection method | slanted | Transmission speed | 2 Mbps |
Transmission physics | FO | Number of interfaces | 1 |
Connection method | Inline data jumper | Transmission speed | 2 Mbps |
Number of local bus devices that can be connected | 63 | Number of devices with parameter channel | 62 |
Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 04 |
ID code (hex) | 04 | Length code (hex) | 00 |
Length code (dec) | 00 | Process data channel | 0 bit |
Input address area | 0 Byte | Output address area | 0 Byte |
Register length | 0 bit | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Protective circuit | Reverse polarity protection |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks)
typ. 90 mA (without connected Inline I/O terminals) | Supply voltage | 7.5 V DC ±5 % |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.09 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.09 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.09 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.09 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
