Product Model

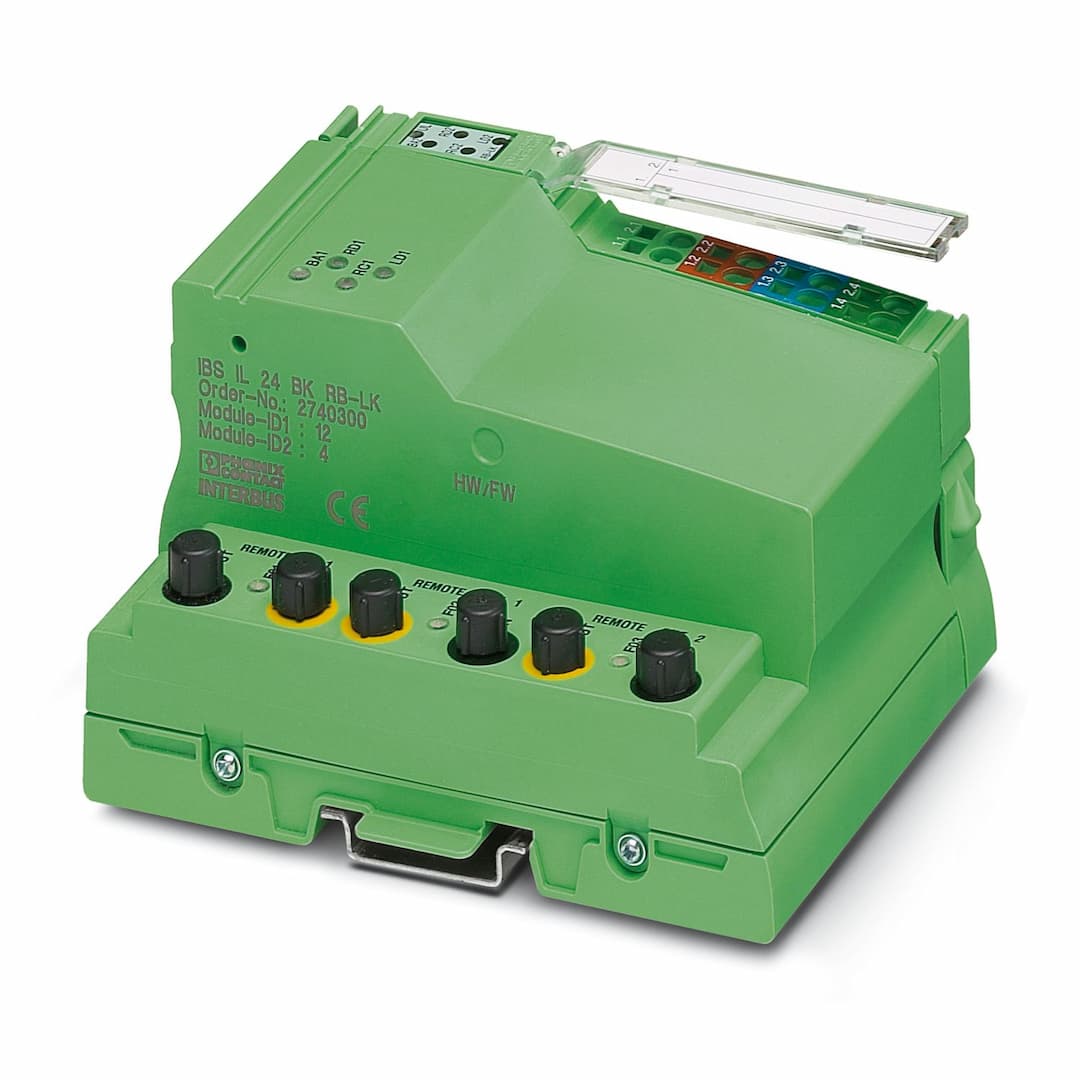

IBS IL 24 BK RB-LK-PAC
Selling Points
- 1Fiber Optic Technology: Utilizes fiber optic connections for remote bus connections.
- 2Optical Path Diagnostics: Provides optical path diagnostics for enhanced reliability.
- 3High Connectivity: Supports up to 63 local bus devices and 15 branch terminals.
- 4Durable Design: Meets IP20 degree of protection and operates within -25°C to 55°C.
- 5Versatile Power Supply: Offers 24 V DC supply voltage with a range of 19.2 V DC to 30 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 85 mm | Height | 119.8 mm |
Depth | 71.5 mm | Number of interfaces | 3 |
Connection method | F-SMA connector | Transmission speed | 500 kbps |
Transmission physics | FO | Number of interfaces | 1 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | FO | Number of local bus devices that can be connected | max. 63 |
Number of devices with parameter channel | 62 | Number of supported branch terminals with remote bus branch | max. 15 |
ID code (dec.) | 12 | ID code (hex) | 0C |
Length code (hex) | 0 | Length code (dec) | 0 |
Process data channel | 0 bit | Input address area | 0 Byte |
Register length | 0 bit | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Special properties | integrated remote bus branch |
Article revision | 07 | Maximum power dissipation for nominal condition | 31.2 W |
Protective circuit | Reverse polarity protection | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.3 A (with max. number of connected I/O terminal blocks)
typ. 120 mA (without connected Inline I/O terminals) |
Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting type | DIN rail mounting |
