Product Model

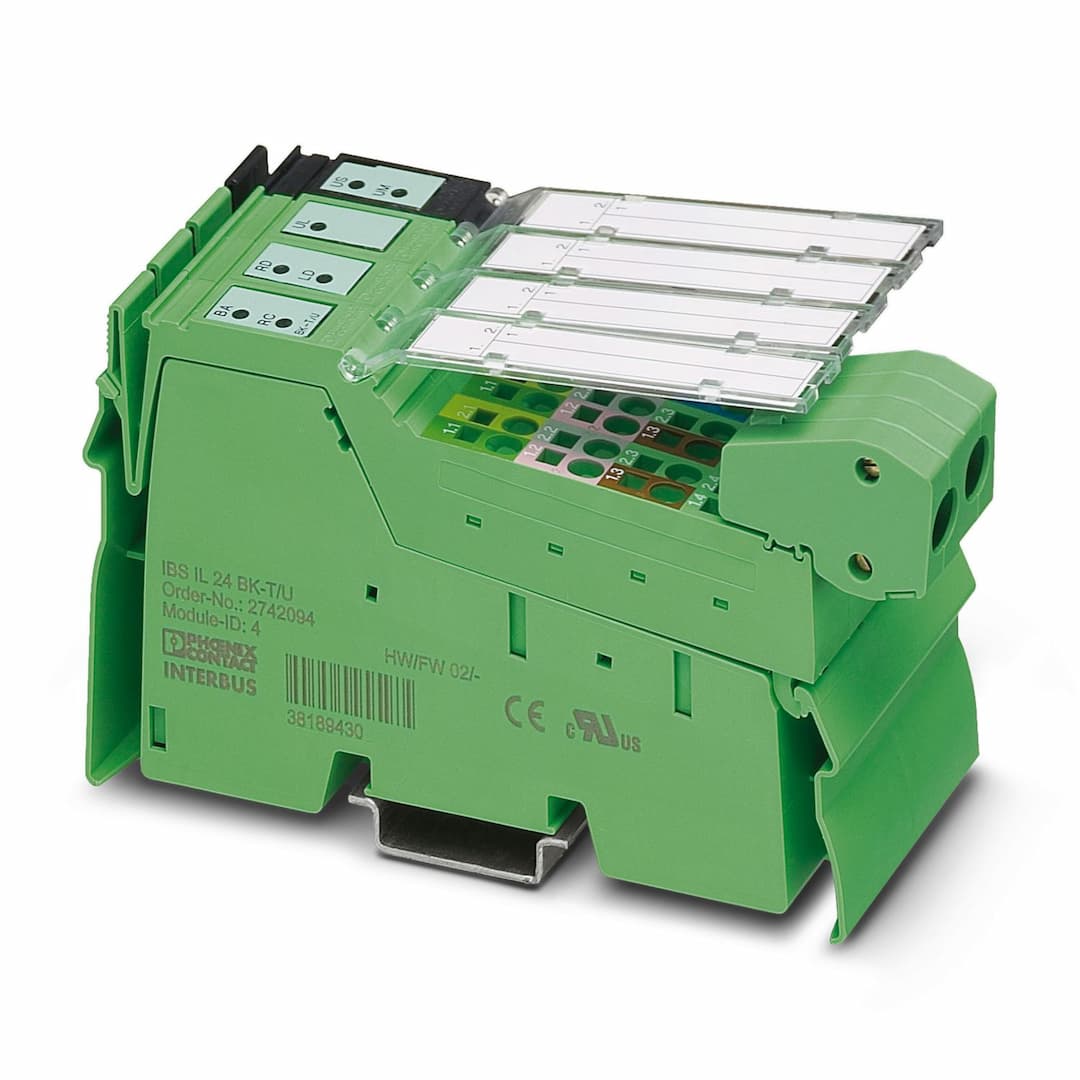

IBS IL 24 BK-T/U-2MBD-PAC
Selling Points
- 1Robust Design: Built to withstand harsh industrial environments with IP20 protection.
- 2High Transmission Speed: Supports transmission speeds of up to 2 MBaud for efficient data transfer.
- 3Reliable Power Supply: Operates on 24 V DC with a supply voltage range of 19.2 V DC to 30 V DC.
- 4Durable Construction: Compatible with DIN rail mounting for easy installation and secure connection.
- 5Compliant Standards: Meets CUL and UL listed standards for safety and reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 135 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Number of interfaces | 2 |
Connection method | Inline shield connector | Transmission speed | 2 Mbps |
Transmission physics | Copper | Number of interfaces | 1 |
Connection method | Inline data jumper | Transmission speed | 2 Mbps |
Number of local bus devices that can be connected | max. 63 | Number of devices with parameter channel | max. 62 |
Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 04 |
ID code (hex) | 04 | Length code (hex) | 00 |
Length code (dec) | 00 | Process data channel | 0 bit |
Input address area | 0 bit | Output address area | 0 bit |
Register length | 0 bit | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | Diagnostics messages | I/O error yes, if the segment voltage U |
Article revision | 09 | Maximum power dissipation for nominal condition | 3 W |
Protective circuit | Short-circuit protection of the communications power; electronic
Short-circuit protection of the analog supply; electronic
Surge protection (segment supply, main supply, bus coupler supply); Input protective diodes (can be destroyed by permanent overload)Pulse loads up to 1500 W are short circuited by the input protective diode.
Protection against polarity reversal (segment supply/main supply); Parallel diodes for protection against polarity reversal; in the event of an error the high current flowing through the diodes causes the fuse connected upstream to blow.
Protection against polarity reversal (bus coupler supply); Serial diode in the lead path of the power supply unit; in the event of an error only a low current flows. In the event of an error, no fuse trips within the external power supply unit. | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks)
typ. 100 mA (without connected Inline I/O terminals) |
Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: 5 V supply, incoming remote bus / 5 V supply outgoing remote bus | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply incoming remote bus / 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, incoming remote bus / 24 V main supply, 24 V segment supply | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply incoming remote bus / functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply outgoing remote bus / I/O (U | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply outgoing remote bus / communications power (U | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply outgoing remote bus / functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: Communications power (U | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V main supply, 24 V segment supply/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
