Product Model

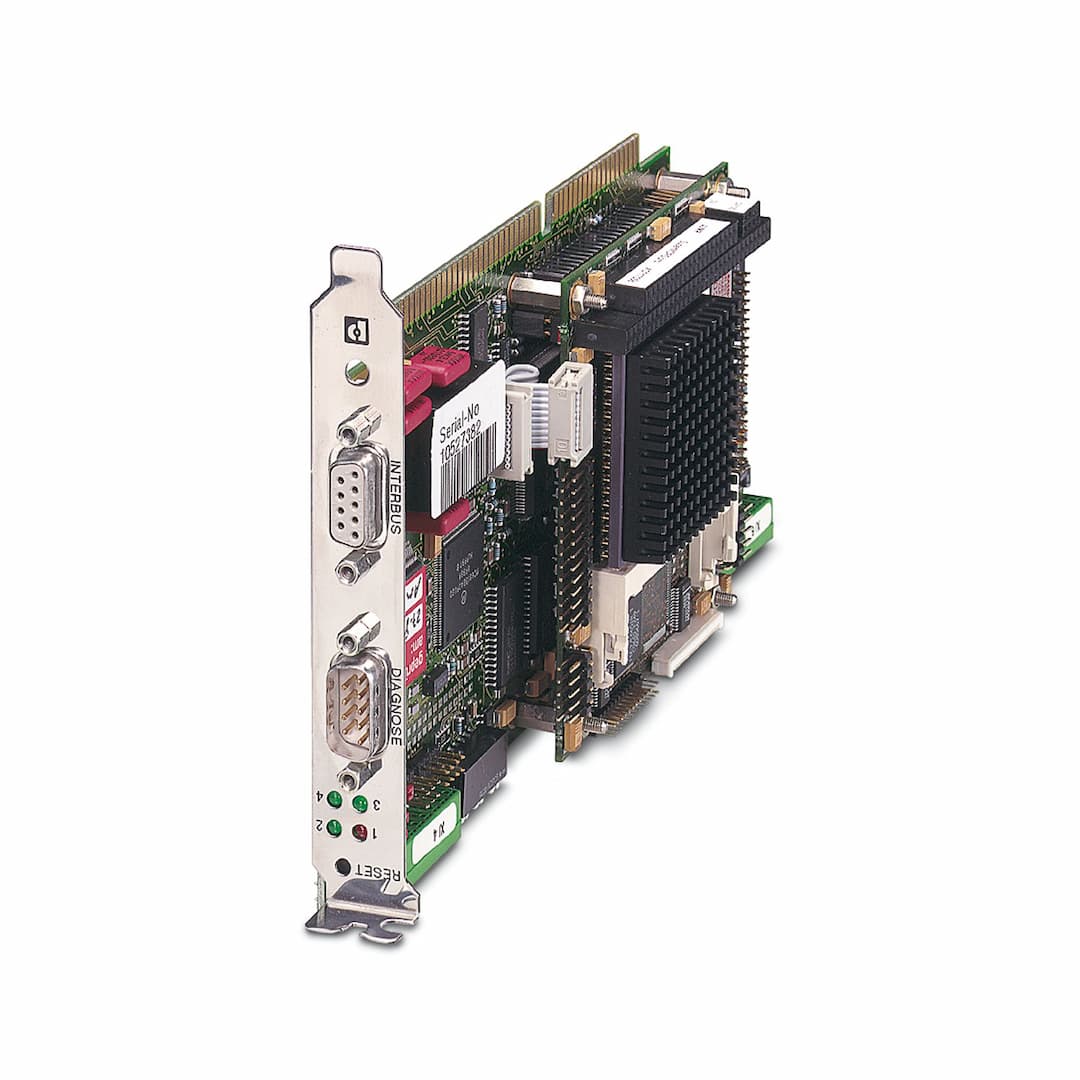

IBS ISA FC/486DX/I-T
Selling Points
- 1Electrical Isolation: Ensures safe operation in harsh environments.
- 2IEC 61131 Runtime System: Supports advanced PLC programming standards.
- 3PC/104 Coprocessor Card: Compatible with Generation 4 PC/104 architecture.
- 4WiAutomation Warranty: 12-month warranty on new products and 6-month on used ones.
- 5Secure Online Purchase: Guaranteed by SSL certification and HTTPS protocol for secure transactions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Type | PC card |
Format | 1 deep slot, (229 x 99.1 x 35) mm, double slot width | Control system | IBM-compatible PC with ISA slot, from 386DX processor |
Retentive data storage | 2 kByte (NVRAM) | I/O | 8 bytes, selectable between 100 and 3F8 (hex) |
Program memory | typ. 1 Mbyte (86 K instruction) | Data storage system | 2.4999561309814 Mbyte |
Number of control tasks | 16 | Number of supported devices | max. 512 (of which 254 are remote bus devices/bus segments) |
Number of devices with parameter channel | max. 126 (512 words) | Designation | READY/RUN, FAIL |
Monitored function | INTERBUS operating status | Optical representation | 2 LEDs |
Control system | IBM-compatible PC with ISA slot, from 386DX processor | Engineering tool | PC Worx |
Local diagnostics | READY/RUN, FAIL INTERBUS operating status 2 LEDs
READY/RUN, FAIL Coprocessor operating status Status display via LED
UL Voltage supply operating status Status display via LED | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 12.5 W | Supply voltage | 5 V DC |
Supply voltage range | 4.75 V DC ... 5.25 V DC (including ripple) | Power supply connection | Via ISA bus or ext. (MINI-COMBICON) |
Typical current consumption | 2.5 A (please observe increased inrush current) | Number of inputs | 2 |
Connection method | On-board | Connection method | Via ISA bus or MINI-COMBICON |
Interrupts | Selectable between IRQ 2, 3, 5, 7, 10, 12, 15 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | IBM-compatible PCs with ISA slot, from 386 DX processor |
Width | 229 mm | Height | 107 mm |
Depth | 35 mm | Width / Height / Depth | 229 mm / 107 mm / 35 mm (1 long slot, (229 x 99.1 x 35 mm), width: 2 slots) |
Degree of protection | IP20 | Mounting type | In the host system |
Specifications may be subject to change without notice
