Product Model

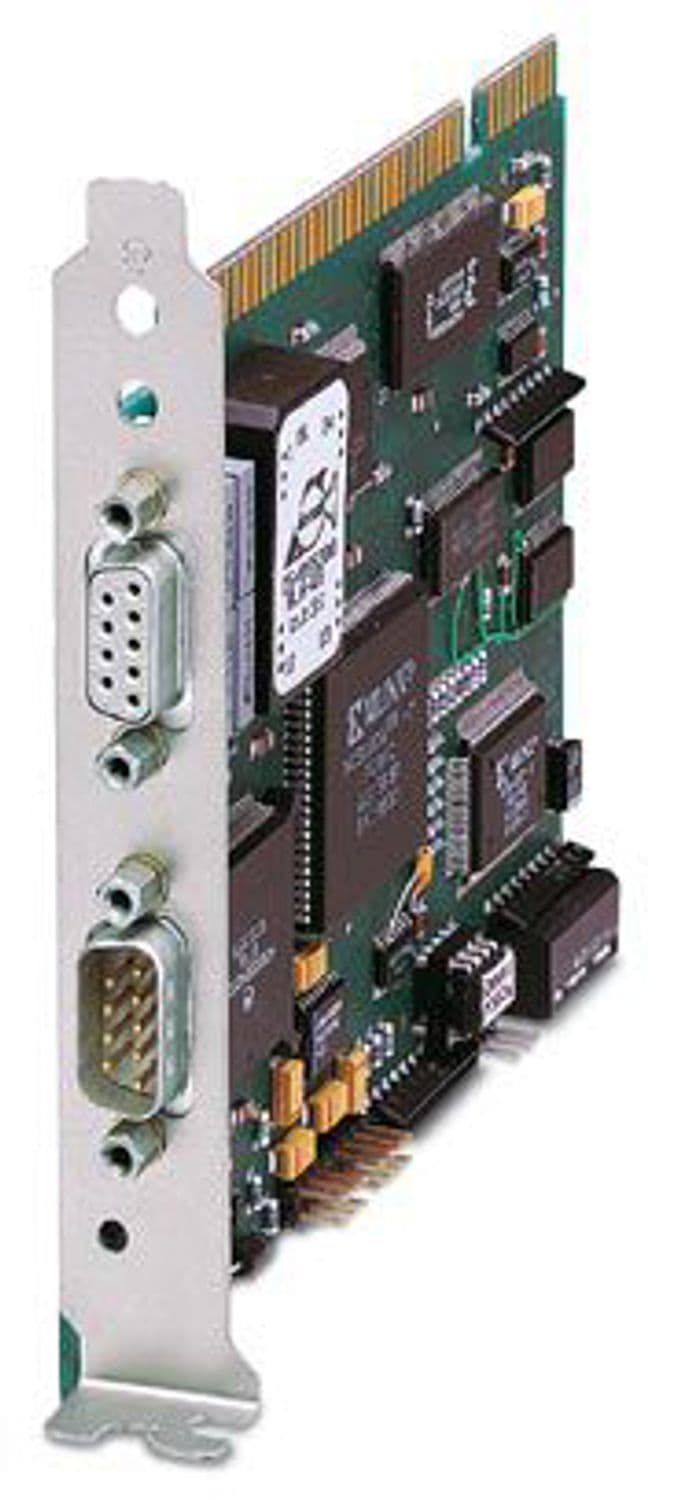

IBS ISA FC/I-T
Selling Points
- 1Compact design fits into every PC-based system.
- 2Electrical isolation ensures safe operation.
- 3Supports up to 8 control tasks with 384 kByte program memory.
- 4Compatible with INTERBUS-Master, allowing up to 62 devices with parameter channels.
- 5Includes local diagnostics via MREADY INTERBUS status display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Type | PC card |
Format | 1 short slot, 135 x 107 mm | Retentive data storage | NVRAM |
Operating system | Windows NT | I/O | 8 bytes, selectable between 100 and 3F8 (hex) |
Program memory | typ. 384 kByte (32 K instructions (IL)) | Number of control tasks | 8 |
Number of devices with parameter channel | max. 62 | Designation | MREADY |
Monitored function | INTERBUS | Optical representation | Status display via LED |
Engineering tool | PC Worx | Driver | Windows NT |
Local diagnostics | MREADY INTERBUS Status display via LED | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 2.5 W | Supply voltage | 5 V DC |
Supply voltage range | 4.75 V DC ... 5.25 V DC (including ripple) | Power supply connection | Via ISA bus |
Typical current consumption | 0.5 A (please observe increased inrush current) | Number of inputs | 2 |
Connection method | On-board | Connection method | Via ISA bus |
Interrupts | Selectable between IRQ 3, 5, 7, 9 (2), 10, 11, 12, 15 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | IBM-compatible PCs with ISA slot, from 386 DX processor |
Width | 135 mm | Height | 107 mm |
Depth | 18 mm | Width / Height / Depth | 135 mm / 107 mm / 18 mm (1 short slot, 135 mm x 107 mm) |
Mounting type | In the host system |
Specifications may be subject to change without notice
