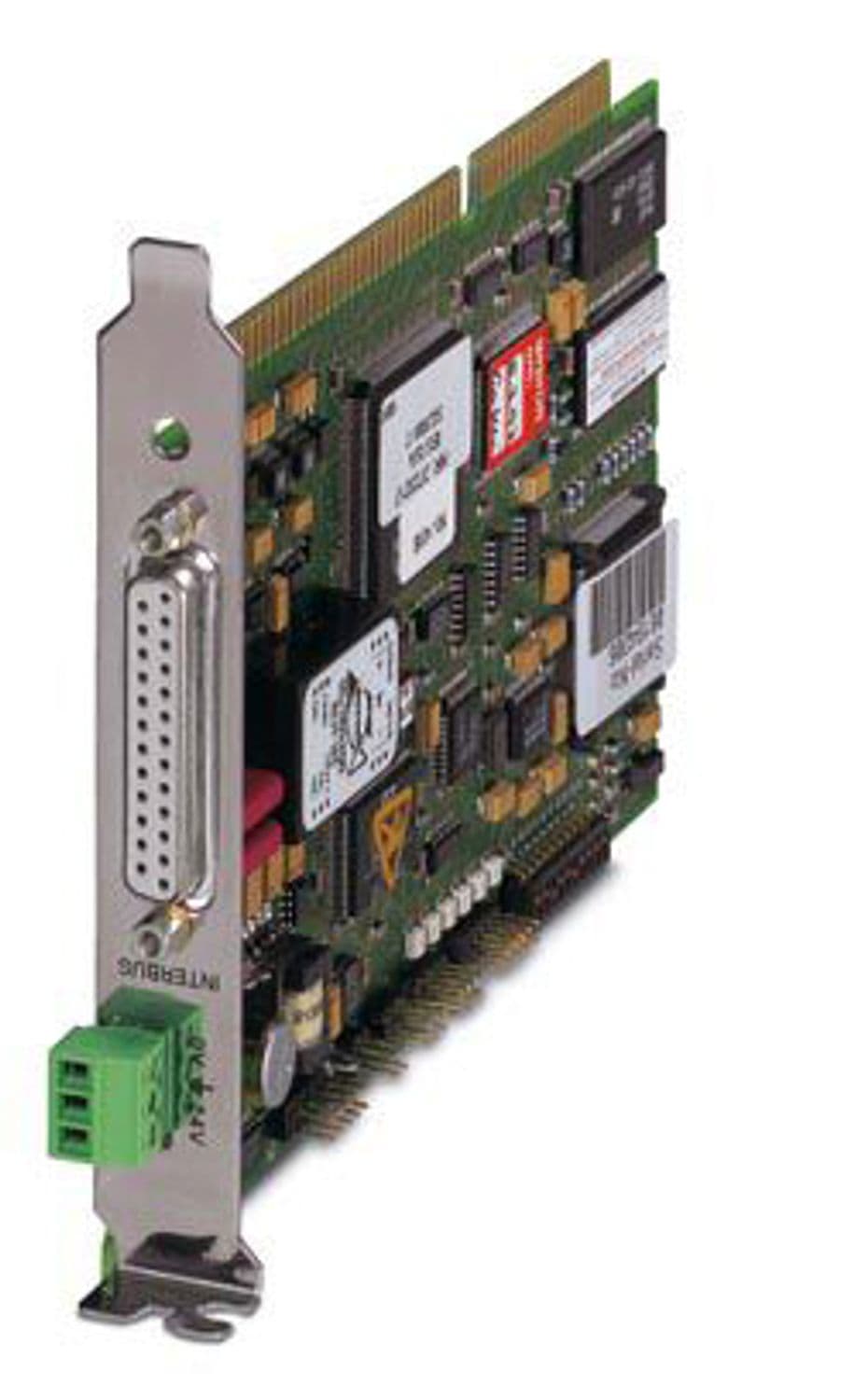

Phoenix Contact IBS ISA SC/RI/RT/I-T

Selling Points

  • 1InterBus Master Card: The IBS ISA SC-I/T is an InterBus-S master card designed for seamless communication.
  • 2Configurable DPRAM: Features a 4 Kbytes DPRAM for efficient data handling.
  • 3No Interrupts Used: Ensures smooth operation without interruptions.
  • 4Flexible Configuration: Configure process data length up to 10 words and parameter channel length.
  • 5Optical Fibre Transmission: Supports optical fibre transmission via medium converter for enhanced reliability.
Product Details
IBS ISA SC/RI/RT/I-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
PLC controller board
Type
PC card
Control system
IBM-compatible PC with ISA slot, from 386DX processor
Operating system
Windows NT
I/O
8 bytes, selectable between 100 and 3FF (hex)
INTERBUS data
INTERBUS master: 25-pos. D-SUB socket strip
Number of devices with parameter channel
max. 62
Function block
Diagnostics IO exchange PCP NV-RAM directs I/Os
Monitored function
INTERBUS
Optical representation
LED displays on the module
Control system
IBM-compatible PC with ISA slot, from 386DX processor
Configuration tool
CMD from version 4.5x Config+ from version 1.00 onwards
Diagnostics tool
DIAG+ from version 1.14
Driver
Windows NT
Local diagnostics
INTERBUS LED displays on the module
Transmission medium
Copper
Maximum power dissipation for nominal condition
max. 3 W
Supply voltage
24 V DC (external power supply, environment class 1)
Supply voltage range
18.5 V DC ... 30.2 V DC (including ripple (0.5 Vpp))
Power supply connection
Via ISA bus (master) and 2-pos. MINI COMBICON (slave part)
Interrupts
1, selectable between IRQ 3, 5, 7, 9 (2), 11, 12, 15
Connection method
25-pos. D-SUB socket strip
Connection method
25-pos. D-SUB socket strip
Connection method
RS-232-C, 10-pos. DIL male connector
Connection method
IBM-compatible PCs with ISA slot, from 386 SX processor
Width
168 mm
Height
107 mm
Depth
20 mm
Width / Height / Depth
168 mm / 107 mm / 20 mm
Mounting type
In the host system
