Product Model

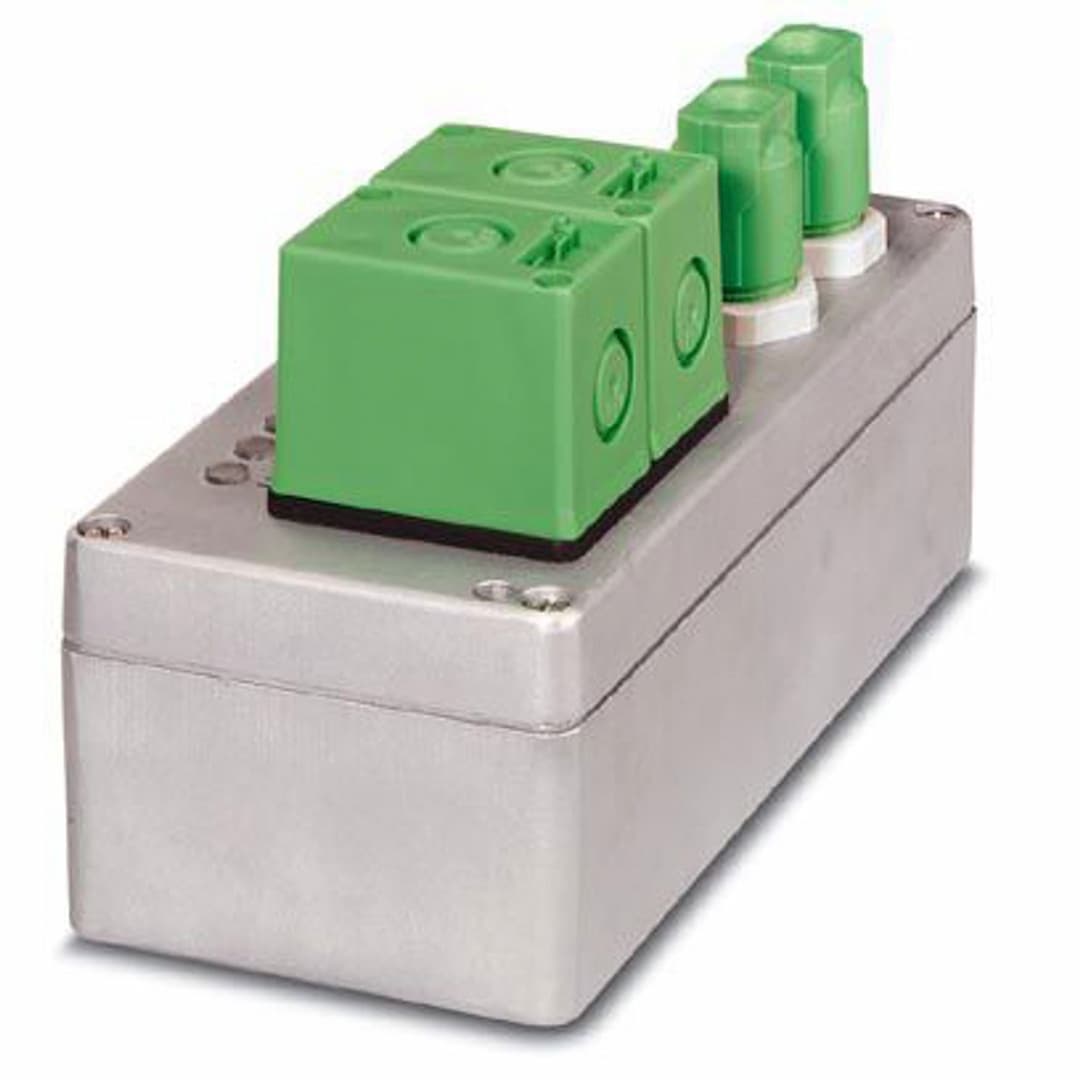

IBS L2 IP 24 BK-T
Selling Points
- 1Reliable INTERBUS Bus Terminal Module: Designed for industrial use with INTERBUS-Loop 2 branch.
- 224 V DC Power: Compatible with 24 V DC power supply.
- 3IP65/67 Protection: Ensures durability in harsh environments.
- 4Compact Design: Ideal for space-constrained applications.
- 5Expert Support: Available with express delivery and dedicated customer support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protective circuit | Polarity reversal protection, bus logics
Polarity reversal protection, Loop 2 electronics
Surge protection (35 V for 0.5 s) | I/O voltage | 24 V DC 5 % (ripple) |
I/O voltage range | 20 V DC ... 30 V DC | Typical current consumption | 100 mA (module electronics) |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Connection method | MINI COMBICON |
Connection method | QUICKON fast connection | Width | 174 mm |
Height | 95 mm | Length | 80 mm |
Specifications may be subject to change without notice
