Product Model

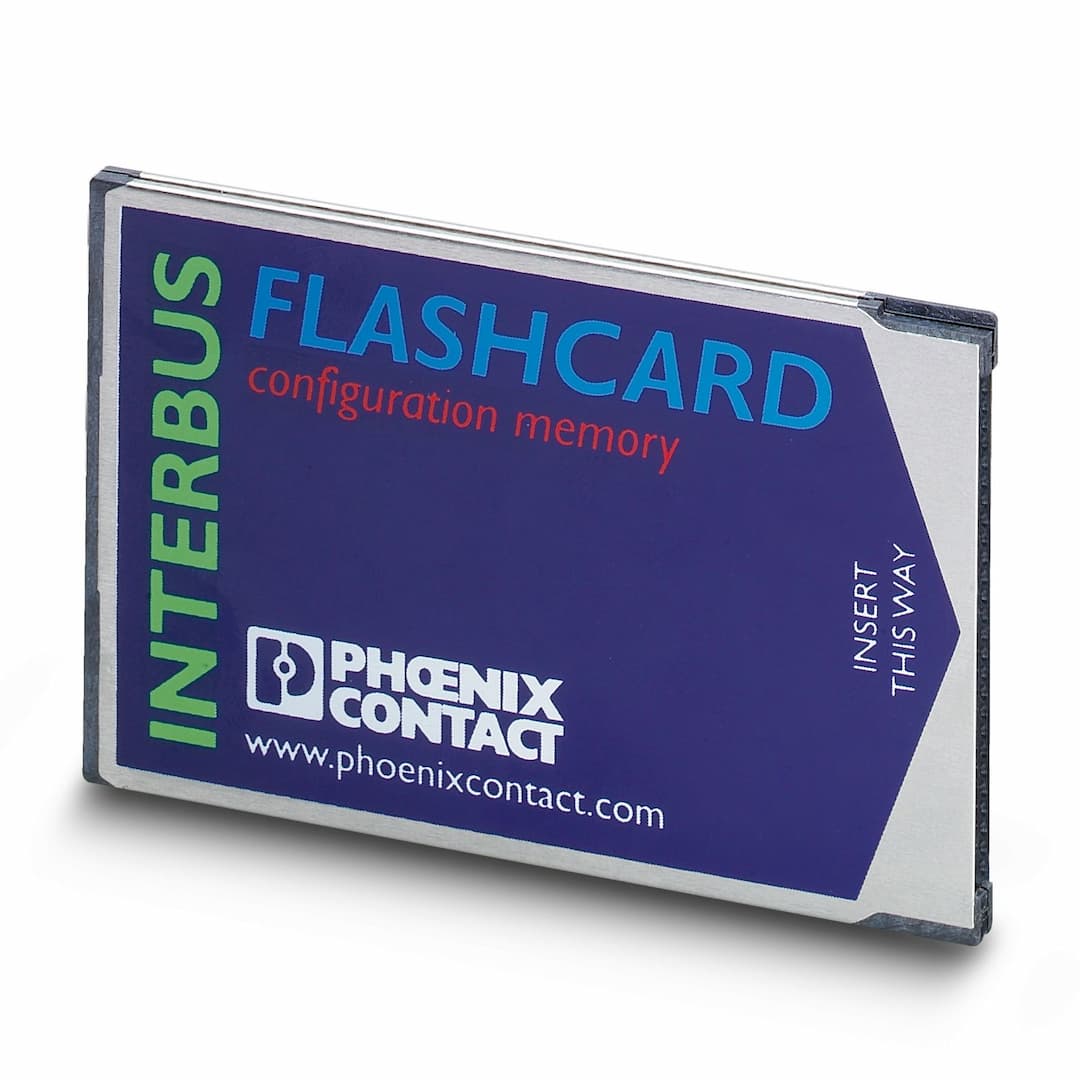

IBS MC FLASH 2MB
Selling Points
- 1Program and Configuration Memory: 2 Mbyte capacity for storing programs and configurations.
- 2Compact Design: Dimensions: Height - 85.6 mm, Depth - 3.3 mm, Width - 54 mm.
- 3Wide Operating Temperature: Ambient temperature range from -40°C to 85°C.
- 4Low Power Consumption: Typical current consumption of 90 mA.
- 5Compliant with Environmental Regulations: RoHS compliant and WEEE compliant since December 11, 2006.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Storage medium | Set comprises | 2719483 IBS PLC5 DSC SYSKIT
2719496 IBS PLC5 DSC SYSKIT E
2725930 IBS BA DSC SYSKIT
2725927 IBS BA DSC SYSKIT E
2731089 IBS MEA SC SYSKIT
2731092 IBS MEA SC SYSKIT E
2723657 IBS GE 90-70 SC SYSKIT
2723644 IBS GE 90-70 SYSKIT E
2721303 IBS S7 300 SYSKIT
2721316 IBS S7 300 SYSKIT E
2721361 IBS S7 400 SYSKIT E
2721374 IBS S7 400 SYSKIT
2740067 IBS S7 400 ETH SYSKIT
2740070 IBS S7 400 ETH SYSKIT E
2751373 IBS S5 DSC SYSKIT
2751386 IBS S5 DSC SYSKIT E |
Maximum power dissipation for nominal condition | 0.45 W | Supply voltage | 5 V DC |
Supply voltage range | 4.5 V DC ... 5.5 V DC | Typical current consumption | typ. 90 mA |
Width | 54 mm | Height | 85.6 mm |
Depth | 3.3 mm | Ambient temperature (operation) | -40 °C ... 85 °C |
Specifications may be subject to change without notice
