Product Model

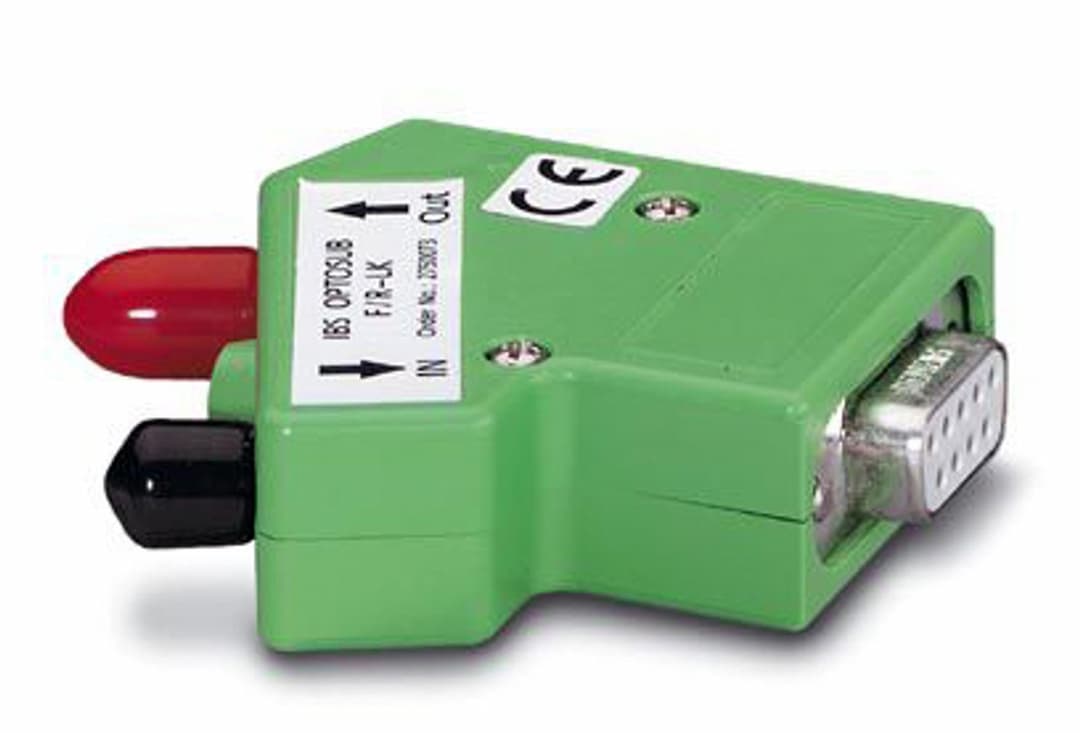

IBS OPTOSUB F/R-LK
Selling Points
- 1Converts remote IN interface to fiber optics for high-speed data transmission.
- 2Compatible with INTERBUS systems, ensuring reliable communication.
- 3Features F-SMA connection method and 660 nm wavelength for optimal performance.
- 4Supports transmission lengths of up to 50 meters with optical path diagnostics.
- 5Compact design with dimensions of 65 mm x 16 mm x 59 mm, making it easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Media converter |
Signal | INTERBUS | Connection method | F-SMA |
Wavelength | 660 nm | Transmission medium | FO |
Bus system | INTERBUS | Transmission speed | 500 kbps |
Connection method | D-SUB 9 plug | Transmission length | 35 m (50 m system without optical path diagnostics)
50 m (70 m system with optical path diagnostics) |
Width | 49.7 mm | Height | 49.7 mm |
Depth | 15.6 mm | Color | green |
Degree of protection | IP20 |
Specifications may be subject to change without notice
