Product Model

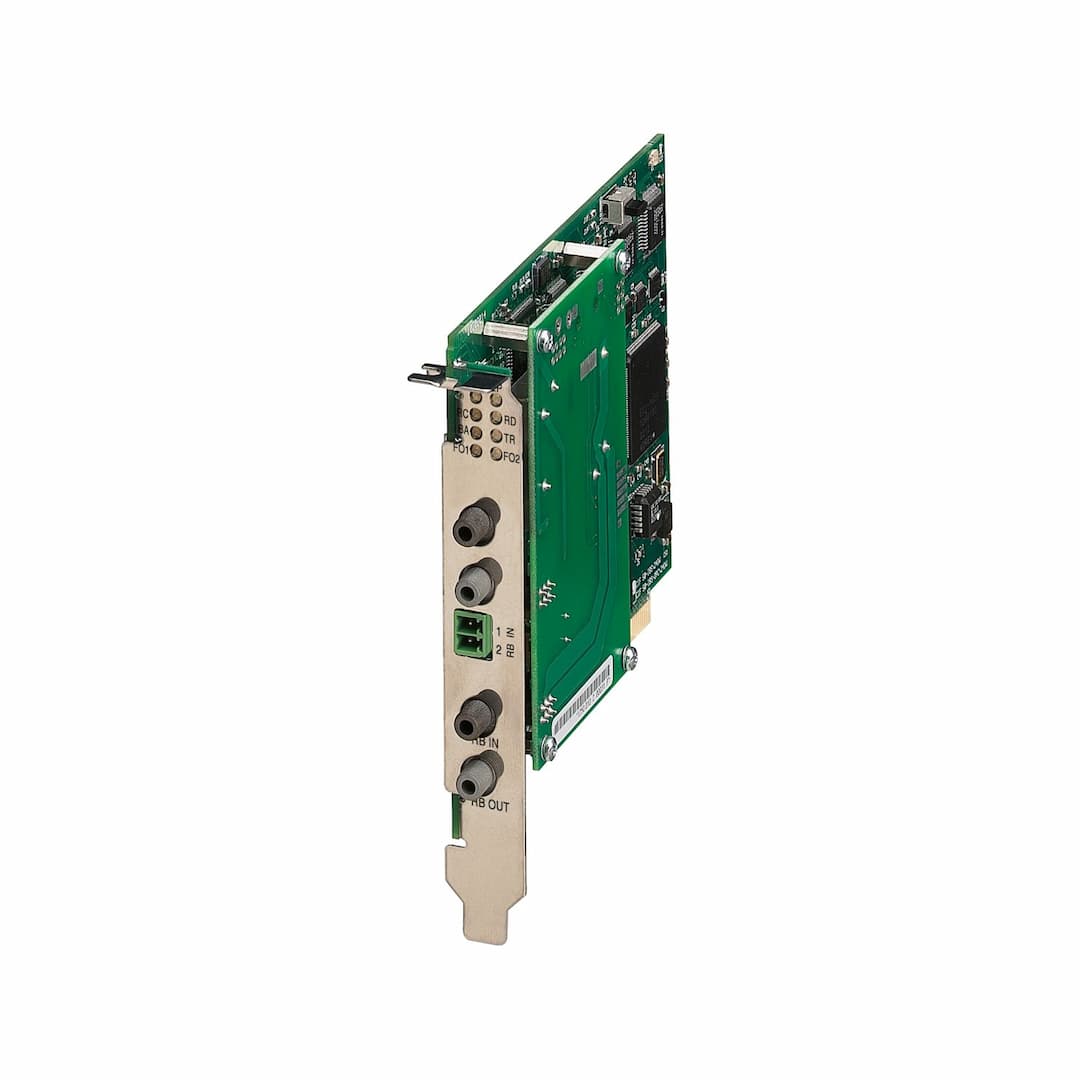

IBS PCI RI-LK
Selling Points
- 1High-Performance Interbus Controller: Designed for industrial automation, ensuring reliable and efficient control.
- 216 Bytes of I/O: Provides ample input/output capabilities for complex system integration.
- 3Plug-and-Play (PnP): Simplifies setup with automatic configuration.
- 4Supports Up to 126 Devices: Scalable solution for large-scale industrial systems.
- 5Robust Supply Voltage Options: Compatible with 3.3 V DC, 5 V DC, and 24 V DC external supply voltages.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | PC controller board |
Type | PC card | Format | Short plug-in card, 1-slot |
Control system | IBM-compatible PCs with PCI slot | Operating system | Windows NT
Windows 2000
Windows XP |
Number of parameter data | 4 Byte | Number of devices with parameter channel | max. 126 |
Function block | Diagnostics
IO exchange
PCP
NV-RAM
directs I/Os | Control system | IBM-compatible PCs with PCI slot |
Configuration tool | Own configurator on CD | Application interface | DDI
OPC-DA server |
Driver | Windows NT
Windows 2000
Windows XP | Transmission medium | FO |
Maximum power dissipation for nominal condition | max. 5 W | Supply voltage | 3.3 V DC (internal)
5 V DC (internal)
24 V DC (external) |
Supply voltage range | 18 V DC ... 30 V DC | Power supply connection | Via PCI bus or 2-pos. MINI-COMBICON |
Typical current consumption | 1 A | Number of inputs | 0 |
Input frequency | 0 kHz | Number of pulse direction outputs | 0 |
Limit frequency | 0 kHz | Interrupts | 1 IRQ, PNP |
Connection method | FSMA plugs | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
Connection method | FSMA plugs | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
Connection method | PCI slot in acc. with PCI specification 2.1 or higher, PCI bus, 32 bits, 33 MHz, 3.3/5 V | Connection method | 2-pos. MINI-COMBICON male connector |
Width | 134 mm | Height | 107 mm |
Depth | 20 mm | Width / Height / Depth | 134 mm / 107 mm / 20 mm (short plug-in card, 1 slot) |
Degree of protection | IP20 (Must be installed in a device with IP20) | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 95 % (non-condensing) |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Mounting type | In the host system |
Specifications may be subject to change without notice
