Product Model

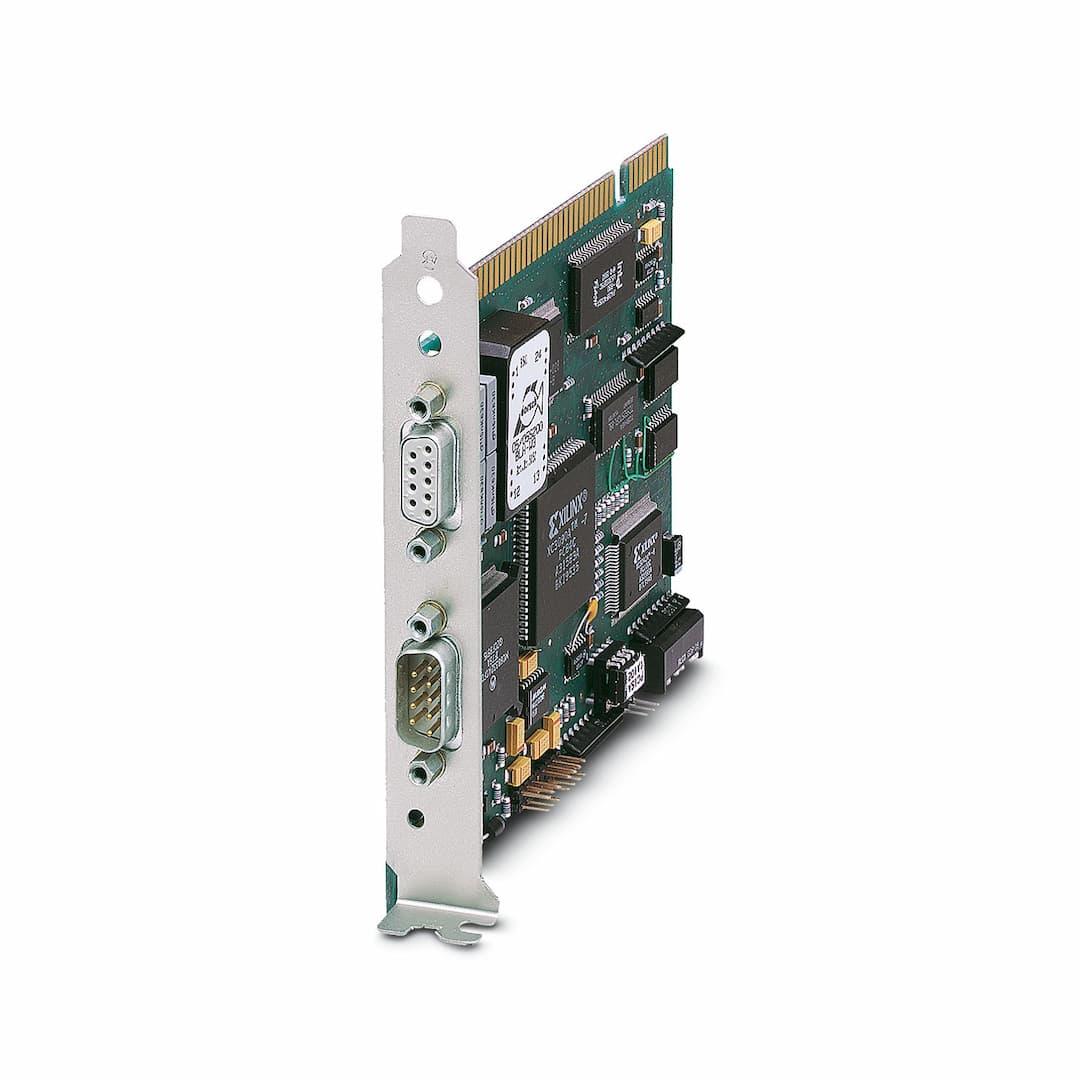

IBS PC ISA SC/I-T
Selling Points
- 1Program the board using high-level languages for advanced automation solutions.
- 2Extend ISA bus platform towards PCI compatibility for seamless integration.
- 3Ensure safe operation with electrical isolation between the board and external systems.
- 4Access INTERBUS fieldbus system and runtime controller data directly via HLI and OPC interfaces.
- 5Includes free drivers for Windows NT, XP, and Windows 7, along with additional software tools for parameterization and diagnostics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PC controller board | Type | PC card |
Set comprises | 2721918 IBS PC ISA SC SYSKIT E
2721905 IBS PC ISA SC SYSKIT | Format | Short plug-in card, 1-slot |
Control system | IBM-compatible PCs with ISA slot | Operating system | Windows NT
Windows 2000
Windows 95/98
DOS
Further types on request |
I/O | 8 bytes, selectable between 100 and 3F8 (hex) | Number of devices with parameter channel | max. 126 |
Designation | MREADY | Monitored function | INTERBUS operating status |
Optical representation | Status display via LED | Control system | IBM-compatible PCs with ISA slot |
Configuration tool | CMD from Version 4.0x | Diagnostics tool | DIAG+ from version 1.0x |
Application interface | OPC
DDI | Driver | Windows NT
Windows 2000
Windows 95/98
DOS
Further types on request |
Local diagnostics | MREADY INTERBUS operating status Status display via LED | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 2.5 W | Supply voltage | 5 V DC |
Supply voltage range | ± 5 % (including ripple) | Power supply connection | Via ISA bus |
Typical current consumption | 0.5 A | Interrupts | Selectable between IRQ 3, 5, 7, 9, 10, 11, 12, 15 |
Connection method | 9-pos. D-SUB female connector, with electrical isolation | Transmission speed | 500 kbps |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Transmission speed | 500 kbps |
Connection method | ISA bus | Width | 135 mm |
Height | 107 mm | Width / Height / Depth | 135 mm / 107 mm / (short plug-in card, 1 slot) |
Degree of protection | IP00 | Ambient temperature (operation) | -25 °C ... 75 °C (acc. to EN 60204-1) |
Ambient temperature (storage/transport) | 0 °C ... 75 °C (acc. to EN 60204-1) | Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
Air pressure (operation) | 860 hPa ... 1080 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3000 m above sea level) |
Mounting type | In the host system |
Specifications may be subject to change without notice
