Product Model

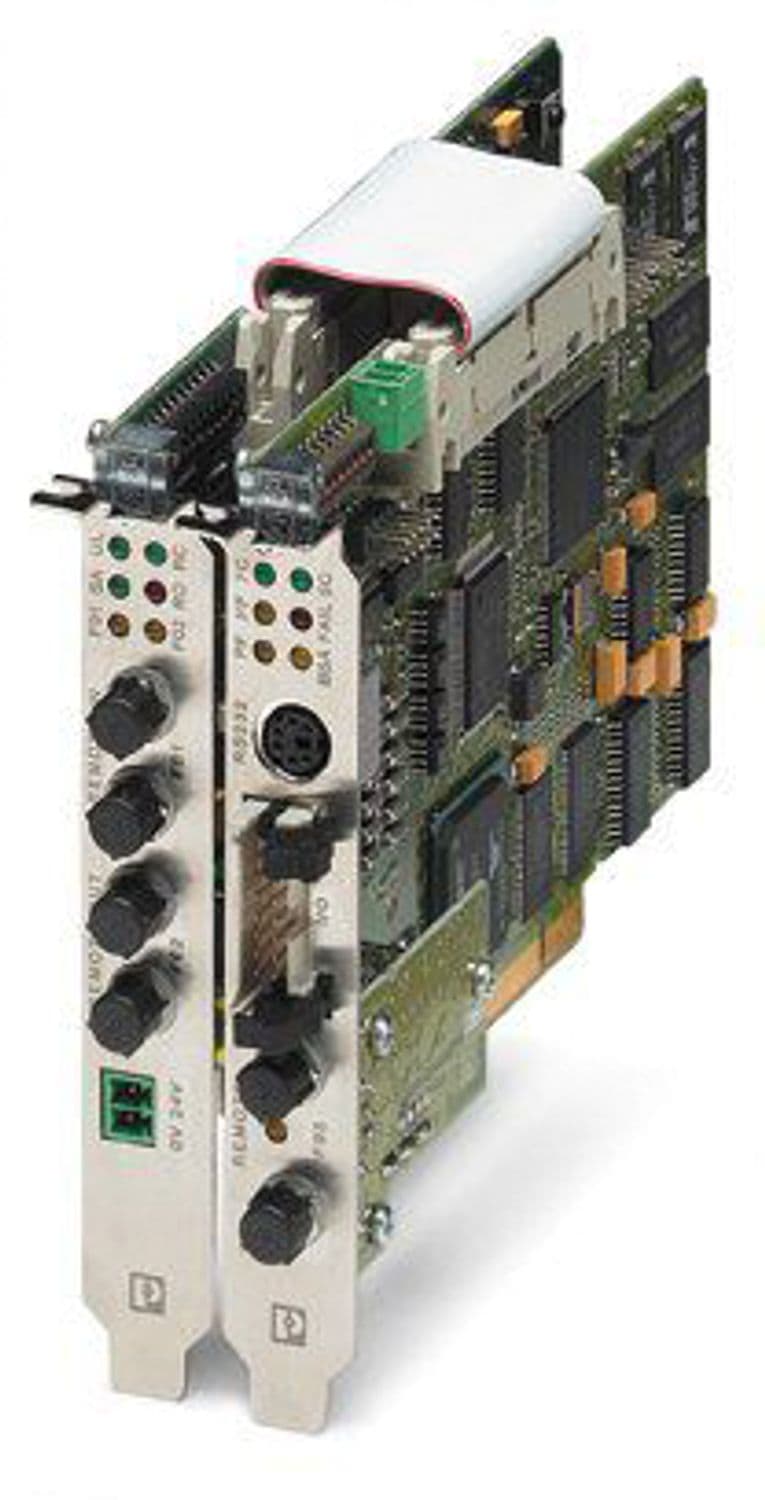

IBS PCI SC/RI-LK
Selling Points
- 1High-quality remote control coupler designed for industrial automation.
- 2Compatible with the NC range from Phoenix Contact.
- 312-month warranty from PLSWISS SA.
- 4Secure payment options via PayPal, credit cards, and bank transfers.
- 5Worldwide shipping with estimated delivery times based on shipping service selection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PC controller board | Type | PC card |
Control system | PCI bus | Operating system | Windows NT
Windows 2000
Windows XP
Windows 7 (64 bit)
Venturcom RTX 5.x
Further types on request |
I/O | 16 bytes, PnP | Number of devices with parameter channel | max. 126 |
Designation | SC, HF, PF, BSA, FAIL | Monitored function | INTERBUS |
Optical representation | LED displays on the module | Control system | PCI bus |
Configuration tool | CMD from version 4.5x
Config+ from version 1.00 onwards | Diagnostics tool | DIAG+ from version 1.0x |
Application interface | HLI
OPC
DDI | Driver | Windows NT
Windows 2000
Windows XP
Windows 7 (64 bit)
Venturcom RTX 5.x
Further types on request |
Power consumption | 4.1 W | Local diagnostics | SC, HF, PF, BSA, FAIL INTERBUS LED displays on the module |
Protective circuit | Reverse polarity protection; Fuse | Transmission medium | FO |
Maximum power dissipation for nominal condition | max. 4 W | Supply voltage | 5 V DC
24 V DC (external, environment class 1) |
Supply voltage range | 18.5 V DC ... 30.2 V DC (including ripple (0.5 Vpp)) | Power supply connection | Via PCI bus (master) and 2-pos. MINI COMBICON (slave part) |
Typical current consumption | 0.8 A | Interrupts | 1 IRQ, PnP |
Connection method | F-SMA connector | Connection method | F-SMA connector |
Connection method | F-SMA connector | Connection method | RS-232-C, Mini-DIN female |
Connection method | IBM-compatible PCI slot in acc. with PCI specification 2.1 or higher, PCI bus, 32 bit, 33 MHz, 5 V | Width | 168 mm |
Height | 107 mm | Depth | 20 mm |
Width / Height / Depth | 168 mm / 107 mm / 20 mm | Degree of protection | IP20 (Must be installed in a device with IP20) |
Mounting type | In the host system |
Specifications may be subject to change without notice
