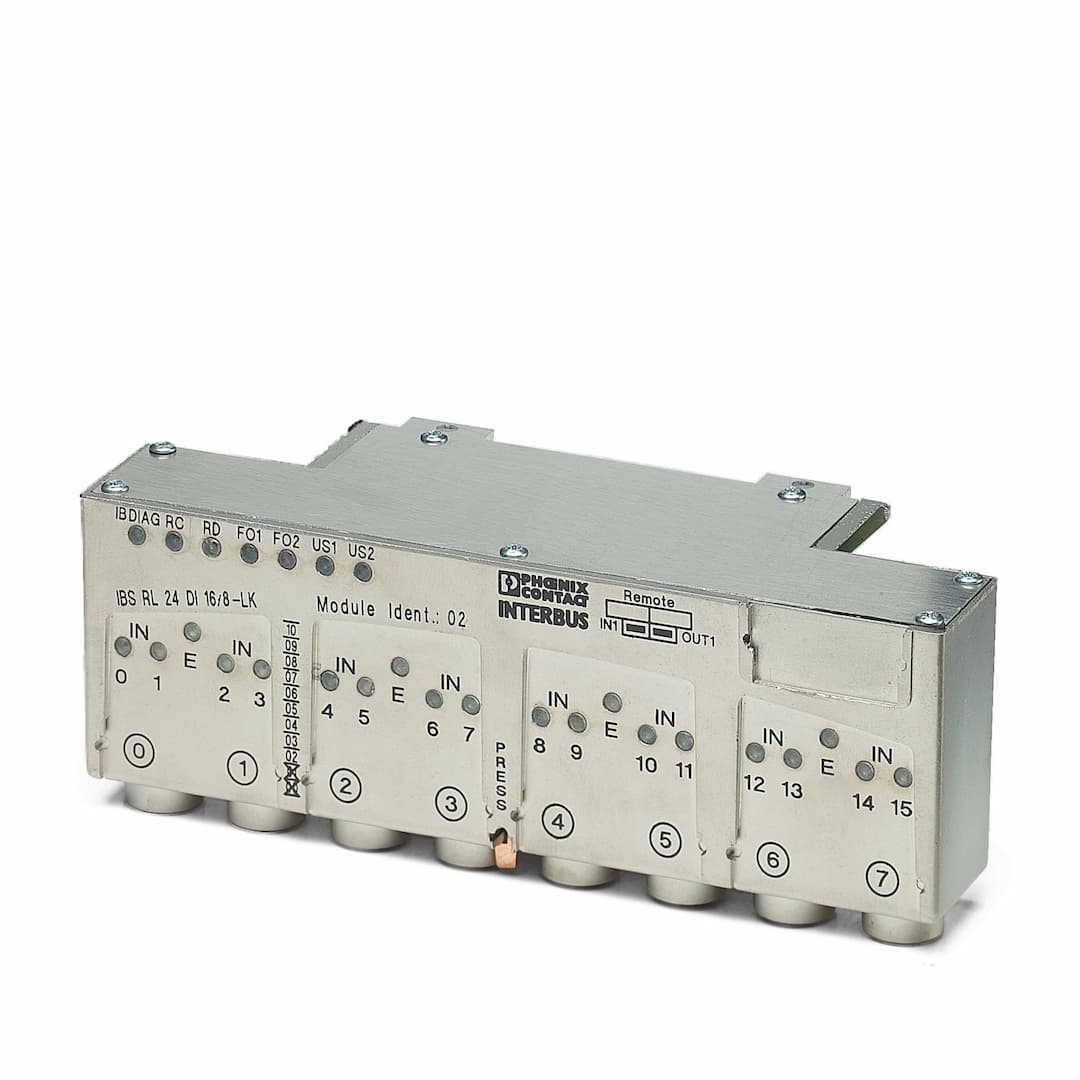

Product Model
IBS RL 24 DI 16/8-LK
Selling Points
- 1Robust Fiber Optic Technology: Utilizes 2 Mbaud fiber optic technology for reliable data transmission.
- 216 Digital Inputs: Supports 16 digital inputs with 24 V DC supply, ensuring high accuracy and reliability.
- 3Rugged Metal Housing: Built with a rugged metal housing for durability and long-term performance.
- 4IP67 Protection: Offers IP67 protection when screwed together, ensuring it can withstand harsh environments.
- 5Comprehensive Diagnostic Functions: Equipped with comprehensive diagnostic functions for easy troubleshooting and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 179 mm | Height | 67 mm |
Depth | 71 mm | Note on dimensions | with bus connection plugs and mounting panel |
Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission speed | 500 kbps |
Transmission physics | FO | Input name | Digital inputs |
Number of inputs | 16 | Connection technology | 2-, 3-, 4-conductor |
Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 11 V ... 32 V |
Typical input current per channel | 50 mA | Protective circuit | Electronic short-circuit/overload protection for each group |
Product type | I/O component | Product family | Ruggedline |
Type | Block design | No. of channels | 16 |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V ... 32 V (including ripple) |
Ripple | Max 3.6 V | Connection method | M12 connector |
Ambient temperature (operation) | 0 °C ... 55 °C | Degree of protection | IP65/IP67 |
Note | Seal unused slots/connections to ensure the degree of protection. | Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) |
Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 100 % | Permissible humidity (storage/transport) | 95 % (non-condensing) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
