Product Model

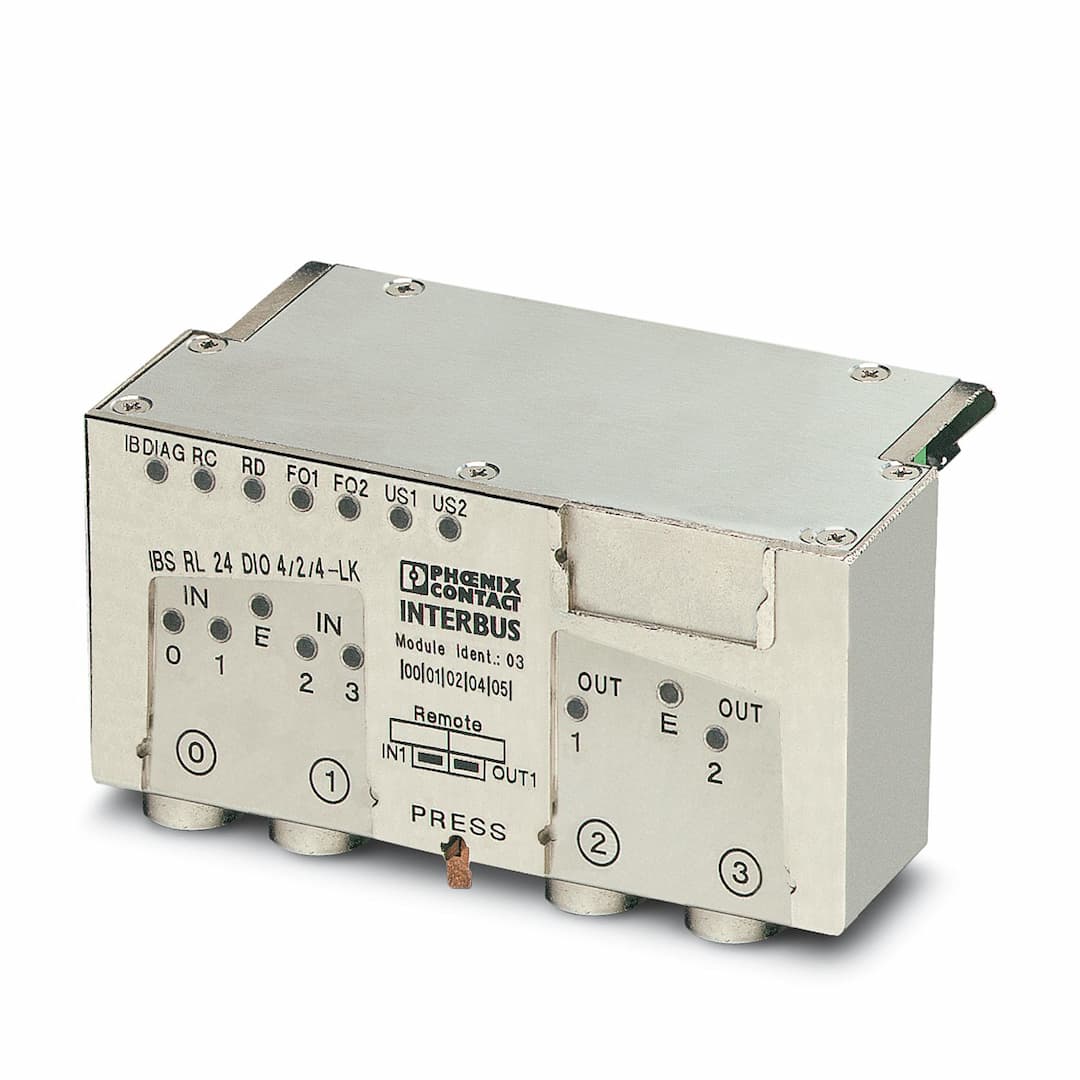

IBS RL 24 DIO 4/2/4-LK-2MBD
Selling Points
- 1High-Performance Distributed I/O Device: Ideal for industrial automation applications.
- 26 Channels for Versatile Connectivity: Supports multiple input and output configurations.
- 32 Mbps Transmission Speed: Ensures fast and efficient data transfer.
- 40.5 Amp Current Capability: Handles a range of power requirements with ease.
- 5Compact Design for Easy Installation: Wall mounting for space-saving setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 127 mm | Height | 67 mm |
Depth | 71 mm | Note on dimensions | with bus connection plugs and mounting panel |
Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission speed | 2 Mbps |
Transmission physics | FO | Input name | Digital inputs |
Number of inputs | 4 | Connection technology | 2-, 3-, 4-conductor |
Input voltage range "0" signal | 0 V DC ... 5 V DC | Input voltage range "1" signal | 11 V DC ... 30 V DC |
Total sensor current | max. 200 mA | Typical input current per channel | 3 mA |
Delay at signal change from 0 to 1 | 3 ms | Delay at signal change from 1 to 0 | 3 ms |
Protective circuit | Electronic short-circuit/overload protection for each group | Output name | Digital outputs |
Connection technology | 2-, 3-conductor | Number of outputs | 2 |
Protective circuit | Electronic short-circuit/overload protection for each channel; Freewheeling diode | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Nominal output voltage | 24 V |
Output voltage when switched off | max. 1 V | Output current when switched off | max. 100 µA |
Nominal load, inductive | 12 VA (1.2 H, 48 Ω) | Nominal load, lamp | 12 W |
Nominal load, ohmic | 12 W | Behavior with overload | Auto restart |
Behavior with inductive overload | Output can be destroyed | Overcurrent shut-down | min. 0.7 A |
Output current with ground connection interrupt when switched off | max. 25 mA | Product type | I/O component |
Product family | Ruggedline | Type | Block design |
No. of channels | 6 | Supply voltage | 24 V DC |
Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) | Supply current | typ. 80 mA (plus sensor current) |
Ripple | Max 3.6 V | Test voltage: Between bus logic and outputs | 500 V AC, 50 Hz, 1 min |
Connection method | Fiber optic | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP65/IP67 | Note | Seal unused slots/connections to ensure the degree of protection. |
Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
