Product Model

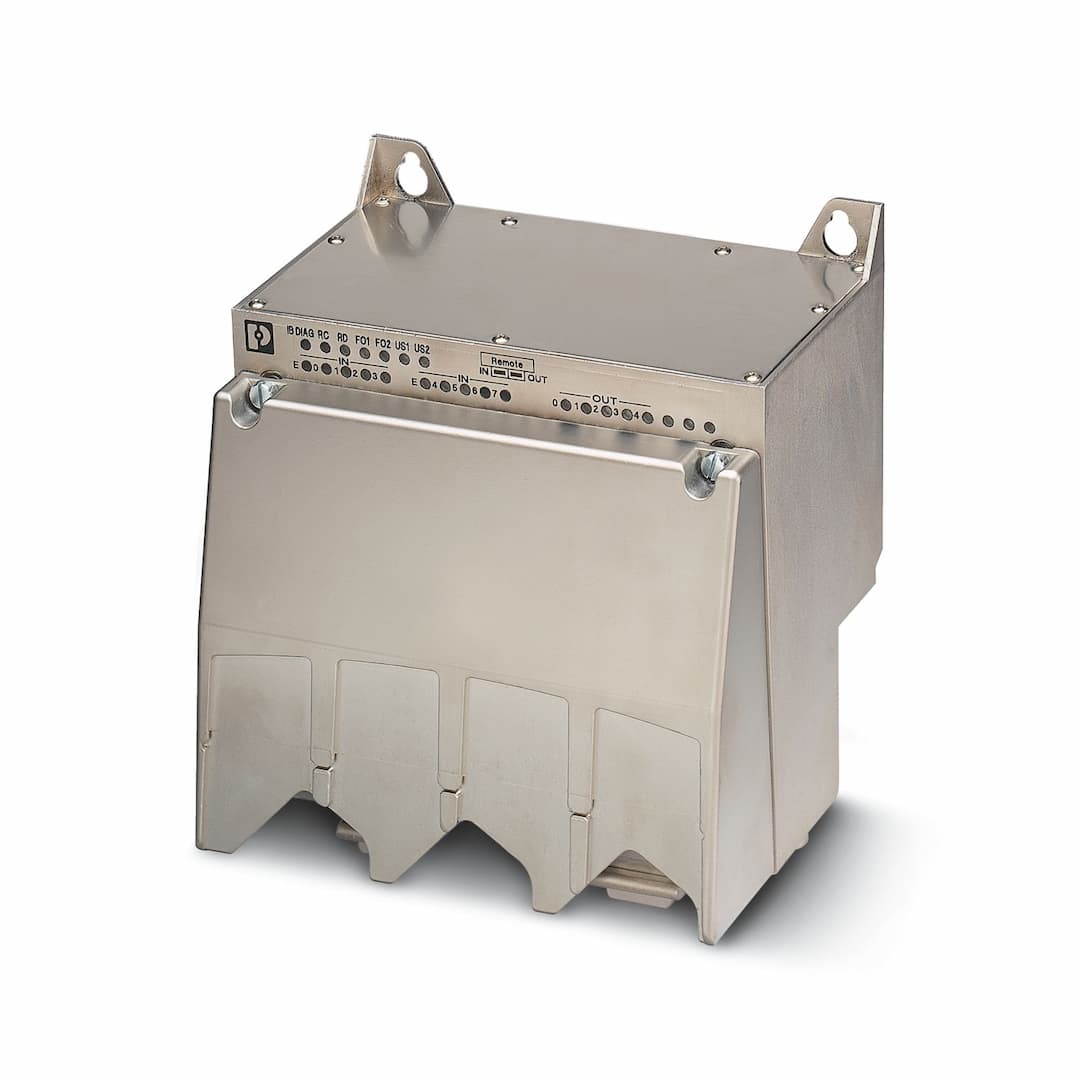

IBS RL 24 DIO 8/5-RS-LK-2MBD
Selling Points
- 1Utilizes 2 Mbaud fiber optic technology for reliable and high-speed data transmission.
- 2Features a robust metal housing with IP67 protection, ensuring durability in harsh environments.
- 3Equipped with comprehensive diagnostic functions for easy troubleshooting and maintenance.
- 4Offers eight digital inputs (24 V DC) and five relay outputs (12 V AC to 440 V AC, 2 A maximum) via M12 connectors.
- 5Designed with electronic short-circuit/overload protection for each input channel, ensuring high reliability in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 185 mm | Height | 193 mm |
Depth | 138 mm | Note on dimensions | with bus connection plugs and mounting panel |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | Optic fiber (polymer fiber 980/1000 µm) |
Transmission speed | 2 Mbps | Transmission physics | FO |
ID code (dec.) | 3 | ID code (hex) | 03 |
Length code (hex) | 09 | Length code (dec) | 9 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 1 Byte | Register length | 1 Byte |
Input name | Digital inputs | Description of the input | Voltage input 230 V AC to 400 V AC |
Number of inputs | 8 | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V
230 V (1 signal 230 V AC to 400 V AC) | Input voltage range "0" signal | -30 V ... 5 V |
Input voltage range "1" signal | 15 V ... 32 V | Delay at signal change from 0 to 1 | 2.2 ms |
Delay at signal change from 1 to 0 | 3.3 ms | Protective circuit | Electronic short-circuit/overload protection |
Output name | Relay output | Number of outputs | 5 |
Maximum output current per channel | 2 A | Maximum operating frequency with ohmic nominal load | 10 Hz |
Product type | I/O component | Product family | Ruggedline |
Type | Block design | No. of channels | 13 |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) |
Supply current | typ. 120 mA (plus sensor current) | Ripple | Max 3.6 V |
Test voltage: Between US1 and US2 | 500 V AC, 50 Hz, 1 min | Test voltage: Between US1 and the functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: Between US2 and the functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: Between US1 and relay contacts | 2.5 kV, 50 Hz, 1 min |
Test voltage: Between US2 and relay contacts | 2.5 kV, 50 Hz, 1 min | Test voltage: Between relay contacts and the functional ground | 2.5 kV, 50 Hz, 1 min |
Connection method | Fiber optic | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP65/IP67 | Note | Seal unused slots/connections to ensure the degree of protection. |
Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 100 % |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
