Product Model

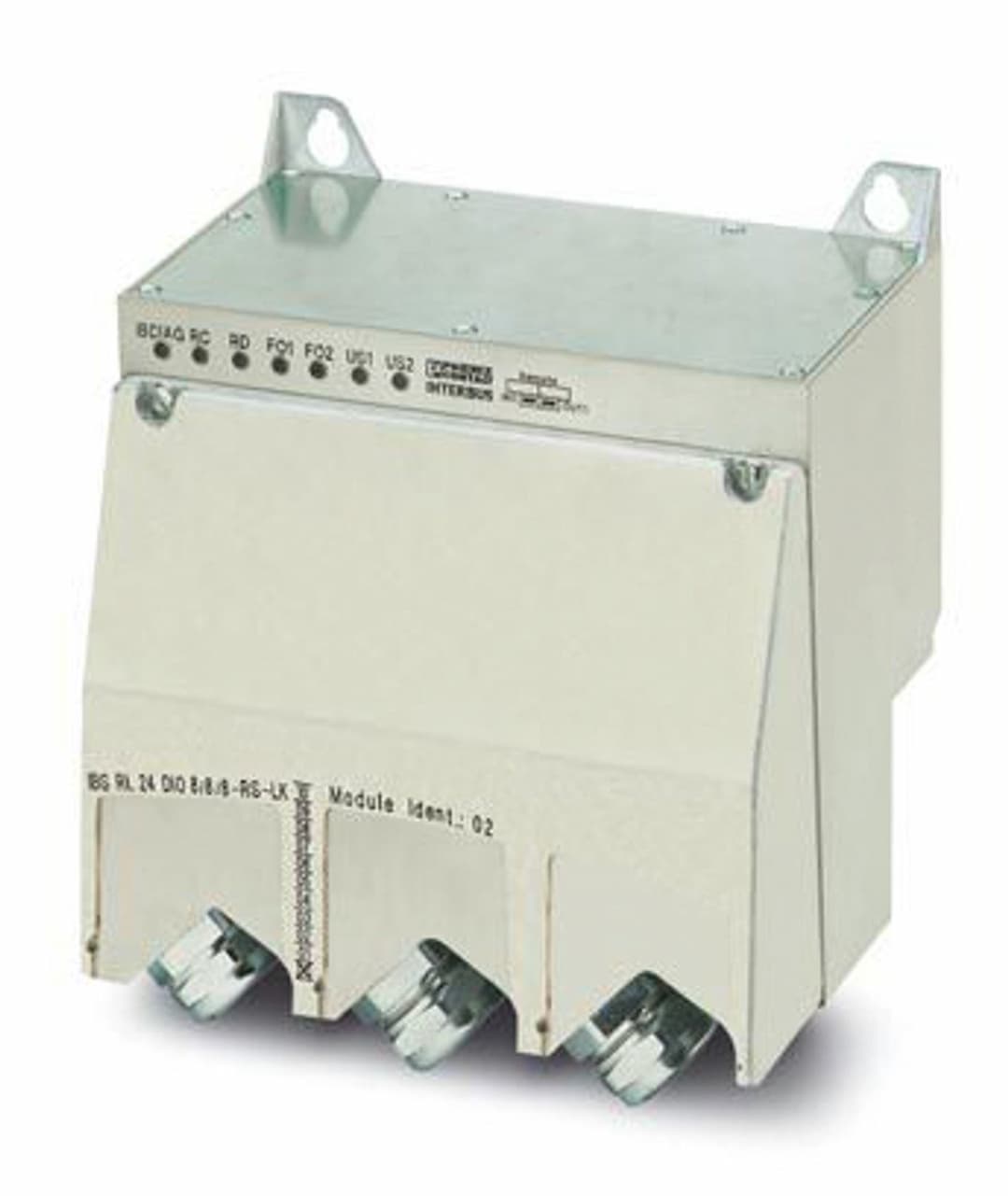

IBS RL 24 DIO 8/8/8 RS-LK
Selling Points
- 1Rugged metal housing with IP67 protection for durability in harsh environments.
- 2Comprehensive diagnostic functions for enhanced system reliability and maintenance.
- 3Fiber optic technology with 2 Mbaud transmission speed for efficient data transfer.
- 4Eight digital inputs and eight digital outputs with electronic short-circuit/overload protection.
- 5Compatible with INTERBUS protocol and suitable for direct installation on welding robots or tool platforms.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Block design | No. of channels | 16 |
ID code (dec.) | 3 | ID code (hex) | 03 |
Length code (hex) | 09 | Length code (dec) | 9 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 1 Byte | Register length | 1 Byte |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) |
Supply current | typ. 120 mA (plus sensor current) | Ripple | Max 3.6 V |
Test voltage: Between bus logic and outputs | 500 V AC, 50 Hz, 1 min | Input name | Digital inputs |
Number of inputs | 8 | Connection technology | 2-, 3-, 4-conductor |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 11 V DC ... 30 V DC |
Typical input current per channel | 3 mA | Delay at signal change from 0 to 1 | 1.5 ms |
Delay at signal change from 1 to 0 | 3.5 ms | Protective circuit | Electronic short-circuit/overload protection |
Output name | Relay output | Number of outputs | 8 |
Output voltage | 24 V | Maximum output current per group | 2 A |
Maximum output current per channel | 0.5 A | Nominal output voltage | 24 V |
Output voltage when switched off | max. 0.5 V | Output current when switched off | 0 A |
Nominal load, inductive | 12 VA (1.2 H, 48 Ω) | Nominal load, lamp | 12 W |
Nominal load, ohmic | 12 W | Maximum operating frequency with ohmic nominal load | max. 1 kHz |
Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
Overcurrent shut-down | min. 0.7 A | Output current with ground connection interrupt when switched off | max. 0 mA |
Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission speed | 500 kbps |
Transmission physics | FO | Width | 185 mm |
Height | 193 mm | Depth | 138 mm |
Note on dimensions | with bus connection plugs and mounting panel | Ambient temperature (operation) | -20 °C ... 55 °C |
Degree of protection | IP67, when screwed together | Note | Seal unused slots/connections to ensure the degree of protection. |
Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
