Product Model

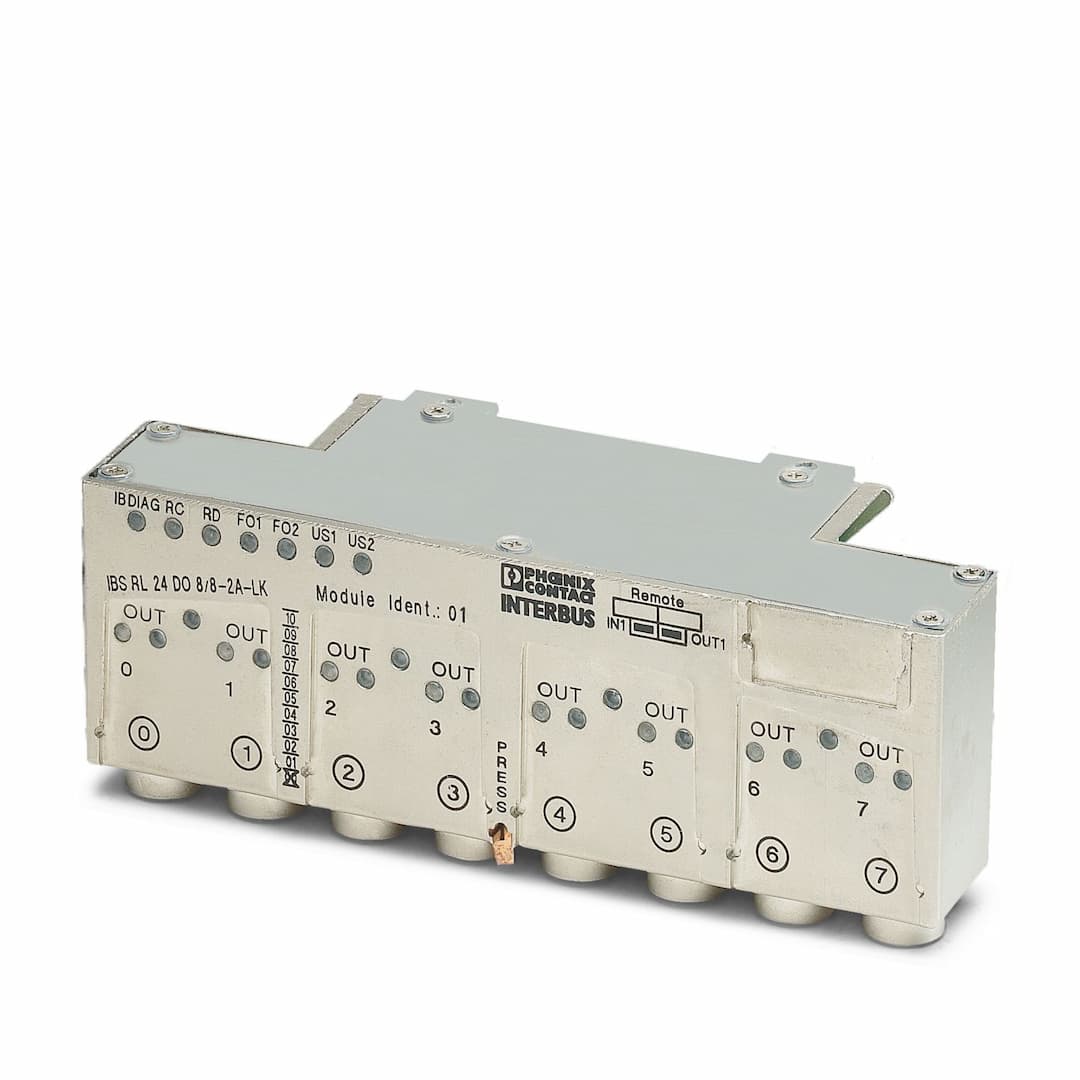

IBS RL 24 DO 8/8-2A-LK
Selling Points
- 1Utilizes 2 Mbps fiber optic transmission for reliable data transfer.
- 2Durable IP67-rated housing for harsh ambient conditions and high system diagnostics.
- 3Eight 24 V DC outputs with 2 A maximum current per channel.
- 4Sensor/actuator connection via 5-pos. M12 female connectors.
- 5Ensures maximum availability with advanced diagnostic capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 179 mm | Height | 67 mm |
Depth | 71 mm | Note on dimensions | with bus connection plugs and mounting panel |
Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission speed | 500 kbps |
Transmission physics | FO | Output name | Digital outputs |
Connection technology | 2-, 3-conductor | Number of outputs | 8 |
Protective circuit | Electronic short-circuit/overload protection for each channel | Output voltage | 24 V DC |
Maximum output current per channel | 2 A | Maximum output current per module | 8 A |
Nominal output voltage | 24 V DC | Output voltage when switched off | max. 1 V |
Output current when switched off | max. 100 µA | Nominal load, inductive | 48 VA (1,2 H, 12 Ω) |
Nominal load, lamp | 48 W | Nominal load, ohmic | 48 W |
Maximum operating frequency with ohmic nominal load | max. 300 Hz | Reverse voltage resistance to short pulses | Limited protection against reverse voltages up to 2 A DC |
Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
Overcurrent shut-down | min. 2.3 A | Output current with ground connection interrupt when switched off | max. 25 mA |
Product type | I/O component | Product family | Ruggedline |
Type | Block design | No. of channels | 8 |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) |
Supply current | typ. 120 mA | Ripple | Max 3.6 V |
Test voltage: Between bus logic and outputs | 500 V AC, 50 Hz, 1 min | Connection method | Push-Pull |
Ambient temperature (operation) | -20 °C ... 55 °C | Degree of protection | IP65/IP67 |
Note | Seal unused slots/connections to ensure the degree of protection. | Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) |
Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 100 % | Permissible humidity (storage/transport) | 95 % (non-condensing) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
