Product Model

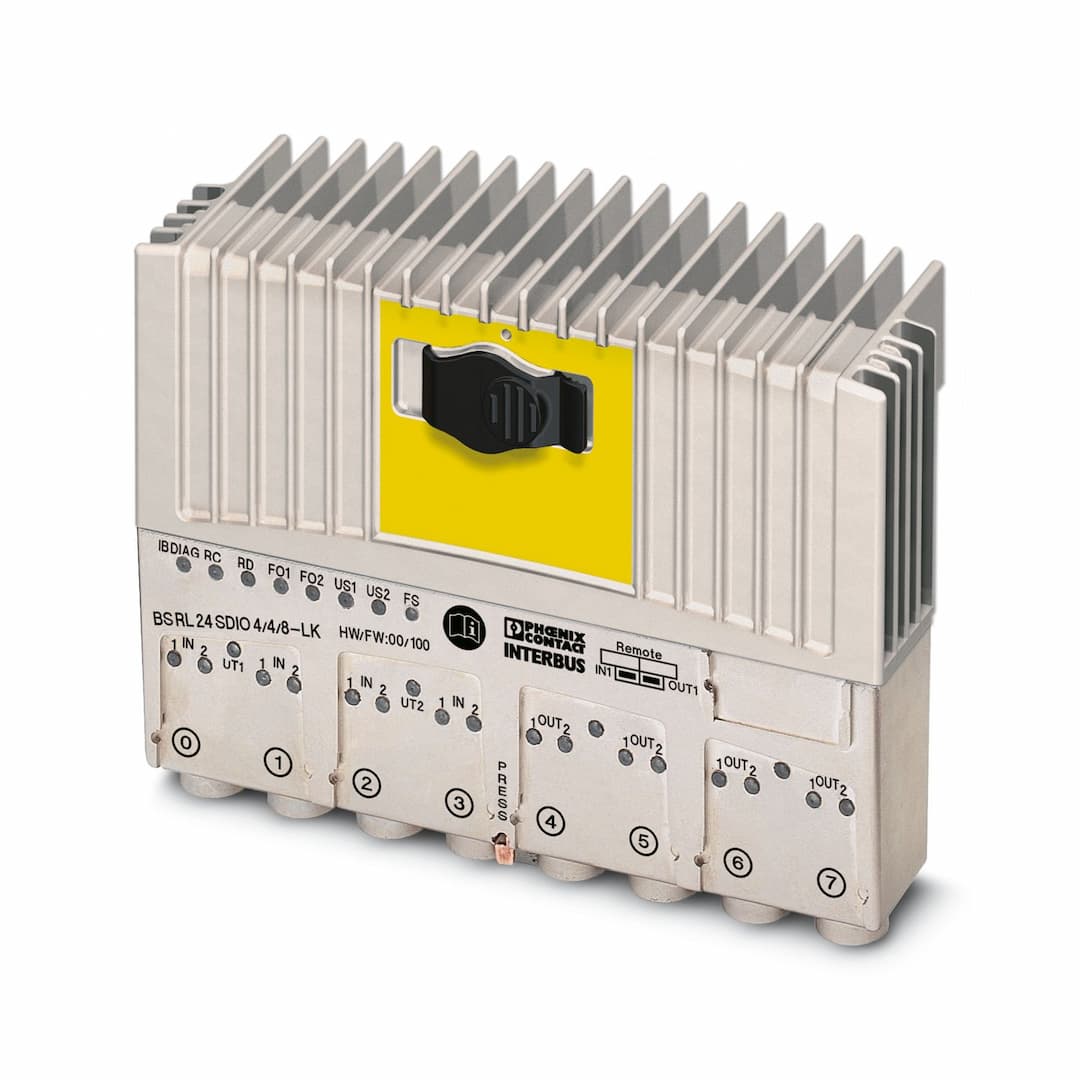

IBS RL 24 SDIO 4/4/8-LK
Selling Points
- 1Rugged and reliable in harsh environments.
- 2Ensures safe operation in safety-critical applications.
- 3Perfect for PLCopen zertifizierte INTERBUS-Safety-Funktionsbausteine.
- 4Compatible with Ruggedline fiber optic cables.
- 5Designed for long-lasting performance in demanding conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission physics | FO |
ID code (dec.) | 39 | ID code (hex) | 27 |
Length code (hex) | 03 | Length code (dec) | 03 |
Input name | Digital inputs | Number of inputs | 8 |
Connection technology | M12 connector | Input voltage | 24 V (parameterizable; see technical data.) |
Input voltage range "0" signal | -3 V DC ... 5 V DC | Input voltage range "1" signal | 11 V DC ... 30 V DC |
Typical input current per channel | 3 mA | Typical response time | See technical data |
Protective circuit | Short-circuit and overload protection | Output name | Digital outputs |
Connection technology | M12 connector | Number of outputs | 6 |
Protective circuit | Overload protection, short-circuit protection of outputs | Output voltage | 24 V DC |
Maximum output current per group | 4 A | Maximum output current per channel | 1 A |
Maximum output current per module / terminal block | 4 A | Maximum output current per module | 4 A |
Nominal output voltage | 24 V DC | Nominal load, inductive | see safety data |
Nominal load, lamp | see safety data | Nominal load, ohmic | see safety data |
Behavior with inductive overload | Output can be destroyed | Product type | I/O component |
Product family | Ruggedline | Application | IB-Safety |
Type | Block design | Transmission medium | FO |
Supply voltage | 24 V DC (see safety data) | Supply voltage | 24 V |
Supply voltage range | 19.2 V DC ... 30 V DC | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP67, when screwed together | Note | Seal unused slots/connections to ensure the degree of protection. |
Air pressure (operation) | 800 hPa ... 1060 kPa | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 2000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
Permissible humidity (storage/transport) | 75 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
