Product Model

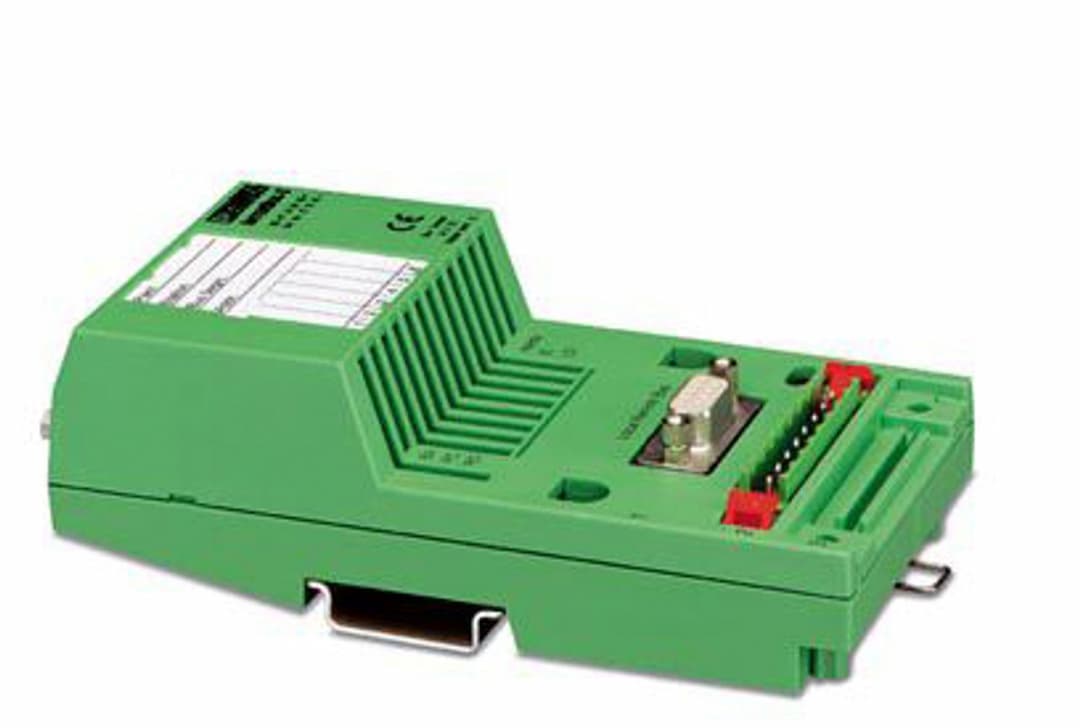

IBS RT 24 BK RB-T
Selling Points
- 1Additional I/Os onboard - Enhance your system's functionality with onboard I/Os.
- 2Copper or fiber optic connection - Choose between reliable copper or high-speed fiber optic connections.
- 3Additional remote/local bus branches - Expand your network with additional remote and local bus branches.
- 4IP20 protection - Ensure reliable operation in harsh environments with IP20 protection.
- 5DIN rail mounting - Easily integrate into your existing DIN rail setup for efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Test section | between incoming / outgoing remote bus 500 V AC 50 Hz 1 min
Supply voltages / Remote bus 500 V AC 50 Hz 1 min
Between supply voltages 500 V AC 50 Hz 1 min | Power dissipation | 2.5 W |
I/O voltage | 24 V DC 5 % (ripple) | I/O voltage range | 19.2 V DC ... 30 V DC |
Typical current consumption | 200 mA | Connection method | D-SUB-9 (2x) |
Width | 75 mm | Height | 146 mm |
Length | 44 mm |
Specifications may be subject to change without notice
