Product Model

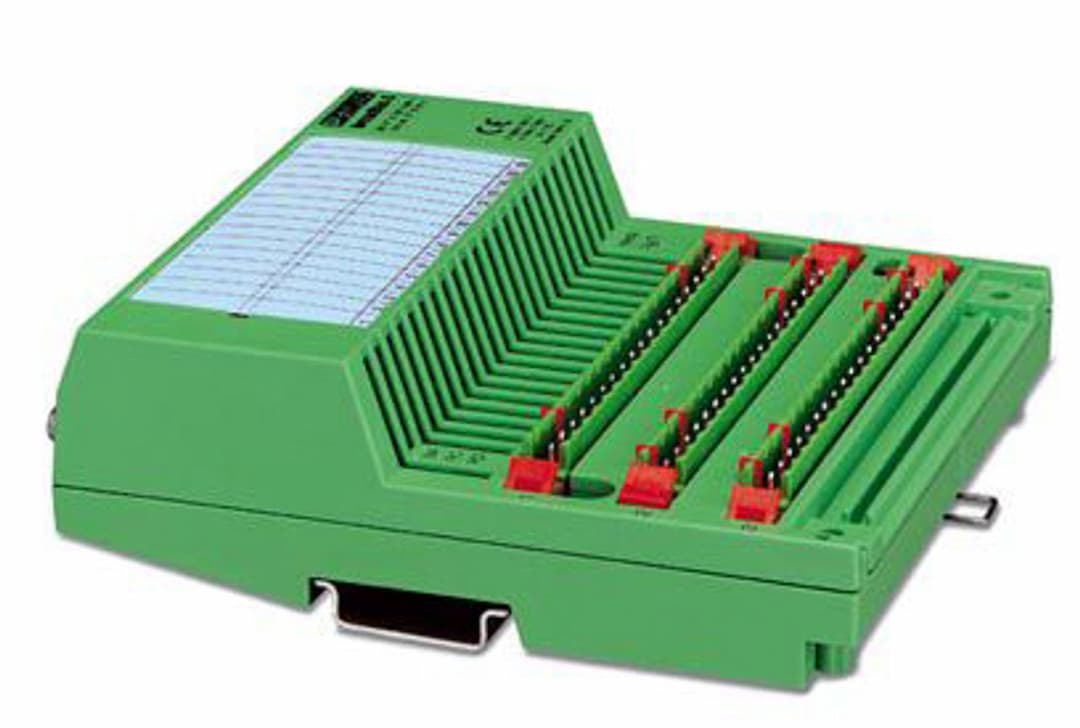

IBS RT 24 DI 16-T
Selling Points
- 1High-Quality Digital Input Module: The IBS RT 24 DI 16-T is designed for reliable performance in industrial settings.
- 216 Inputs, 24 V DC: Equipped with 16 digital inputs and compatible with 24 V DC power.
- 3IP20 Protection: Offers robust protection against environmental factors with an IP20 rating.
- 4Compact Design: Measuring 12.7 cm x 5.1 cm x 15.2 cm, it fits seamlessly into control systems.
- 5Versatile Connectivity: Features 3-conductor connection technology for easy integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power dissipation | 3.5 W | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V DC | Typical current consumption | 100 mA |
Number of inputs | 16 | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 15 V DC ... 30 V DC | Connection technology | 3-conductor (4-conductor as an option) |
Typical input current per channel | 6 mA (at 24 V DC) | Length | 146 mm |
Specifications may be subject to change without notice
