Product Model

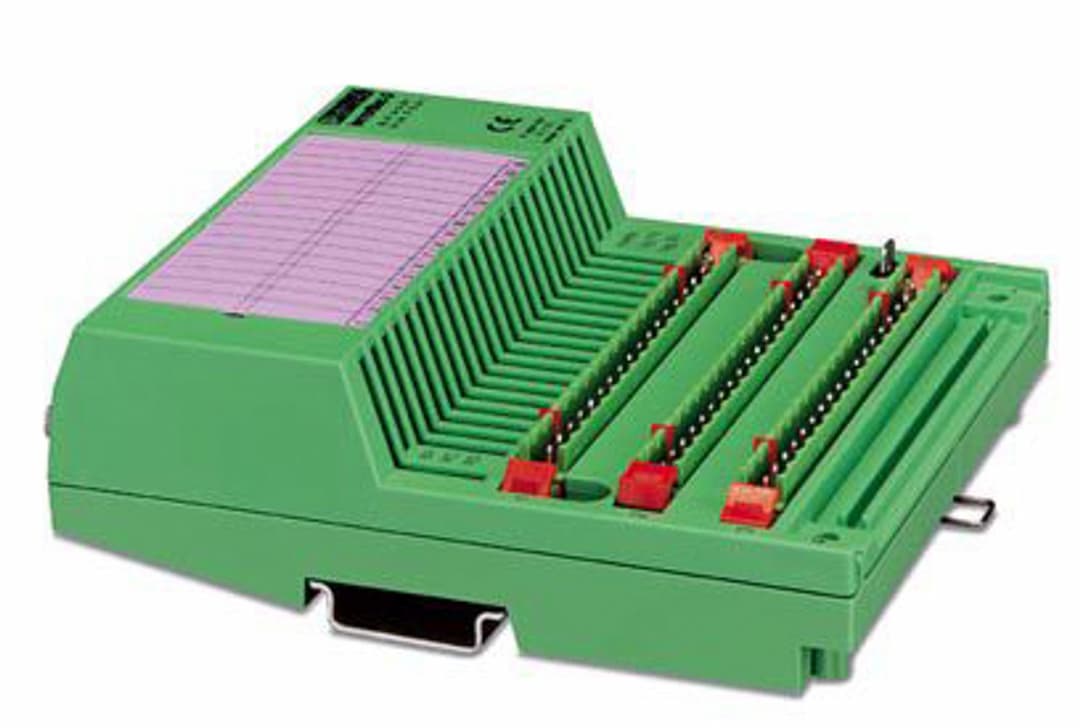

IBS RT 24 DIO 16/16-T
Selling Points
- 1Compact design with integrated bus terminal function for minimal space usage.
- 2Digital inputs and outputs available in 16 channels each, suitable for various industrial applications.
- 3Easy installation with plug-in terminals and D-SUB connectors for vertical wiring.
- 4Quick replacement capability in case of faults or modifications.
- 5Status LEDs and bus diagnostic displays provide real-time status information.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 125 mm | Height | 44 mm |
Length | 146 mm | Color | green |
Connection method | D-SUB-9 | Number of inputs | 16 |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Connection technology | 1-conductor (optional 2, 3, 4-conductor) | Typical input current per channel | 6 mA (at 24 V DC) |
Number of outputs | 16 | Output voltage | 24 V DC (Us (1.2) (w/o external load), 100 mA all outputs "1") |
Product type | I/O component | I/O voltage | ± 24 V DC 5 % (ripple) |
I/O voltage range | 19.2 V DC ... 30 V DC | Typical current consumption | 100 mA |
Specifications may be subject to change without notice
