Product Model

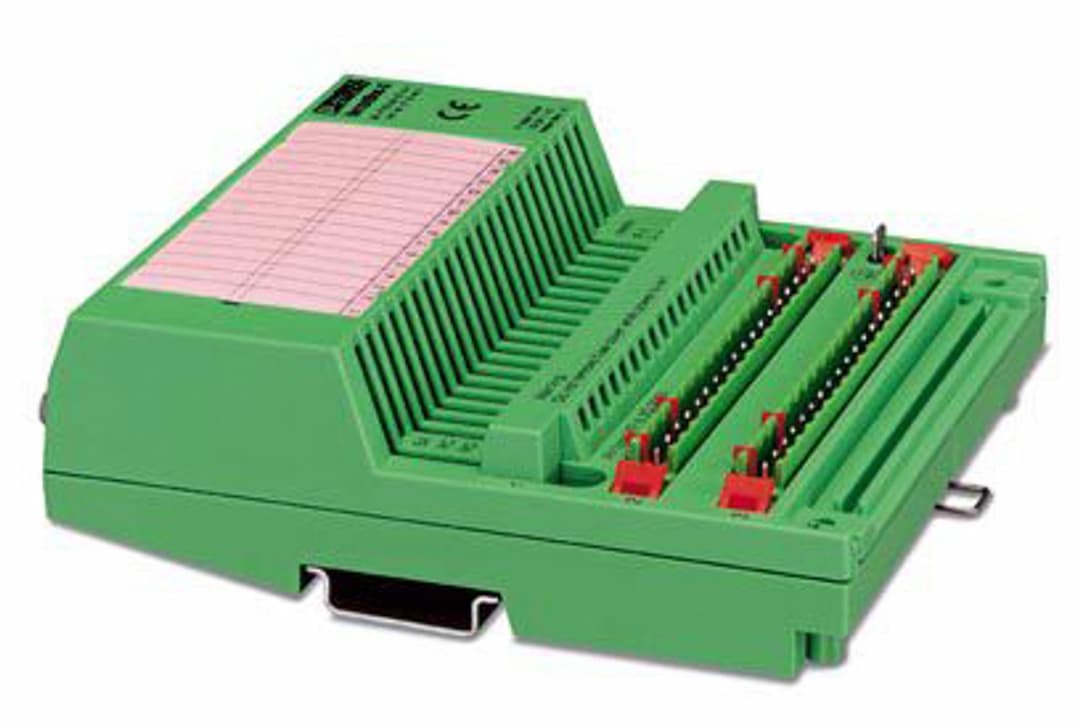

IBS RT 24 DO 16-T
Selling Points
- 1Compact design for easy integration into machines and systems.
- 216 digital outputs with 24 V DC, 500 mA each.
- 3IP20 degree of protection for reliable operation.
- 4Easy wiring with plug-in terminal blocks and D-SUB connectors.
- 5Compatible with INTERBUS-RT bus systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
I/O voltage | 24 V DC | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Typical current consumption | 100 mA |
Number of outputs | 16 | Connection method | D-SUB-9 |
Width | 125 mm | Height | 44 mm |
Length | 146 mm |
Specifications may be subject to change without notice
