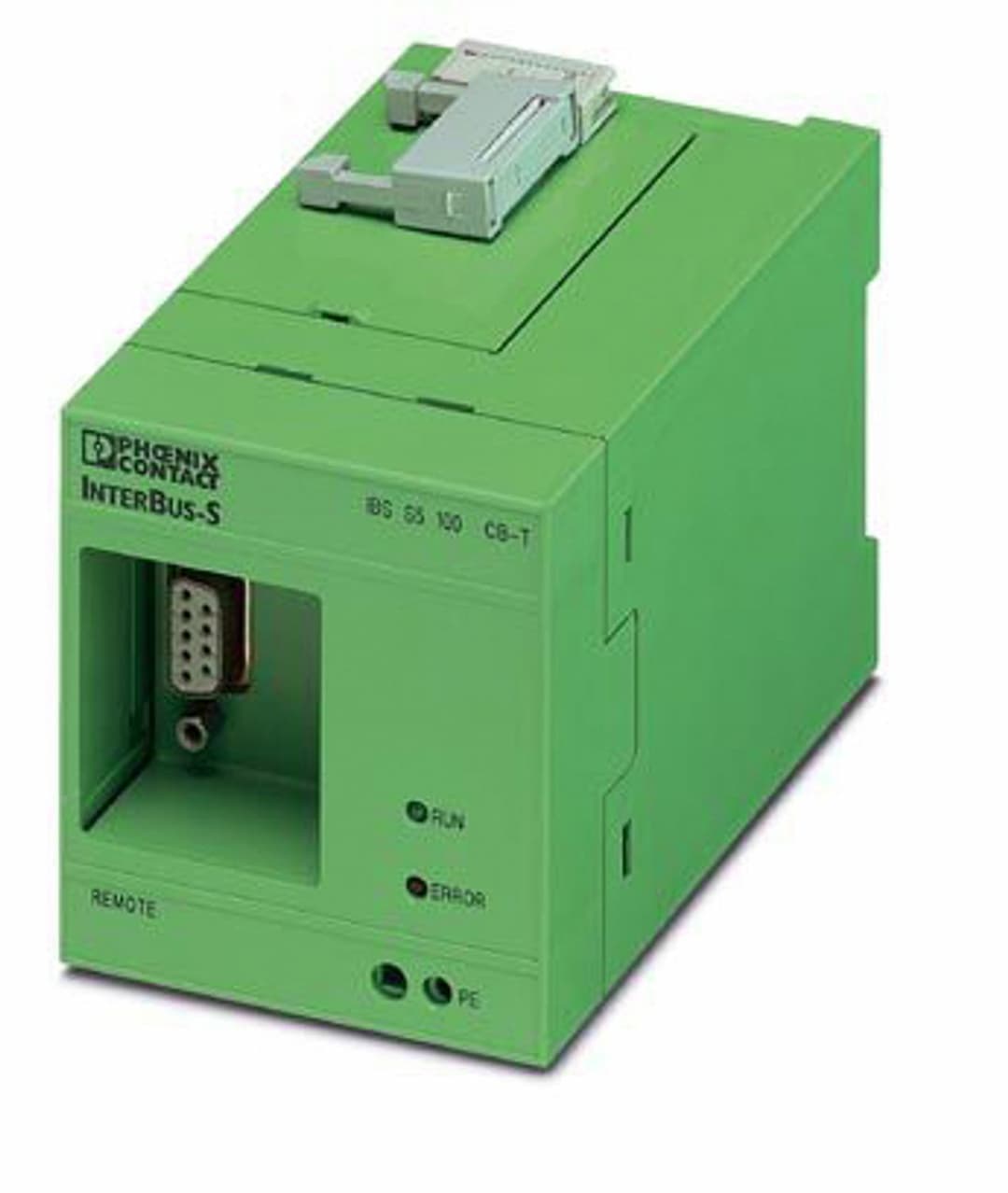

Phoenix Contact IBS S5 100 CB-T Termination Board

Selling Points

1Compatibility with Siemens SIMATIC S5 PLCs: Designed to work seamlessly with Siemens SIMATIC S5 PLCs.
212-Month Warranty: Covered by a comprehensive 12-month warranty for peace of mind.
3Robust Design: Built with durable components for long-lasting performance in demanding environments.
4Local Diagnostics: Features local diagnostics via LED for easy status monitoring and troubleshooting.
5Easy Installation: Simple power supply connection via SIMATIC I/O bus for hassle-free setup.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	PLC controller board	Type	SIMATIC ® S5 95/100 controller board
Occupied areas per board	Up to 480 inputs and 496 outputs in word-oriented address area	Word-oriented address area	Inputs and outputs byte 64 to 127
Number of supported devices	128 (of which 64 are remote bus devices/bus segments)	Number of devices with parameter channel	30 (process data are supported, parameter data are not supported)
Monitored function	Operating status	Optical representation	Green LED
Local diagnostics	Operating status Green LED Error status LED red	Transmission medium	Copper
Maximum power dissipation for nominal condition	max. 5 W	Supply voltage	9 V DC
Supply voltage range	7 V DC ... 11 V DC (including ripple)	Power supply connection	Via SIMATIC I/O bus
Residual ripple	50 mV	Typical current consumption	550 mA
Interrupts	Are not supported	Connection method	9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation
Transmission length	105 mm	Connection method	Siemens SIMATIC S5 90U, 95U and 100U
Width	67.5 mm	Height	75 mm
Depth	105 mm	Color	green
Degree of protection	IP00	Permissible humidity (operation)	70 % (non-condensing in acc. with DIN 40040, class F)
Mounting type	In the host system

Specifications may be subject to change without notice
