Product Model

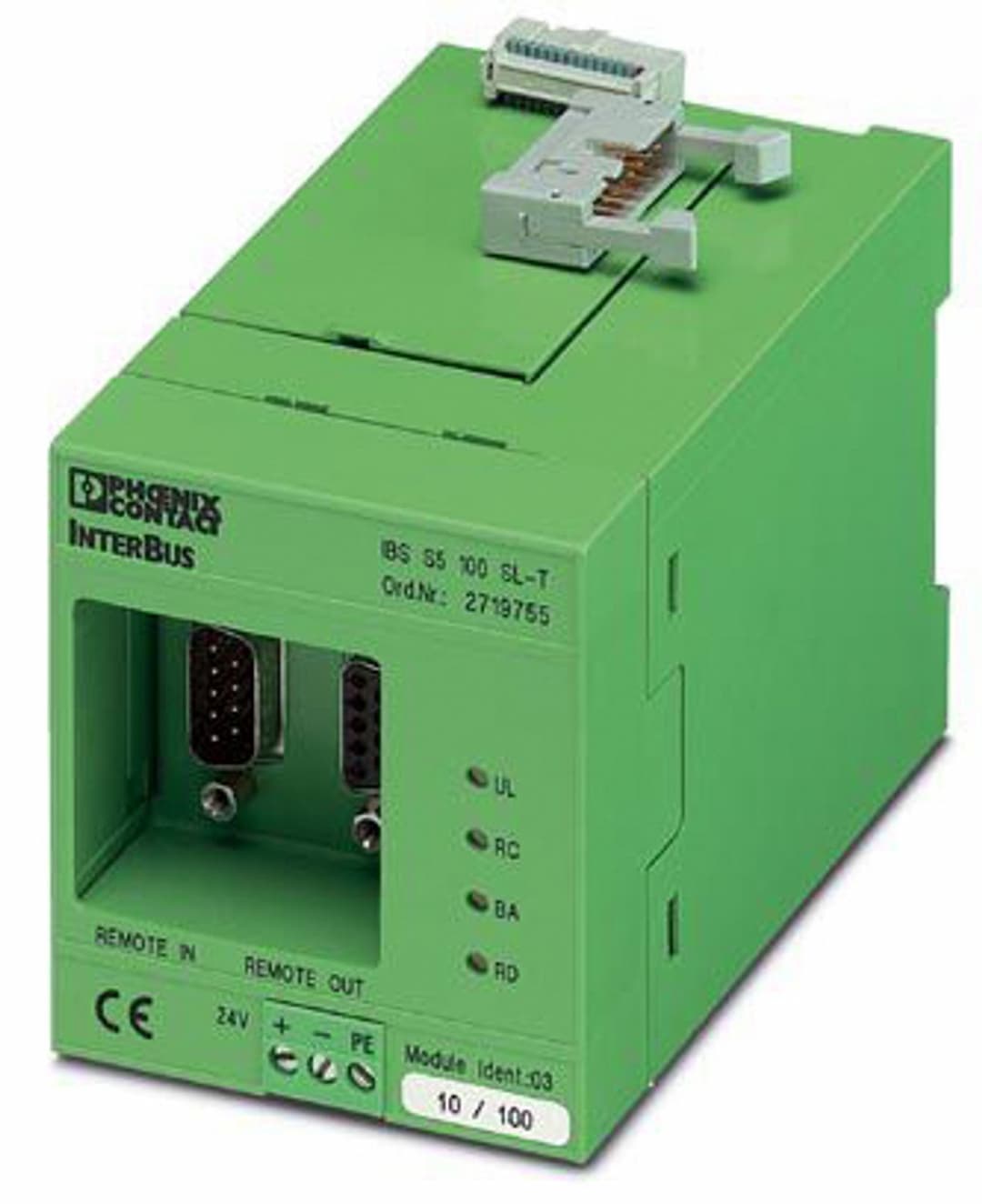

IBS S5 100 SL-T
Selling Points
- 124VDC Slave Interface Module: Designed for seamless integration with PLC systems.
- 2Durable Construction: Built to withstand industrial environments with high reliability.
- 3Manufacturer's Guarantee: Ensured by Phoenix Contact for quality and performance.
- 4Easy Installation: Simplified setup with clear documentation and accessories.
- 5Global Compatibility: Suitable for worldwide use with express delivery options available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Format | Slots: 0, 2, 4, 6, controller-dependent |
Number of input/output words to fieldbus system | 1 to 8 words can be set via switch | Number of input/output words to control system | 8 words in analog/word-oriented area |
Designation | UL, RC, BA, RD | Monitored function | INTERBUS |
Optical representation | Status display via LED | Local diagnostics | UL, RC, BA, RD INTERBUS Status display via LED |
Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 1.35 W |
Supply voltage | 9 V DC | Supply voltage range | 20 V DC ... 30 V DC (including ripple) |
Power supply connection | Via SIMATIC I/O bus | Residual ripple | 3.6 V |
Max. current consumption | 400 mA | Typical current consumption | 150 mA |
Connection method | D-SUB-9 female/D-SUB-9 male | Transmission length | 105 mm |
Connection method | Siemens SIMATIC S5 90U, 95U and 100U | Width | 67.5 mm |
Height | 75 mm | Depth | 105 mm |
Width / Height / Depth | 67.5 mm / 75 mm / 105 mm () | Color | green |
Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
