Product Model

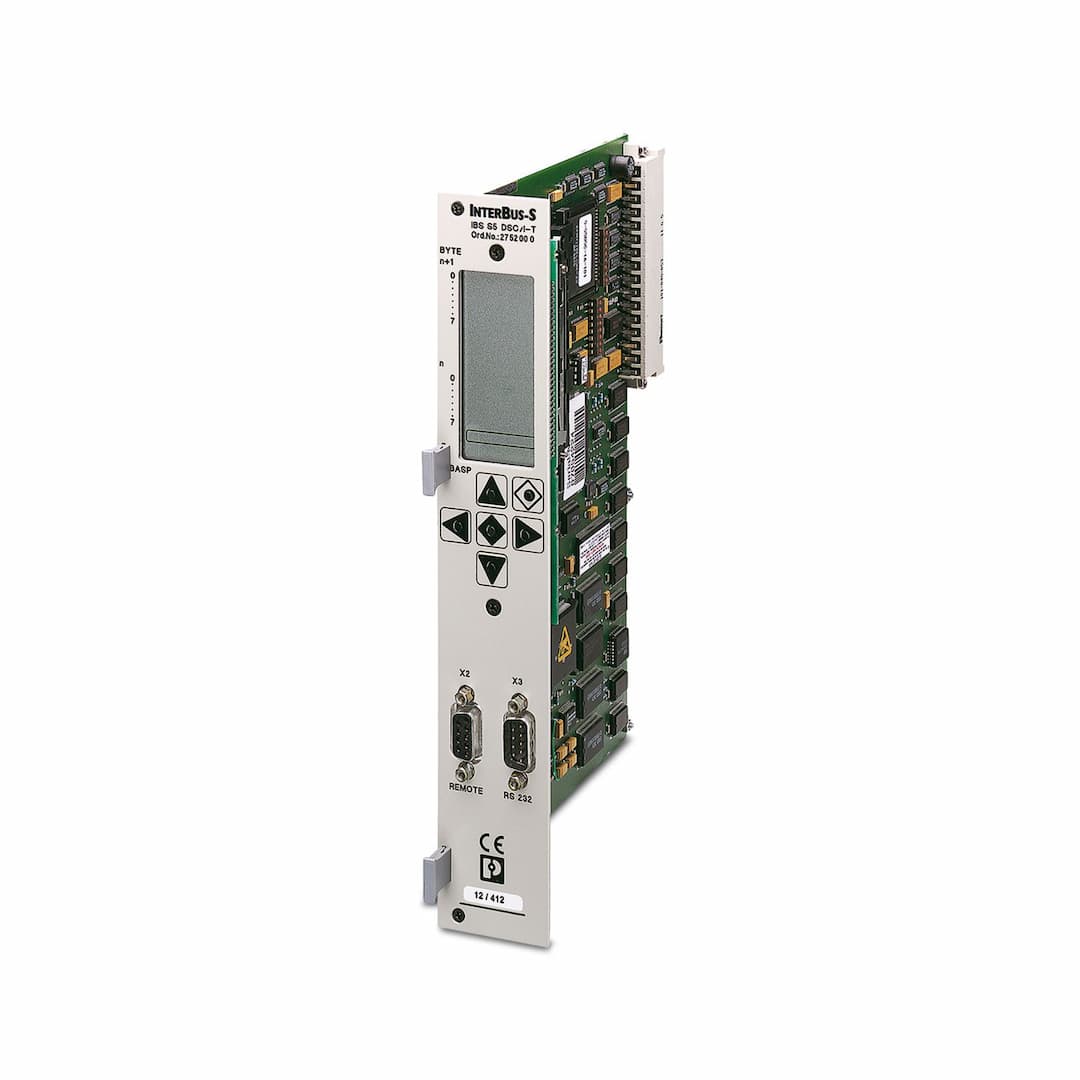

IBS S5 DSC/I-T
Selling Points
- 1Electrical Isolation: Ensures safe operation by isolating electrical components.
- 2Advanced Diagnostics: Provides real-time monitoring via a four-line LCD display.
- 3Compatibility: Designed for Siemens SIMATIC S5 115/135/155 controllers.
- 4High Power Dissipation: Handles up to 7.5 W under nominal conditions.
- 5Versatile Connectivity: Supports INTERBUS-Master with up to 62 parameter channels and RS-232-C interface.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Type | SIMATIC ® S5 115/135/155 controller board |
Set comprises | 2751373 IBS S5 DSC SYSKIT
2751386 IBS S5 DSC SYSKIT E | Format | 2 narrow slots |
Occupied areas per board | adjustable | P-area | 0 ... 255 (inputs and outputs) |
Q area | 0 ... 255 (inputs and outputs) | Number of devices with parameter channel | max. 62 |
Monitored function | Operating status | Optical representation | Via four-line LCD |
Configuration tool | CMD from Version 4.0x | Diagnostics tool | DIAG+ from version 1.0x |
Local diagnostics | Operating status Via four-line LCD
Error status Via four-line LCD
I/O status Via four-line LCD | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 7.5 W | Supply voltage | 5 V DC |
Supply voltage range | 4.8 V DC ... 5.3 V DC (including ripple) | Power supply connection | Via SIMATIC I/O bus |
Residual ripple | 2.2 mV | Typical current consumption | 1.5 A |
Interrupts | Are supported | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | Siemens SIMATIC S5 115U (requires adapter capsule 6E5S 491-OLB11) - 155U, 130 WB, 150S |
Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
