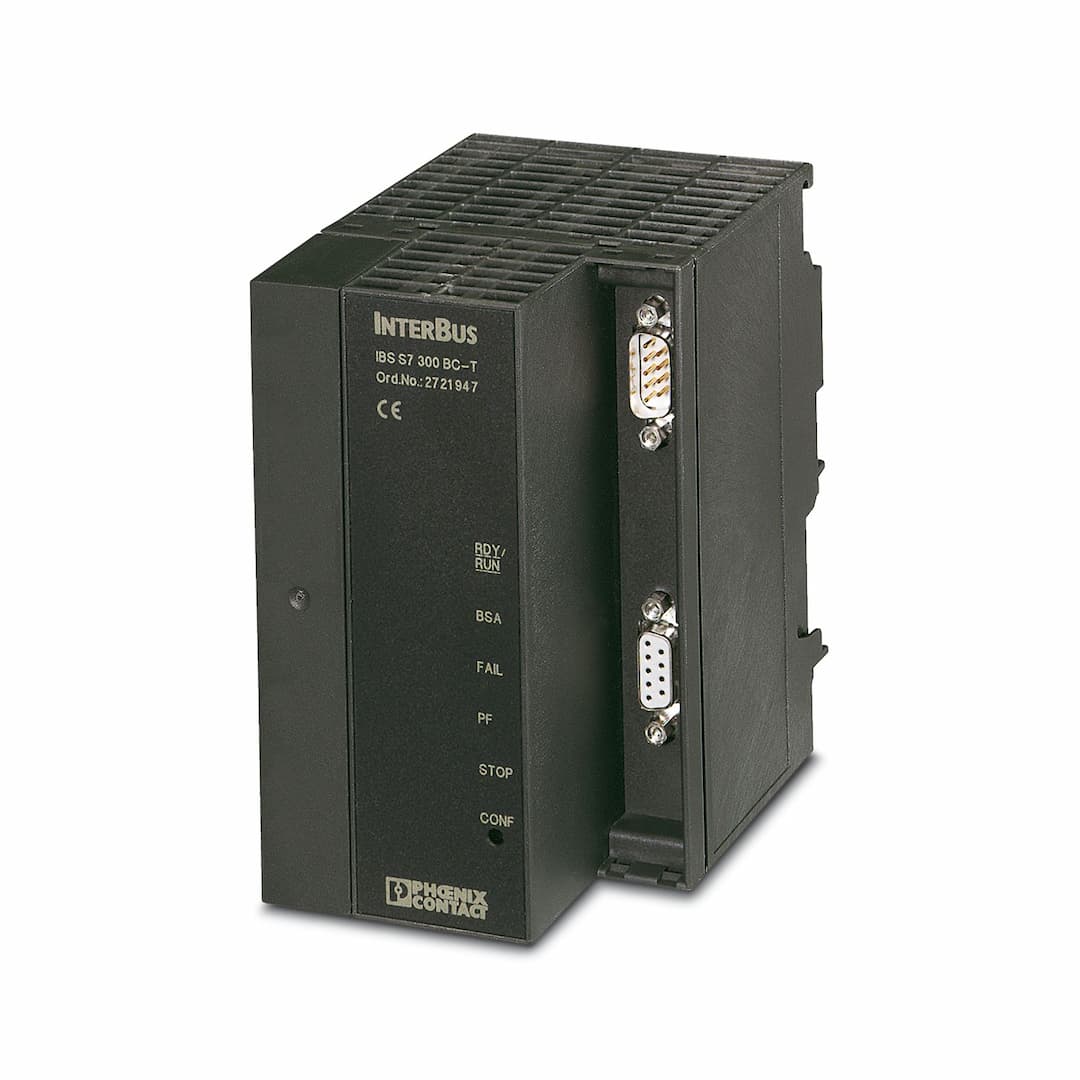

Phoenix Contact IBS S7 300 BC-T

Selling Points

  • 1Seamless Integration with Siemens SIMATIC S7-300: Compatible with various CPU types (312 to 318) for smooth operation.
  • 2High-Performance I/O Capabilities: Supports up to 256 devices, 16 device levels, and 3840 I/O points.
  • 3Easy Startup with "Plug & Play": Simplifies installation and reduces setup time.
  • 4Robust Diagnostic Features: Includes diagnostic LEDs and firmware download via RS-232 for efficient troubleshooting.
  • 5Compact and Space-Saving Design: Measures 80 x 125 x 110 mm, ensuring easy installation in various industrial environments.
Product Details
IBS S7 300 BC-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Type
SIMATIC® S7 300 controller board
Set comprises
2721934 IBS S7 300 B SYSKIT E 2721921 IBS S7 300 B SYSKIT
Format
1 slot
Control system
SIMATIC® S7-300 controllers
Occupied analog address area
16 bytes inputs and 16 bytes outputs
INTERBUS I/O data
240 Byte
Number of devices with parameter channel
parameter data (PCP communication) are not supported.
Designation
RDY/RUN, PF, BSA, FAIL, STOP
Monitored function
INTERBUS
Optical representation
Status display via LED
Control system
SIMATIC® S7-300 controllers
Engineering tool
STEP 7 from version 5.x
Configuration tool
CMD from Version 4.0x
Diagnostics tool
DIAG+ from version 1.0x
Application interface
S7 I/O driver
Local diagnostics
RDY/RUN, PF, BSA, FAIL, STOP INTERBUS Status display via LED
Transmission medium
Copper
Maximum power dissipation for nominal condition
max. 10 W
Supply voltage
24 V DC
Power supply connection
Via SIMATIC I/O bus
Typical current consumption
415 mA
Connection method
SIMATIC® S7-300-I/O-Bus
Connection method
9-pos. D-SUB socket strip
Transmission speed
500 kbps / 2 Mbps
Connection method
RS-232-C, D-SUB male connector
Width
80 mm
Height
125 mm
Depth
110 mm
Width / Height / Depth
80 mm / 125 mm / 110 mm (1 slot)
Color
black
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 60 °C (0 °C ... 40 °C (vertical installation))
Ambient temperature (storage/transport)
-25 °C ... 65 °C
Permissible humidity (operation)
30 % (up to 75 %, without condensation)
Permissible humidity (storage/transport)
30 % (up to 95 %, no condensation)
Air pressure (operation)
860 hPa ... 1080 kPa (up to 1500 m above sea level)
Air pressure (storage/transport)
660 hPa ... 1080 kPa (up to 3500 m above sea level)
Mounting type
In the host system
