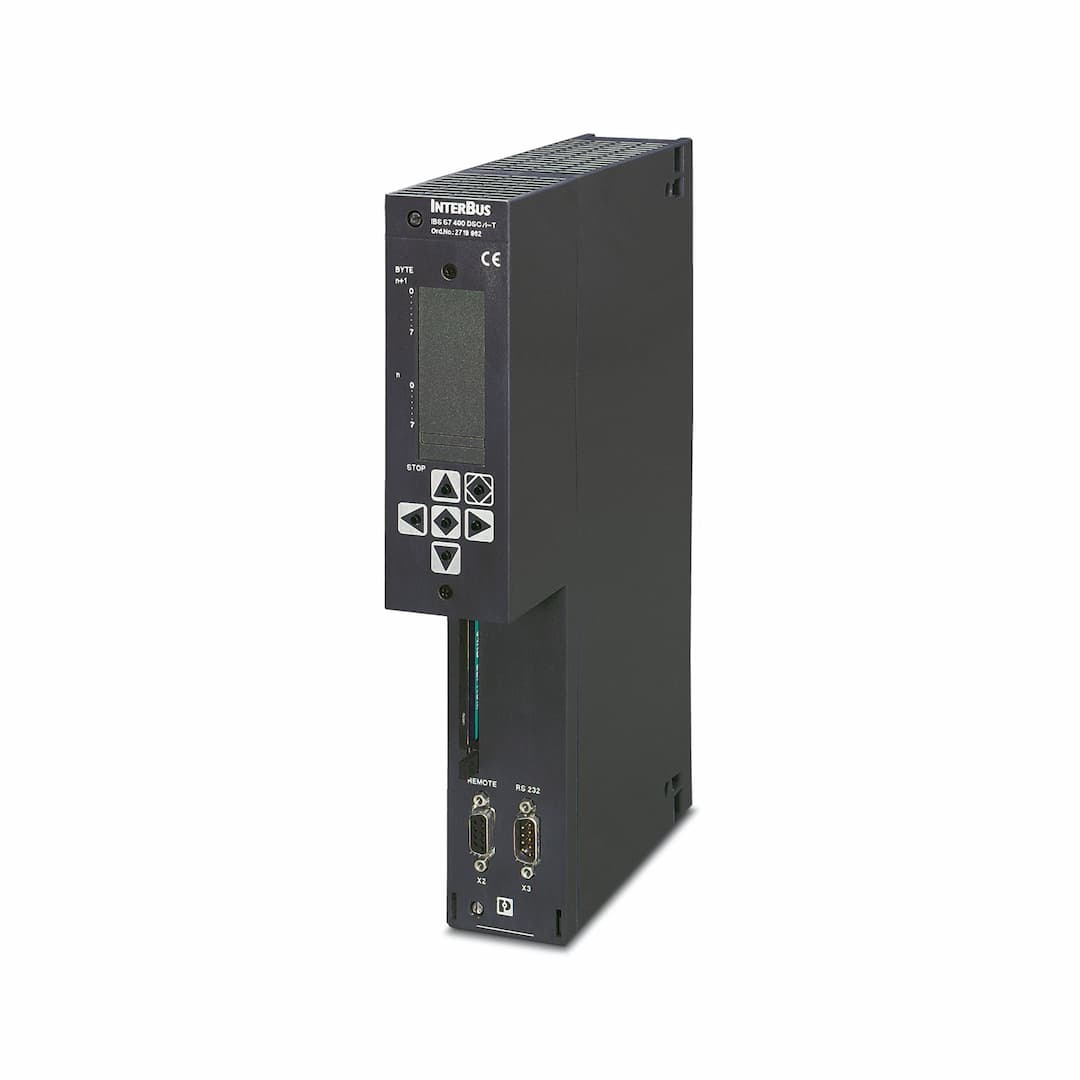

Phoenix Contact IBS S7 400 DSC/I-T

Selling Points

  • 1Efficient Data Processing: Supports up to 8192 I/O points and 2 Mbaud transmission speed.
  • 2Easy Operation: Features a user-friendly interface with a four-line LCD display for clear diagnostics.
  • 3Flexible Configuration: Parameterization via CMD software and "Plug & Play" startup technology.
  • 4High-Performance Diagnostics: Displays operational and error states in plain text for quick troubleshooting.
  • 5Robust Design: Meets EMC Class A standards and operates within a wide ambient temperature range (0°C to 60°C).
Product Details
IBS S7 400 DSC/I-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Type
SIMATIC ® S7 400 controller board
Format
2 slots
Control system
SIMATIC® S7-400 controllers
Number of devices with parameter channel
max. 126 (512 words)
Monitored function
Operating status, error status, I/O status
Optical representation
Via four-line LCD
Control system
SIMATIC® S7-400 controllers
Engineering tool
STEP 7 from version 5.x
Configuration tool
CMD from Version 4.0x Config+ from version 1.00 onwards
Diagnostics tool
DIAG+ from version 1.0x
Application interface
S7 I/O driver S7 function blocks
Local diagnostics
Operating status, error status, I/O status Via four-line LCD
Transmission medium
Copper
Maximum power dissipation for nominal condition
max. 4.5 W
Supply voltage
5 V DC
Power supply connection
Via SIMATIC I/O bus
Typical current consumption
0.9 A
Interrupts
Are supported
Connection method
SIMATIC® S7-400 P-Bus
Transmission speed
500 kbps / 2 Mbps (can be switched)
Connection method
9-pos. D-SUB socket strip
Transmission speed
500 kbps / 2 Mbps500 kbps 2 Mbps (can be switched)
Connection method
RS-232-C, D-SUB male connector
Width / Height / Depth
50 mm / 290 mm / 210 mm (2 slots)
Color
black
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 60 °C
Ambient temperature (storage/transport)
-25 °C ... 65 °C
Permissible humidity (operation)
30 % (up to 75 %, without condensation)
Permissible humidity (storage/transport)
30 % (up to 95 %, no condensation)
Air pressure (operation)
860 hPa ... 1080 kPa (up to 1500 m above sea level)
Air pressure (storage/transport)
660 hPa ... 1080 kPa (up to 3500 m above sea level)
Mounting type
In the host system
