Product Model

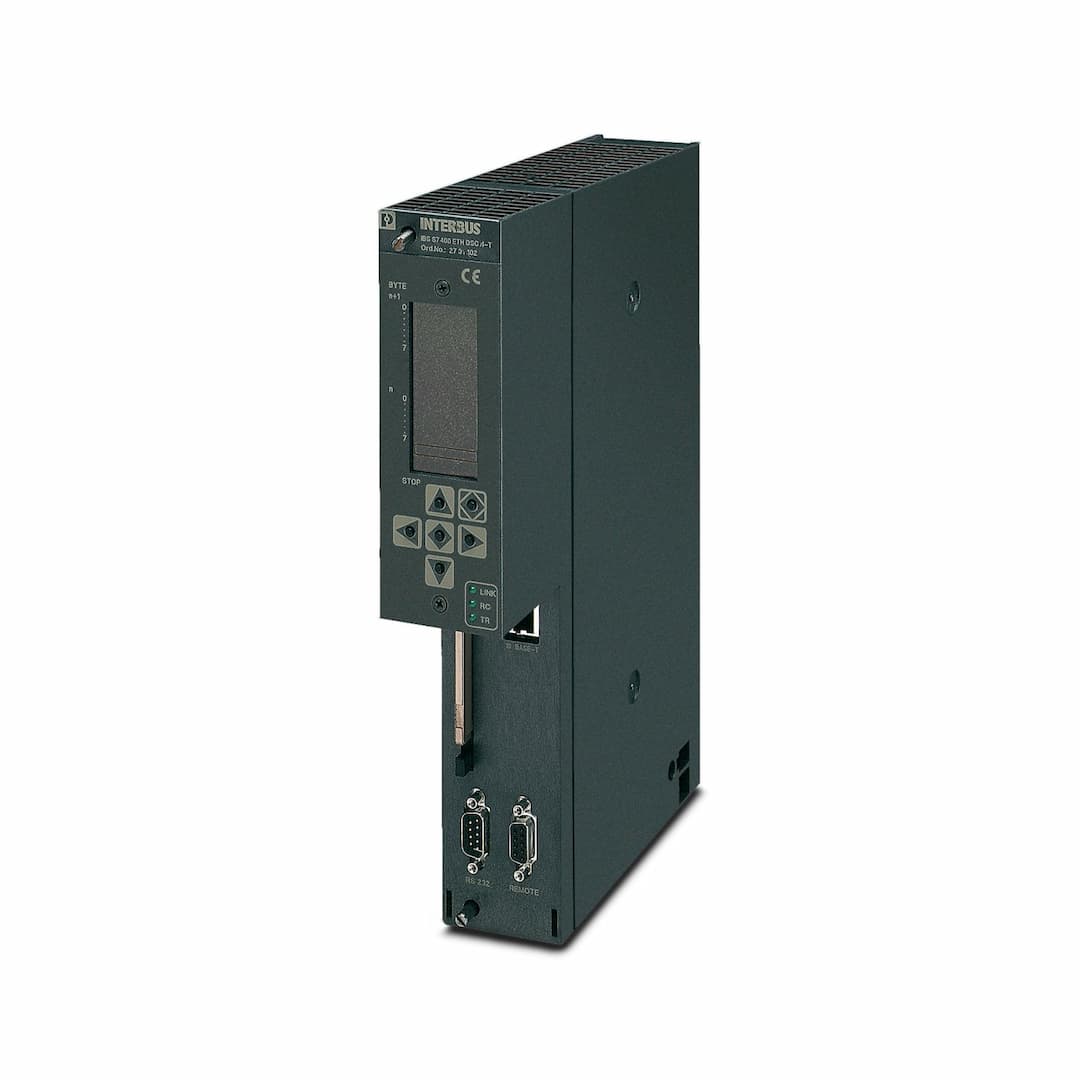

IBS S7 400 ETH DSC/I-T
Selling Points
- 1Easy Integration with Siemens SIMATIC S7-400 PLCs
- 2Advanced Data Preprocessing and Synchronous Operating Modes
- 3Efficient Diagnostics with Plain Text Display
- 4Parameterization via Easy-to-Use IBS CMD Software
- 5High-Speed INTERBUS Transmission with Up to 2 Mbaud
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Type | SIMATIC ® S7 400 controller board |
Set comprises | 2740067 IBS S7 400 ETH SYSKIT
2740070 IBS S7 400 ETH SYSKIT E | Format | 2 slots |
Control system | SIMATIC® S7-400 controllers | Number of devices with parameter channel | max. 126 (512 words) |
Monitored function | Operating status, error status, I/O status | Optical representation | Via four-line LCD |
Control system | SIMATIC® S7-400 controllers | Engineering tool | STEP 7 from version 5.x |
Configuration tool | CMD from version 4.5x
Config+ from version 1.00 onwards | Diagnostics tool | DIAG+ from version 1.0x |
Application interface | S7 I/O driver
S7 function blocks | Local diagnostics | Operating status, error status, I/O status Via four-line LCD
LINK, RECEIVE, TRANSMIT Ethernet Status display via LED |
Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 12.5 W |
Supply voltage | 5 V DC | Power supply connection | Via SIMATIC I/O bus |
Typical current consumption | 2.5 A | Interrupts | Are supported |
Connection method | SIMATIC® S7-400 P-Bus | Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
Connection method | 9-pos. D-SUB socket strip | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
Connection method | RS-232-C, D-SUB male connector | Connection method | 10/100Base-T via RJ45 |
Width | 50 mm | Height | 290 mm |
Depth | 210 mm | Width / Height / Depth | 50 mm / 290 mm / 210 mm |
Color | black | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 65 °C |
Permissible humidity (operation) | 30 % (up to 75 %, without condensation) | Permissible humidity (storage/transport) | 30 % (up to 95 %, no condensation) |
Air pressure (operation) | 860 hPa ... 1080 kPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 kPa (up to 3500 m above sea level) |
Mounting type | In the host system |
Specifications may be subject to change without notice
