Product Model

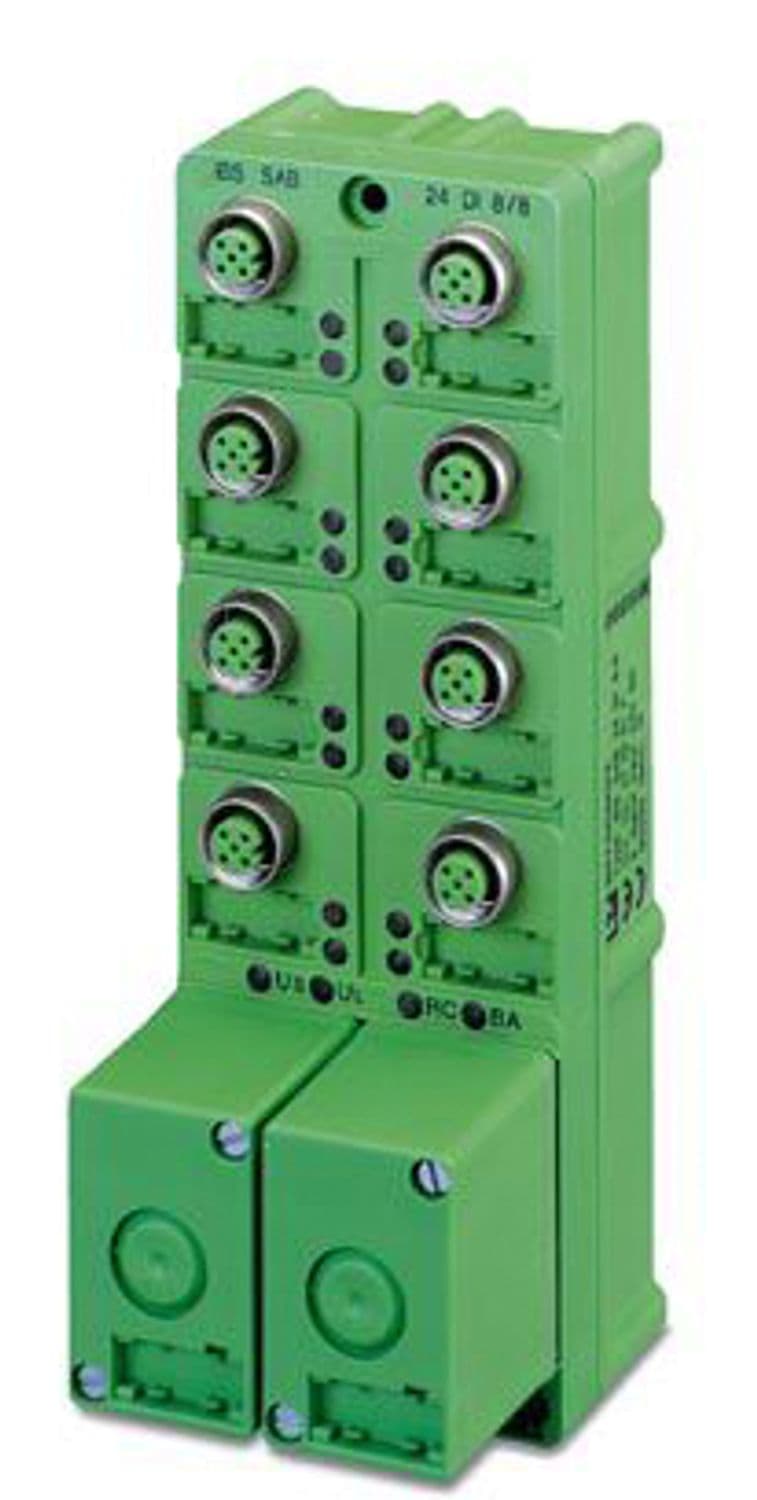

IBS SAB 24 DIO 8/4/4
Selling Points
- 1Reliable Distributed I/O Device: Designed for industrial applications, ensuring consistent performance.
- 28 Digital Outputs: Provides ample output options for various control systems.
- 34 Digital Inputs: Offers flexible input configurations for sensor and actuator integration.
- 4IP67 Protection: Built with durable materials, resistant to harsh environments and moisture.
- 5Easy Integration: Compatible with INTERBUS system, simplifying system setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
I/O voltage | ± 24 V DC 5 % (ripple) | I/O voltage range | 20 V DC ... 30 V DC |
Max. current consumption | 500 mA (at 24 V DC (with load)) | Typical current consumption | 100 mA (from the installation remote bus) |
Number of inputs | 4 | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Protective circuit | Reverse polarity protection |
Connection method | 5-pos. M12 sensor connector, female | Connection technology | 4-conductor |
Typical input current per channel | 5 mA | Number of outputs | 4 |
Output voltage | U | Protective circuit | Short-circuit protection |
Conductor cross section, rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | SAB connector hood with MINI-COMBICON |
Transmission physics | Copper | Transmission length | 188 mm |
Width | 61 mm | Height | 77 mm |
Length | 188 mm | Color | green |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
