Product Model

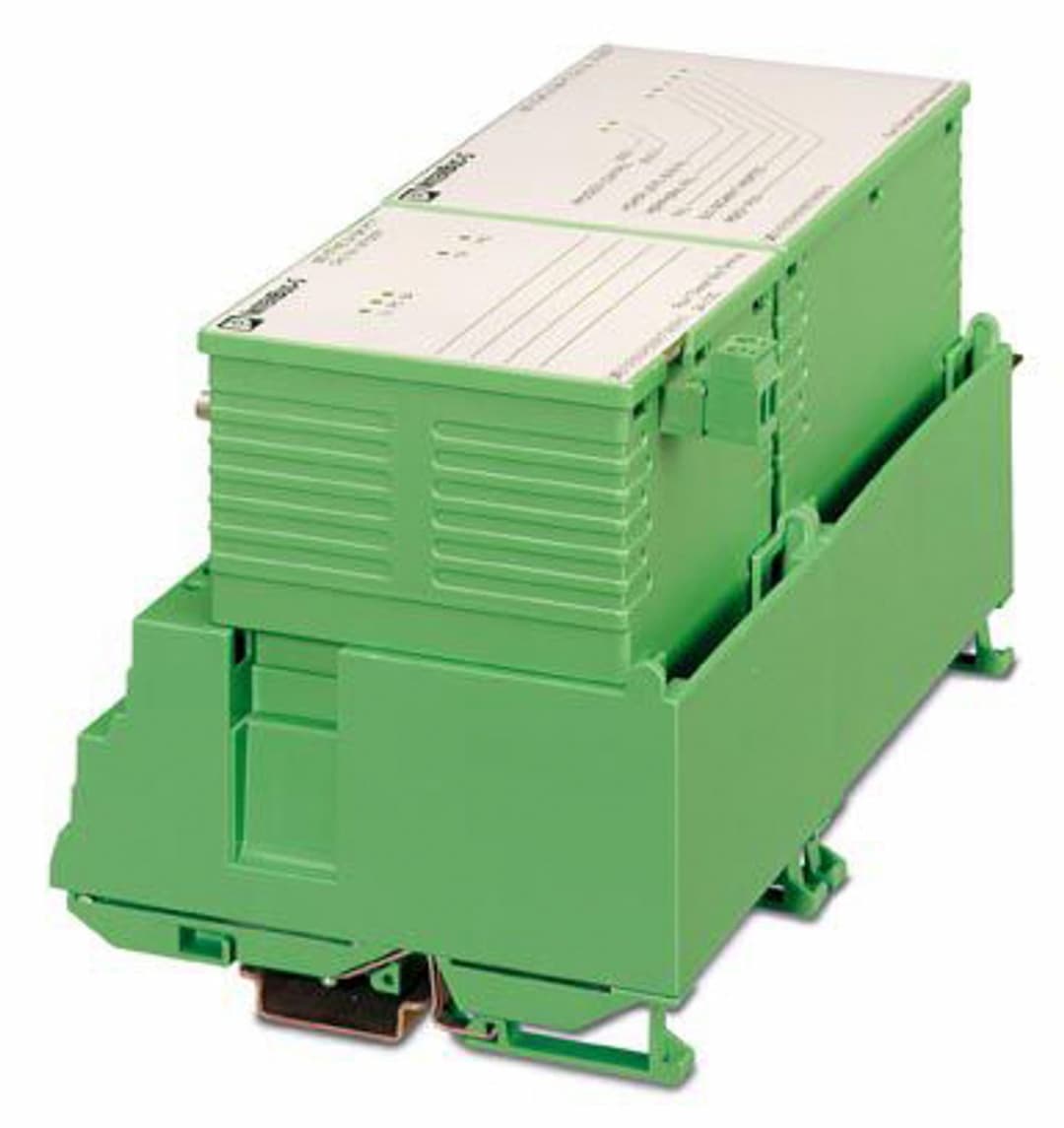

IBS ST 24 RFC-T
Selling Points
- 1High-Performance INTERBUS Terminal Module: Designed for robust and reliable data transmission.
- 2Additional I/Os Onboard: Enhance your system with extra input/output points.
- 3Copper or Fiber Optic Connection: Flexibility in choosing between copper and fiber optic connections.
- 4Remote/Local Bus Branches: Simplify system configuration with additional bus interfaces.
- 5IP20 Protection and Compact Design: Ensures safe operation in industrial environments with a compact footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Retentive data storage | NVRAM | Program memory | typ. 384 kByte (32 K instructions (IL)) |
Number of control tasks | 8 | Number of parameter data | 0 ... 4 words (configurable) |
Designation | UL, RC, BA, TR, RD | Monitored function | Bus terminal module |
Optical representation | Status display via LED | Engineering tool | PC Worx 3 |
Power consumption | 8 W (without ST module expansions) | Local diagnostics | UL, RC, BA, TR, RD Bus terminal module Status display via LED
FCRUN, SYSFAIL, RDY/RUN, BSA, FAIL, PF Submaster Status display via LED |
Protective circuit | Polarity reversal protection of the supply voltage; electronic | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 15 W | Supply voltage | 24 V DC |
Supply voltage range | 18.5 V DC ... 30.5 V DC | Residual ripple | ± 1.2 V |
Max. current consumption | 500 mA (all ST terminal blocks) | Connection method | Pluggable screw terminal block |
Connection method | Remote bus IN and OUT (D-SUB 9, higher-level remote bus) on bus terminal module | Connection method | Remote bus OUT (D-SUB 9) or alternatively INTERBUS-ST local bus on submaster |
Color | green | Mounting type | DIN rail mounting |
