Product Model

IBS STME 24 BK DIO 8/8/3-T

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

23600

In Stock
Last updated: 2025/4/17
View Specifications

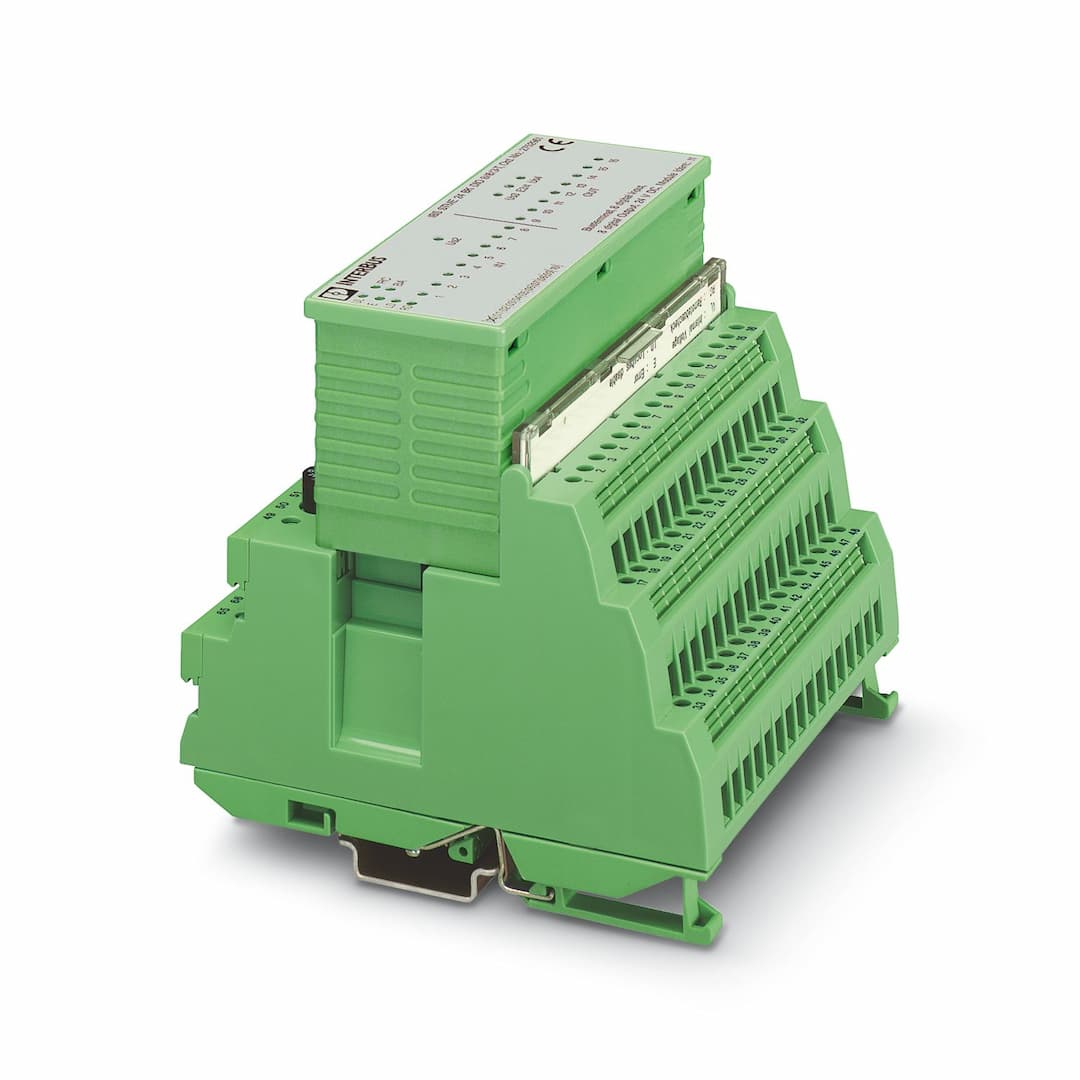

Phoenix Contact IBS STME 24 BK DIO 8/8/3-T

Selling Points

  • 1118 mm x 117 mm x 116 mm dimensions for space-efficient installations.
  • 28 digital inputs and 8 digital outputs with 500 mA output current per channel.
  • 3IP20 protection, overload protection, and short-circuit protection for reliable operation.
  • 4Screw-cage terminal blocks or FLK connectors for flexible input/output connections.
  • 5Operates from 0°C to 55°C with 75% average humidity, making it suitable for various environments.
Product Details
IBS STME 24 BK DIO 8/8/3-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Connection method
9-pos. D-SUB plug/socket
Designation connection point
Incoming/Outgoing Remote Bus
Number of positions
9
Connection method
ST local bus connector
Transmission speed
500 kbps
Output name
Digital outputs
Connection method
Screw-cage terminal blocks or FLK connectors
Connection technology
3-conductor
Product type
I/O component
Product family
Smart Terminal ST
Type
modular INTERBUS Smart Terminal
Connection method
Screw connection
Stripping length
8 mm
Degree of protection
IP20
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
