Product Model

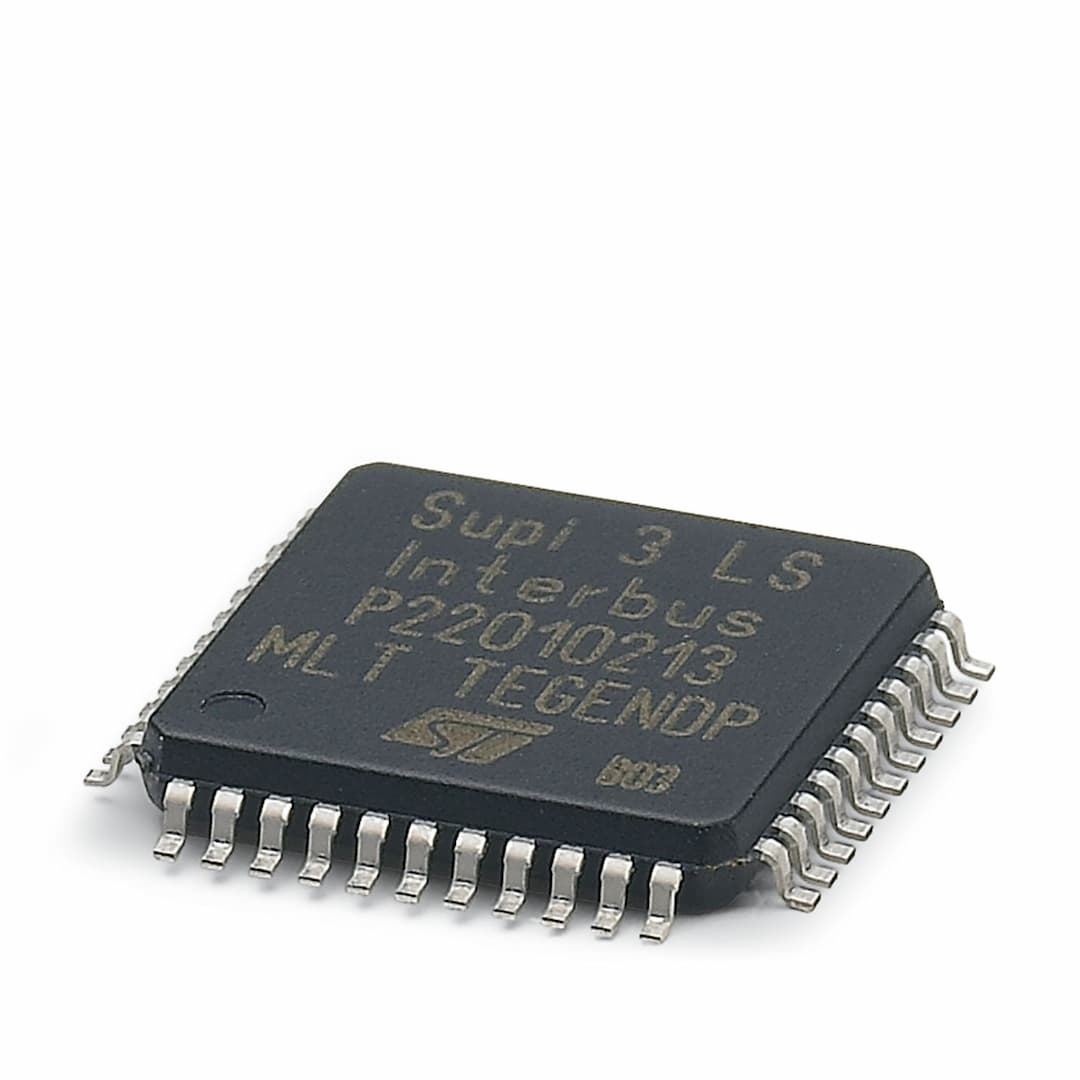

IBS SUPI 3 LS
Selling Points
- 1Advanced Digital I/O Interfaces: Supports MFP interface, digital I/O (2-8 IN/OUT, 16 IN/16OUT), SPI master interface, and serial microprocessor interface.
- 2Robust Ambient Temperature Operation: Operates from -40 °C to 85 °C with up to 75% humidity, ensuring reliable performance in harsh environments.
- 3Compact Design: Measuring 12 mm in width, depth, and length, making it suitable for space-constrained industrial applications.
- 4Low Power Consumption: Consumes only 40 mA without analog control, reducing power costs and heat generation.
- 5Compliance with EU and China RoHS: Meets EU RoHS and China RoHS standards, ensuring environmentally friendly use and compliance with regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Protocol chip |
Type | TQFP 44 | Internal data length | 32-bit internal, external expansion possible |
IC power supply voltage | 5 V DC ±10 % (DC) | Typical current consumption | 40 mA |
Connection method | Remote bus/local bus | Width | 12 mm |
Depth | 12 mm | Length | 12 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) |
Ambient temperature (storage/transport) | 5 °C ... 30 °C (at max. 60 %) |
Specifications may be subject to change without notice
