Product Model

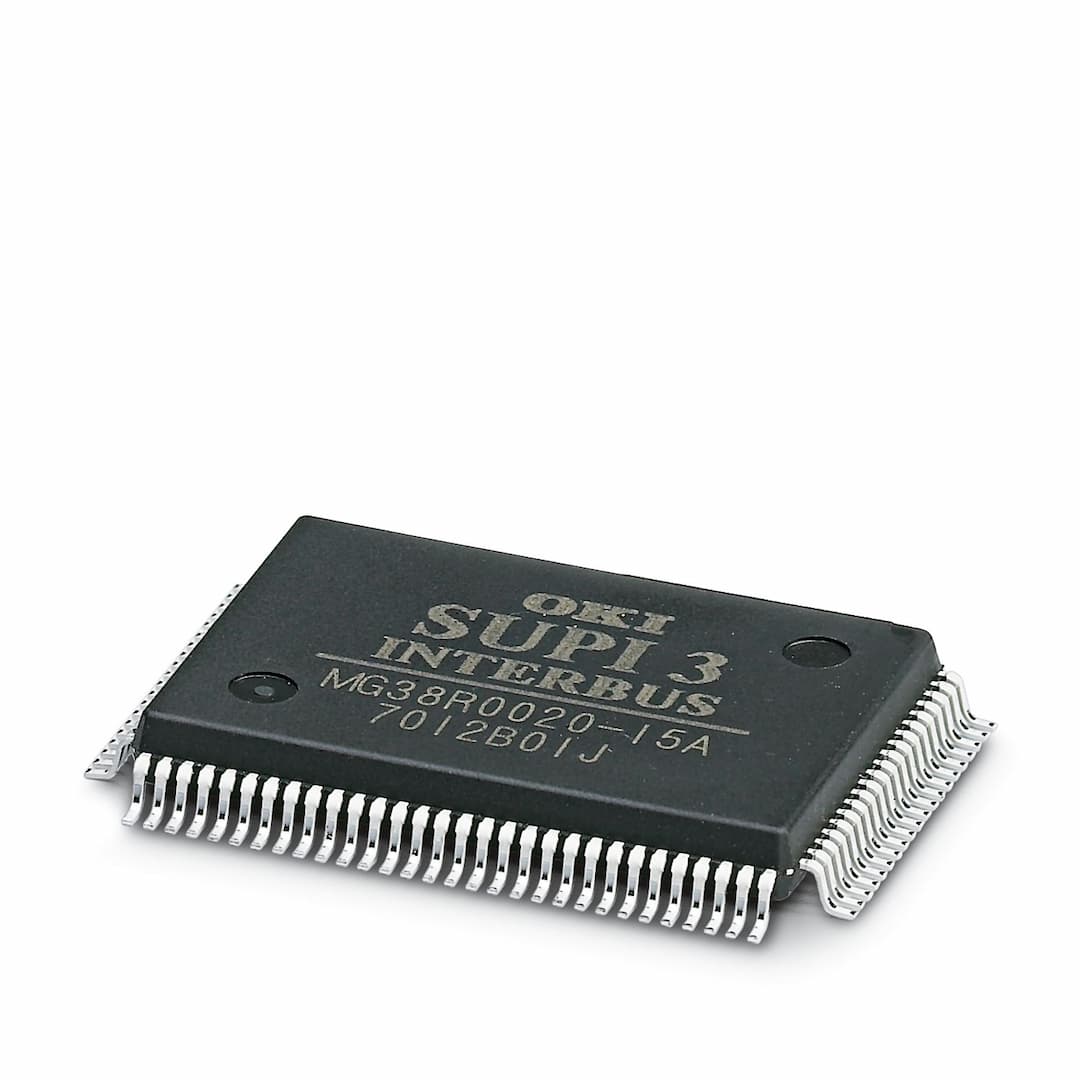

IBS SUPI 3 QFP
Selling Points
- 1High-Performance INTERBUS Slave Protocol: Optimized for reliable data transmission in industrial automation.
- 2Compact QFP 100 Package: Small footprint with dimensions of 14 mm x 3.4 mm x 20 mm.
- 3Wide Operating Temperature Range: Operates from -40°C to 85°C with up to 75% humidity.
- 4Flexible Interface Options: Supports MFP interface, digital I/O, and SPI master interface.
- 5Environmentally Friendly: Compliant with China RoHS and has an unlimited environmentally friendly use period (EFUP-e).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Protocol chip |
Type | QFP 100 (PLCC 84 has been discontinued!) | Internal data length | 8 bytes internally, external expansion is possible up to 64 bytes |
Protocol chip | IBS SUPI 3 QFP | IC power supply voltage | 5 V DC ±10 % (DC) |
Typical current consumption | 20 mA | User interface | MFP interface, digital I/O (8 IN/8 OUT, 16 IN/16 OUT), parallel port for microprocessor |
Connection method | Remote bus, local bus or installation remote bus | Width | 14 mm |
Height | 3.4 mm | Depth | 20 mm |
Length | 20 mm | Degree of protection | IP00 |
Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) | Ambient temperature (storage/transport) | 5 °C ... 30 °C (at max. 60 %) |
Specifications may be subject to change without notice
