Product Model

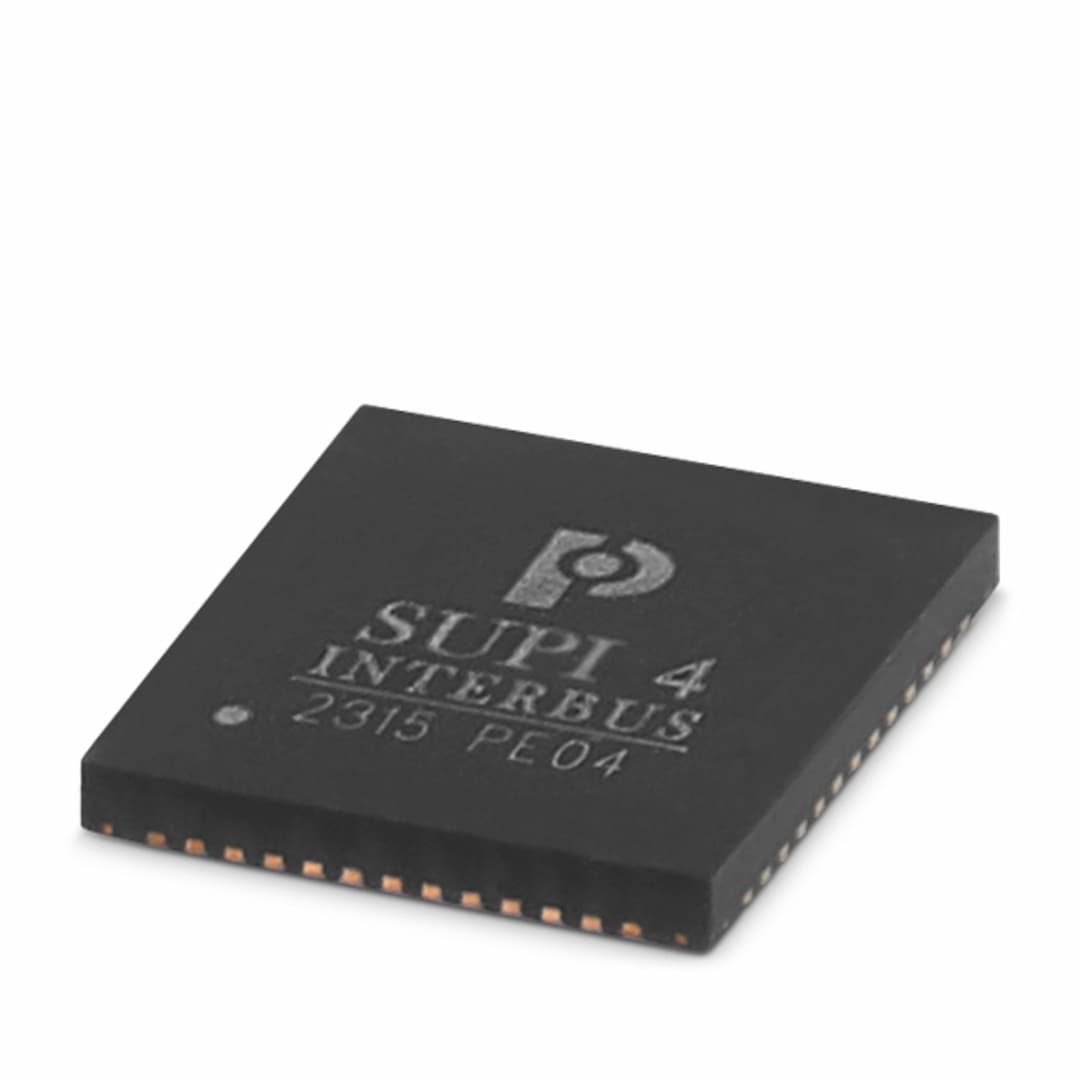

IBS SUPI 4 QFN
Selling Points
- 1High-Performance Interface: The IBS SUPI 4 QFN provides a reliable and efficient interface solution for industrial automation.
- 2Robust Technical Specifications: Designed to operate in a wide temperature range (-65°C to 150°C) and humidity conditions.
- 3Compact Design: Packaged in a QFN 52-pin package with a copper block for enhanced thermal management.
- 4Versatile Connectivity: Supports remote bus, local bus, and installation remote bus connections for flexibility in system integration.
- 5Low Power Consumption: Consumes only 20 mA of current, making it energy-efficient for continuous operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Protocol chip |
Type | QFN 52 (with copper block) | Internal data length | 64 bytes IN/64 bytes OUT |
IC power supply voltage | 3.3 V DC ±10 % (DC) | Typical current consumption | 20 mA |
User interface | MFP interface, digital I/O (16 IN/16 OUT, 32 IN, 32 OUT), parallel and serial port for microprocessors | Connection method | Remote bus, local bus or installation remote bus |
Width | 8 mm | Height | 0.9 mm |
Depth | 8 mm | Length | 8 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) |
Ambient temperature (storage/transport) | -65 °C ... 150 °C (at max. 60 %) |
Specifications may be subject to change without notice
