Product Model

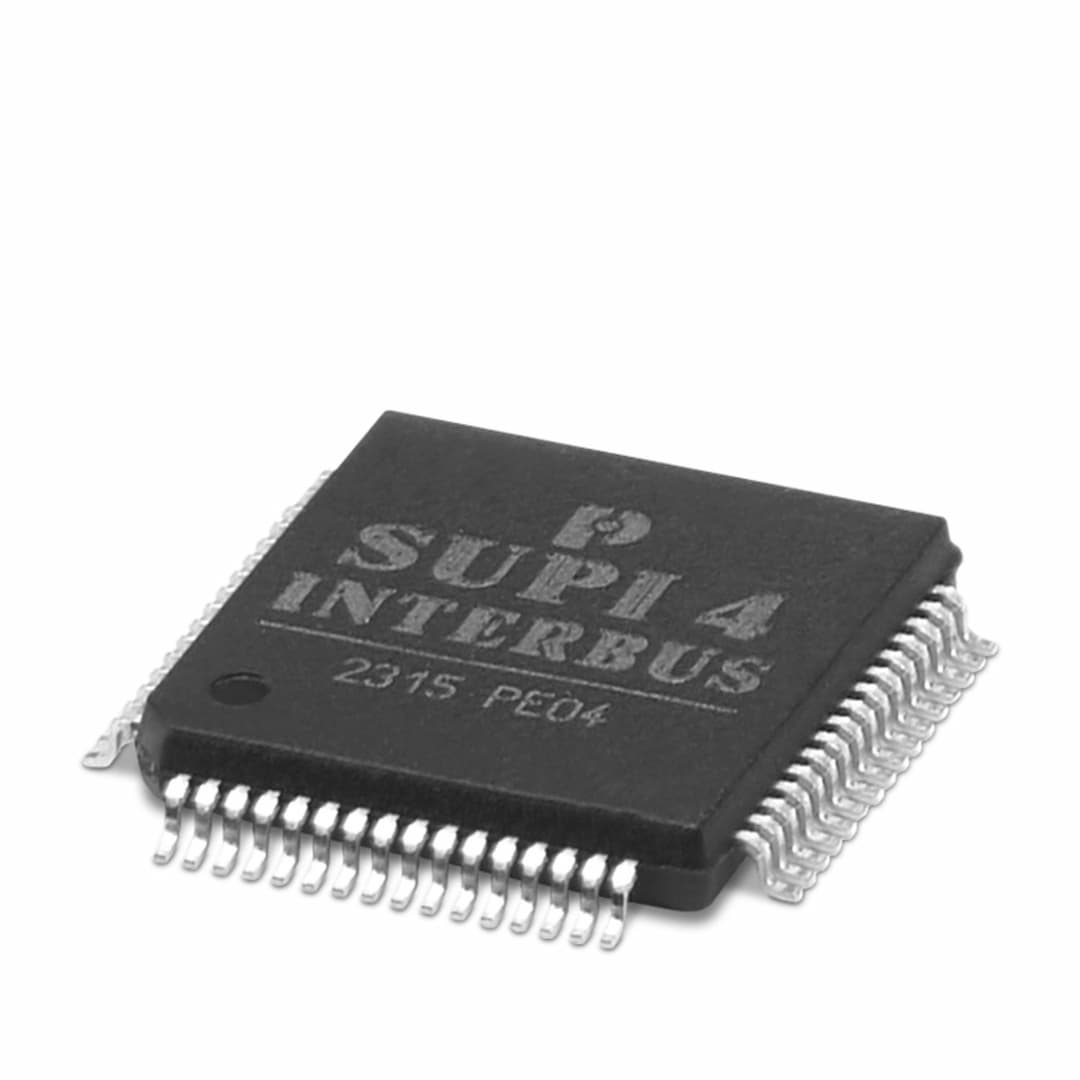

IBS SUPI 4 TQFP
Selling Points
- 1Designed for INTERBUS applications, ensuring reliable and efficient data transfer.
- 2Supports extensive data exchange capabilities, making it suitable for complex systems.
- 3Operates on a stable 3.3V DC power supply, reducing power consumption and increasing reliability.
- 4Energy-efficient design with a low current consumption of 20mA, ideal for battery-powered devices.
- 5Operates within a wide ambient temperature range of -65°C to 150°C, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Protocol chip |
Type | TQFP 64 | Internal data length | 64 bytes IN/64 bytes OUT |
IC power supply voltage | 3.3 V DC ±10 % (DC) | Typical current consumption | 20 mA |
User interface | MFP interface, digital I/O (16 IN/16 OUT, 32 IN, 32 OUT), parallel and serial port for microprocessors | Connection method | Remote bus, local bus or installation remote bus |
Width | 10 mm | Height | 1 mm |
Depth | 10 mm | Length | 10 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) |
Ambient temperature (storage/transport) | -65 °C ... 150 °C (at max. 60 %) |
Specifications may be subject to change without notice
