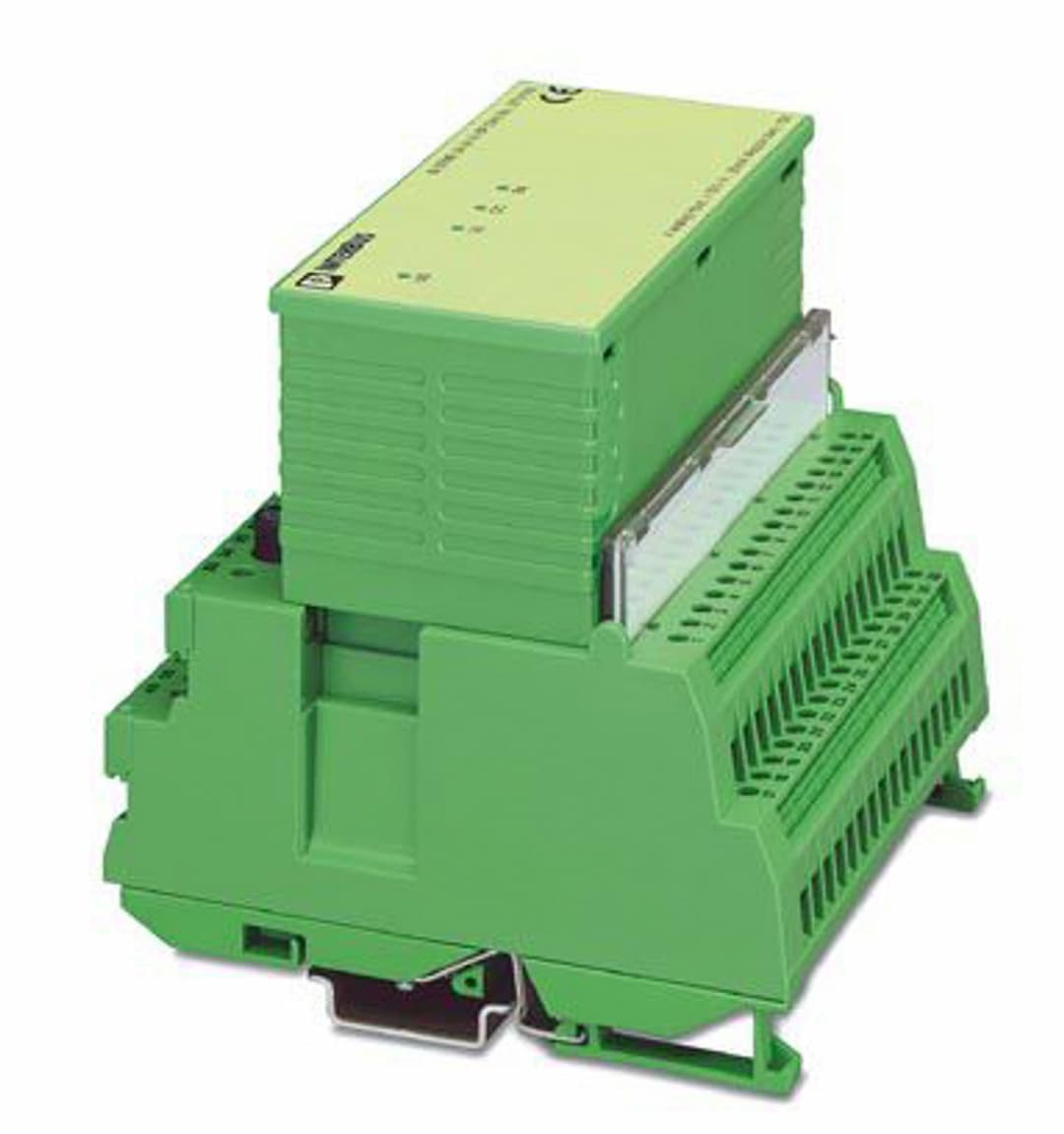

Product Model
IB ST 24 AI 4/BP
Selling Points
- 1Connect voltage or current signals with high precision.
- 2Ensure fast data transfer in industrial applications.
- 3Easy installation on standard DIN rails for space-saving solutions.
- 4Meets stringent electromagnetic compatibility standards for reliable operation.
- 5Ideal for space-constrained industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 118 mm | Height | 117 mm |
Length | 116 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Color | green | Connection method | ST local bus connector |
Transmission speed | 500 kbps | Transmission physics | Copper |
Product type | I/O component | Product family | Smart Terminal ST |
Type | modular
INTERBUS Smart Terminal | No. of channels | 4 |
Maximum power dissipation for nominal condition | 1.56 W | Test section | Bus/Inputs 500 V AC 50 Hz 1 min
Supply voltage/inputs 500 V AC 50 Hz 1 min
Supply voltage/Ground conductor 500 V AC 50 Hz 1 min
I/O voltage/Ground conductor 500 V AC 50 Hz 1 min |
Communications power U | 9 V DC (from the ST local bus) | I/O voltage | ± 24 V DC 5 % (ripple) |
I/O voltage range | 18.5 V DC ... 30.2 V DC | Max. current consumption | 125 mA (without passive sensors) |
Typical current consumption | 65 mA (without passive sensors) | Connection name | Terminal block |
Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 8 mm | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 8 mm |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
