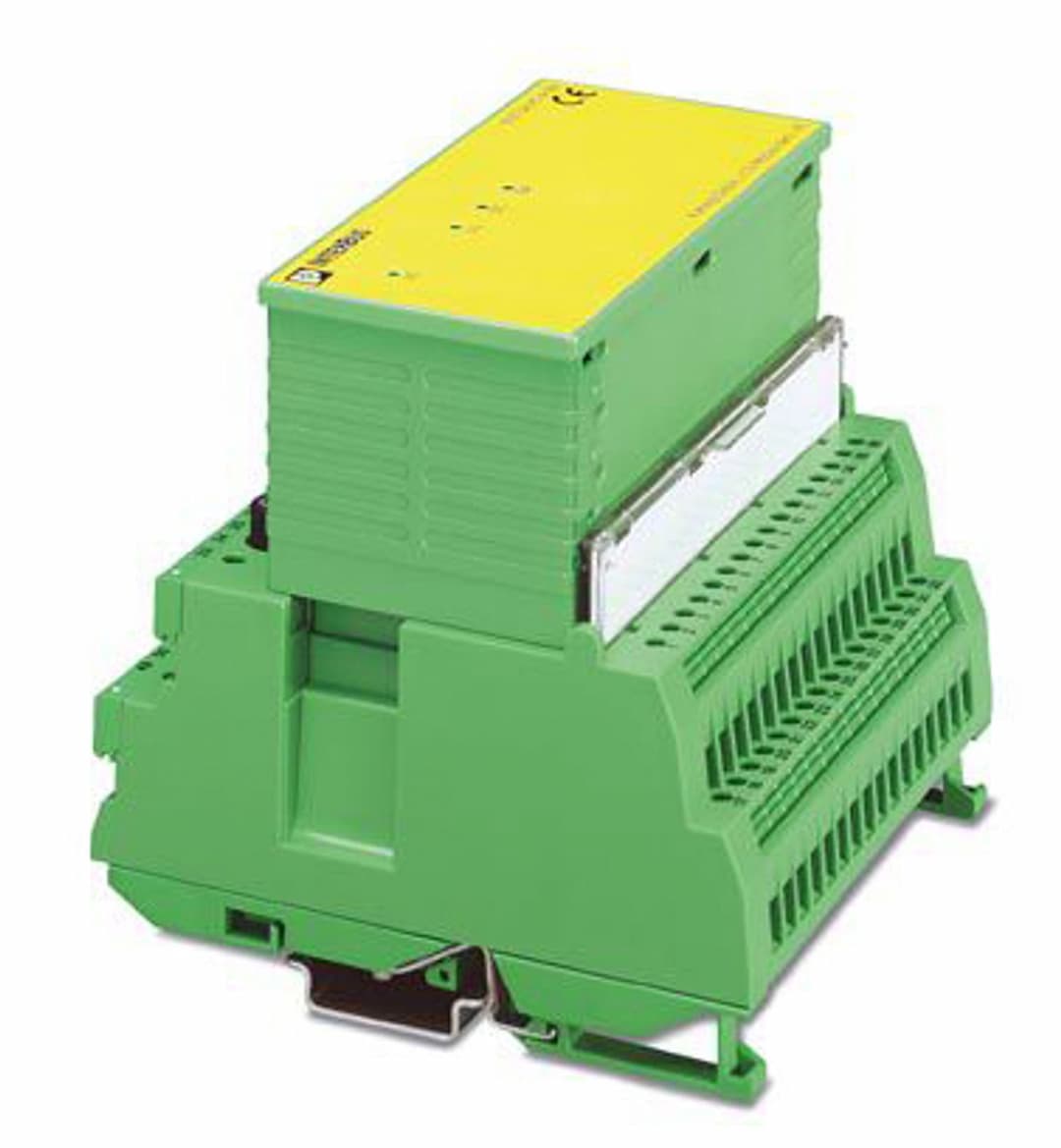

Phoenix Contact IB ST 24 BAO 8/U-8B I/O Module

Selling Points

1High-Resolution Analog Outputs: 8-channel analog output module with 13-bit D/A resolution.
2Compact Design: Dimensions: 118 mm x 117 mm x 116 mm for easy integration.
3Reliable Connectivity: Screw connection technology ensures secure and durable connections.
4Industrial-Grade Protection: IP20 degree of protection for harsh industrial environments.
5Versatile Applications: Ideal for applications requiring precise analog output control, such as temperature measurement and standard signal types.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	118 mm	Height	117 mm
Length	116 mm	EMC note	EMC: class A product, see manufacturer's declaration in the download area
Connection method	ST local bus connector	Transmission speed	500 kbps
Product type	I/O component	Product family	Smart Terminal ST
Type	modular INTERBUS Smart Terminal	No. of channels	8
Maximum power dissipation for nominal condition	3.6 W	Test section	Bus/Outputs 500 V AC 50 Hz 1 min Supply voltage/Outputs 500 V AC 50 Hz 1 min Supply voltage/Ground conductor 500 V AC 50 Hz 1 min I/O voltage/Ground conductor 500 V AC 50 Hz 1 min
Communications power U	9 V DC (from the ST local bus)	I/O voltage	± 24 V DC 5 % (ripple)
I/O voltage range	18.5 V DC ... 30.2 V DC	Typical current consumption	150 mA (at Us)
Connection method	Screw connection	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12
Stripping length	8 mm	Connection method	Screw connection
Conductor cross section, rigid	0.2 mm² ... 2.5 mm²	Conductor cross section, flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Stripping length	8 mm
Degree of protection	IP20	Mounting type	DIN rail mounting

Specifications may be subject to change without notice
