Product Model

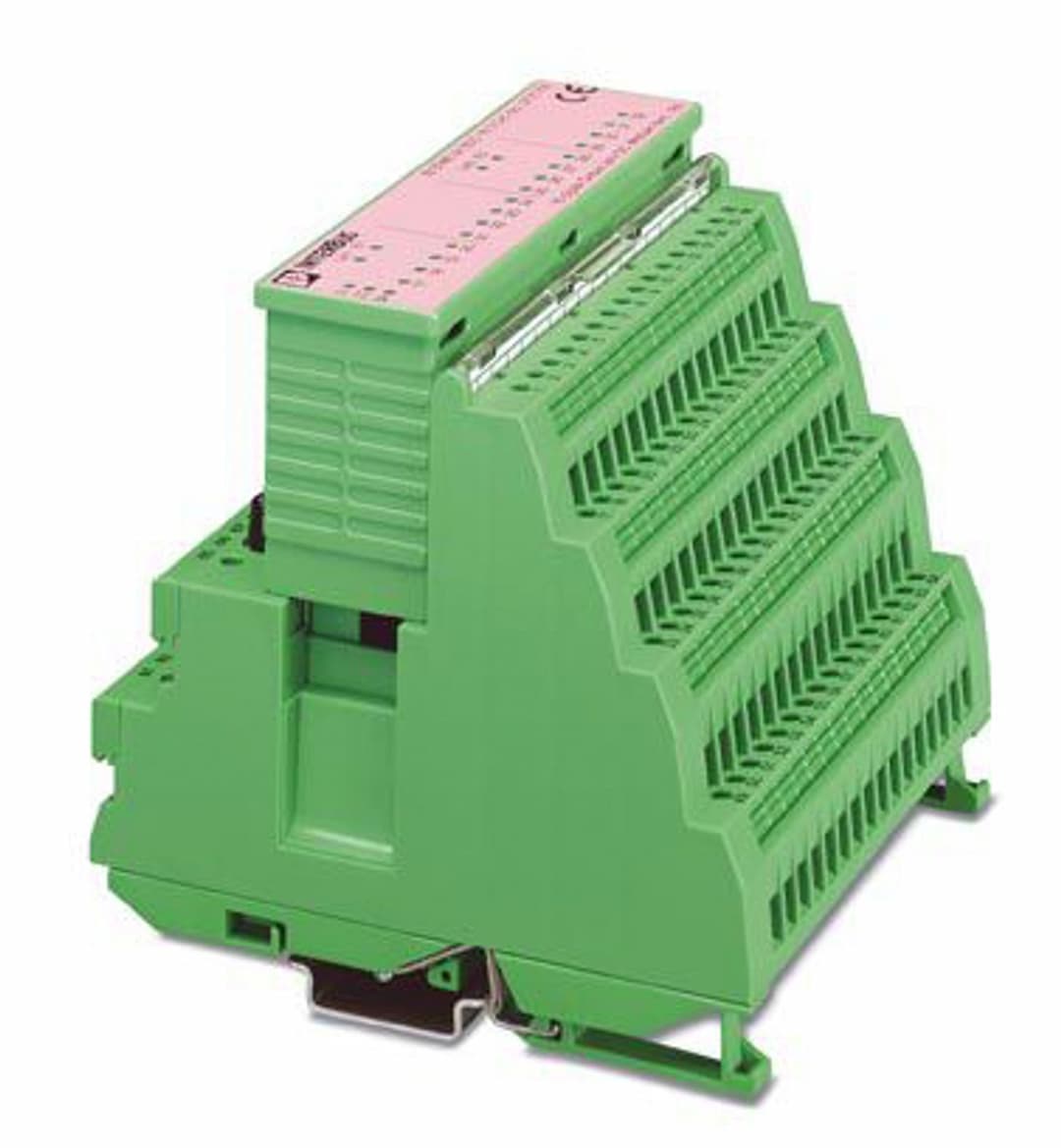

IB ST 24 BDO 16/3-500
Selling Points
- 1High Performance: 16 digital outputs with 24 V DC and 500 mA.
- 2Durable Design: IP20 degree of protection for reliable operation in various environments.
- 3Easy Installation: 3-conductor connection technology for straightforward setup.
- 4Industrial Compatibility: Designed for use in industrial settings with high current requirements.
- 5Versatile Connectivity: Suitable for a wide range of applications with its robust output capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 118 mm | Height | 117 mm |
Length | 116 mm | Connection method | INTERBUS-ST local bus |
Transmission speed | 500 kbps | Number of outputs | 16 |
Output voltage | U | Protective circuit | Short-circuit protection of outputs; Electronic, in groups of four outputs |
Product type | I/O component | Product family | Inline |
Type | modular | Communications power U | 9 V DC (from the ST local bus) |
I/O voltage | 24 V DC | I/O voltage range | 20 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Typical current consumption | 100 mA (from the ST local bus) |
Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
