Product Model

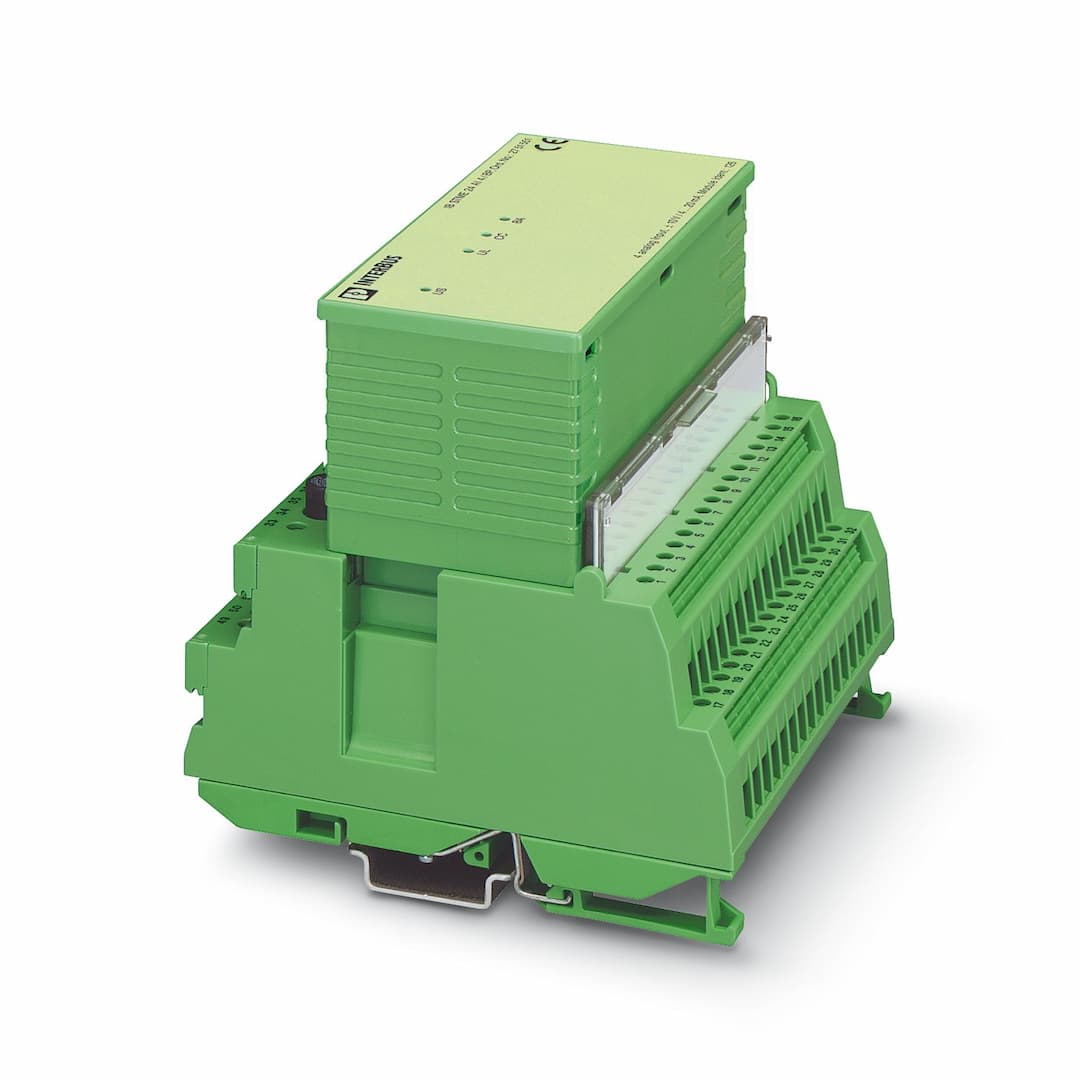

IB ST 24 PT100 4/4
Selling Points
- 1High-precision RTD inputs: The IB ST 24 PT100 4/4 features 4 high-precision RTD (Resistance Temperature Detector) inputs for accurate temperature measurements.
- 2Robust EMC shielding: Equipped with a new shielding concept for sensors, this module meets severe EMC (Electromagnetic Compatibility) requirements, ensuring reliable performance in noisy environments.
- 3IP20 protection: Designed with IP20 degree of protection, this module is suitable for use in various industrial settings where dust and water protection are necessary.
- 4Compact design: The module's compact size makes it easy to integrate into existing systems, saving space and enhancing overall system efficiency.
- 53-year warranty: Backed by a 3-year warranty from Phoenix Contact, providing peace of mind and ensuring long-term reliability for your industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 118 mm | Height | 117 mm |
Length | 116 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Connection method | ST local bus connector | Transmission speed | 500 kbps |
Transmission length | 116 mm | Product type | I/O component |
Product family | Smart Terminal ST | Type | modular
INTERBUS Smart Terminal |
No. of channels | 4 | Test section | Bus/Inputs 500 V AC 50 Hz 1 min
Supply voltage/inputs 500 V AC 50 Hz 1 min
Supply voltage/Ground conductor 500 V AC 50 Hz 1 min
I/O voltage/Ground conductor 500 V AC 50 Hz 1 min |
Communications power U | 9 V DC (from the ST local bus) | I/O voltage | 24 V DC |
I/O voltage range | 18.5 V DC ... 30.2 V DC | Residual ripple | ± 1.2 V DC |
Max. current consumption | 100 mA (from the ST local bus)
85 mA (to U | Typical current consumption | 85 mA (from the ST local bus)
50 mA (to U |
Connection name | Terminal block | Connection method | Screw connection |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 8 mm |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 8 mm | Degree of protection | IP20 |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
