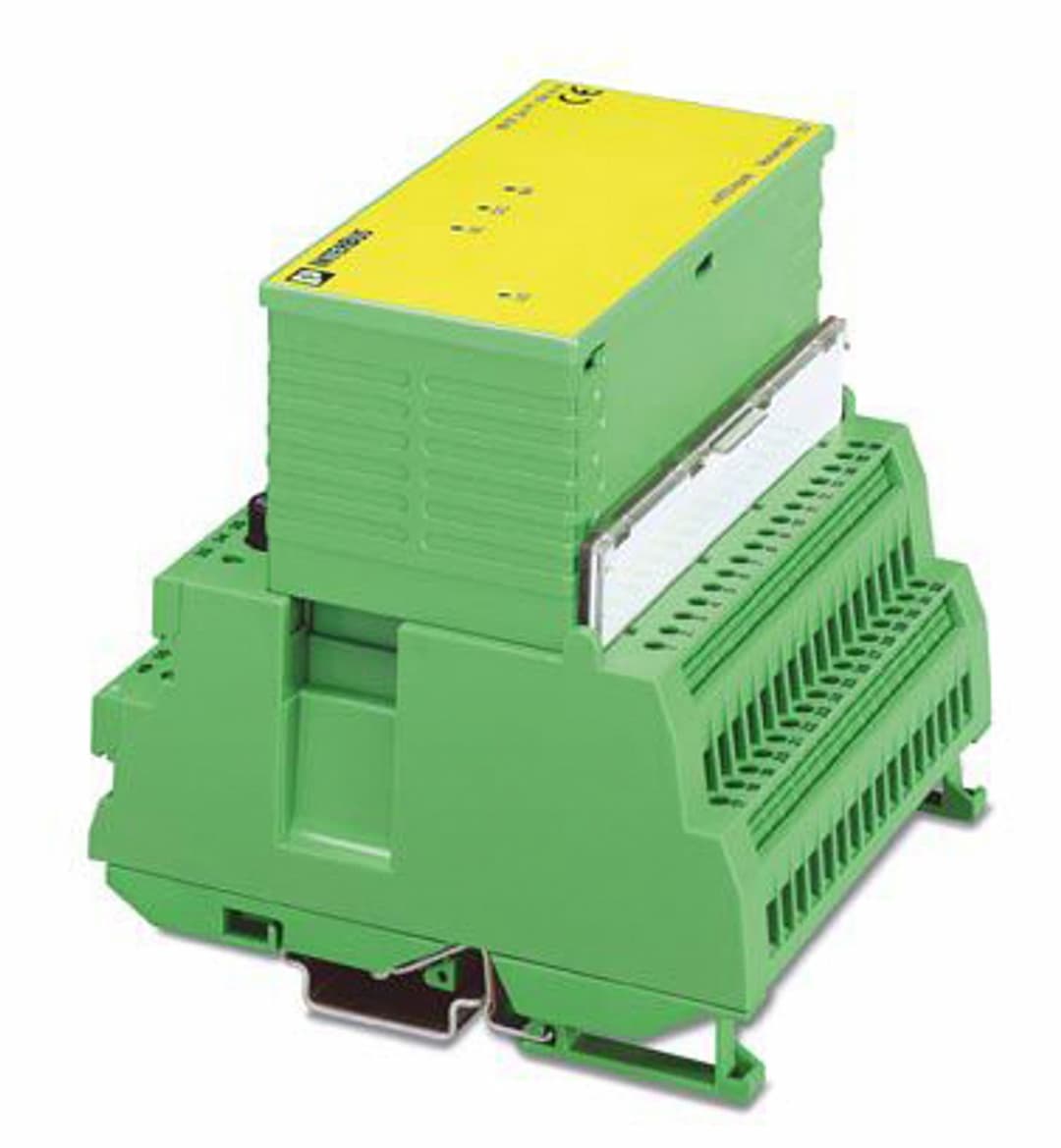

Phoenix Contact IB ST 24 UTH 8 - Reliable Analog Input Module

Selling Points

1High-Performance Analog Input Module: The IB ST 24 UTH 8 offers 8 analog inputs for precise data collection in industrial settings.
2Durable Design: Built with IP20 protection, ensuring reliable operation in harsh environments.
3Easy Installation: Features a terminal part with screw connection for straightforward integration.
4Versatile Connectivity: Supports 2-conductor connection, suitable for various industrial configurations.
5Comprehensive Compatibility: Compatible with INTERBUS-ST systems, enhancing system integration capabilities.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	118 mm	Height	117 mm
Length	116 mm	Connection method	ST local bus connector
Transmission speed	500 kbps	Transmission length	116 mm
Product type	I/O component	Product family	Smart Terminal ST
Type	modular	No. of channels	8
Test section	Bus/Inputs 500 V AC 50 Hz 1 min Supply voltage/inputs 500 V AC 50 Hz 1 min Supply voltage/Ground conductor 500 V AC 50 Hz 1 min I/O voltage/Ground conductor 500 V AC 50 Hz 1 min	Communications power U	9 V DC (from the ST local bus)
I/O voltage	24 V DC	I/O voltage range	18.5 V DC ... 30.2 V DC
Residual ripple	± 1.2 V DC	Max. current consumption	135 mA (from the ST local bus) 85 mA (to U
Typical current consumption	110 mA (from the ST local bus) 35 mA (to U	Connection name	Terminal block
Connection method	Screw connection	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12
Connection method	Screw connection	Conductor cross section, rigid	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12
Degree of protection	IP20	Mounting type	DIN rail mounting

Specifications may be subject to change without notice
